Sony KLV-26M400A - EXPLODED VIEWS AND PARTS LISTS; Rear Cover Assembly and Stand Assembly

KLV-26M400A/32M400A/37M400A/40M400A
KLV-26M400A/32M400A/37M400A/40M400A
53
Components not identifi ed by a part number or
description are not stocked because they are seldom
required for routine service.
The component parts of an assembly are indicated by the
reference numbers in the far right column of the parts list
and within the dotted lines of the diagram.
*
Items marked with an asterisk are not stocked since
they are seldom required for routine service. Expect
some delay when ordering these components.
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.

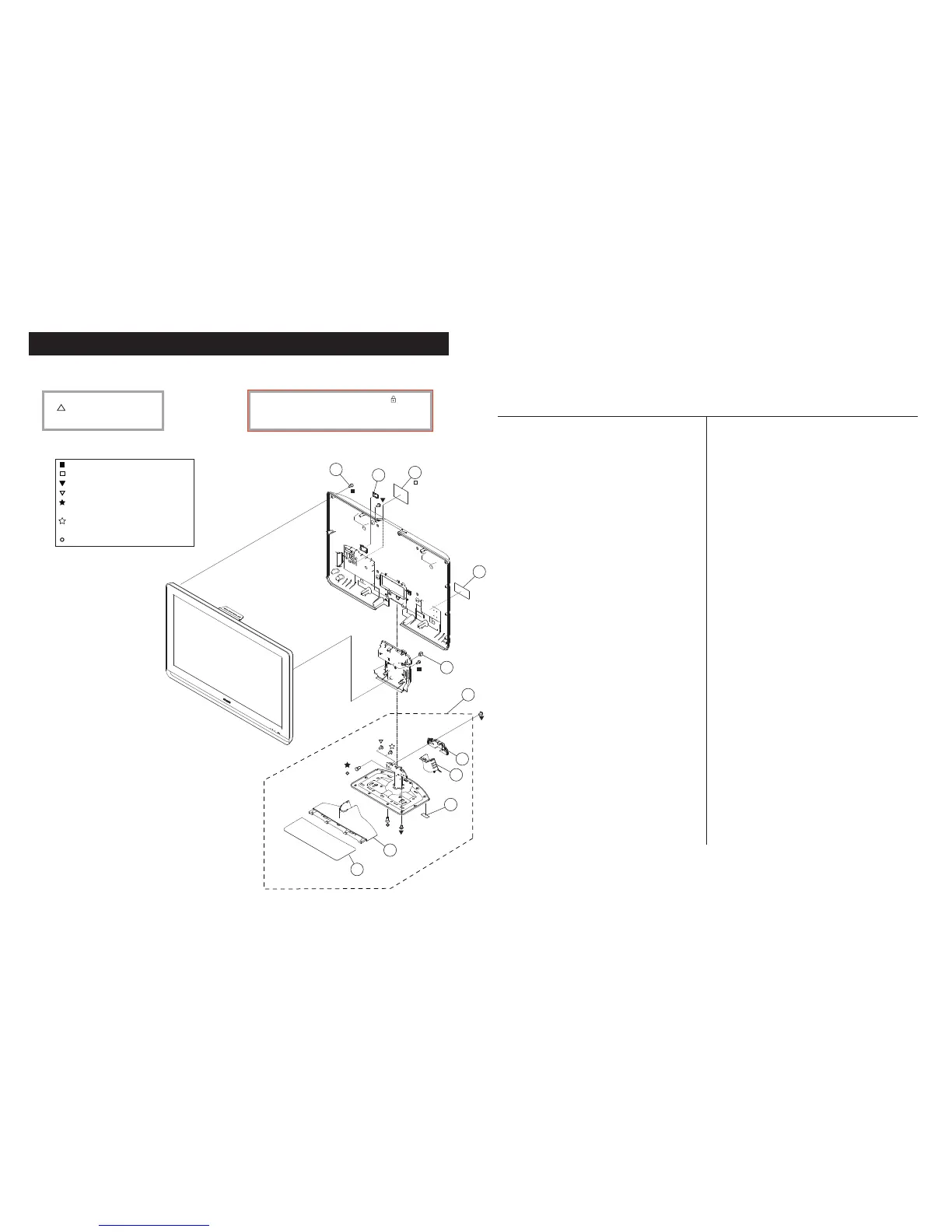

SECTION 4: EXPLODED VIEWS
1 3-286-797-01 COVER, REAR (26)
(KLV-26M400A ONLY)
1 3-286-794-21 COVER, REAR (32)
(KLV-32M400A ONLY)
1 3-286-791-11 COVER, REAR (37)
(KLV-37M400A ONLY)
1 3-286-788-21 COVER, REAR (40)
(KLV-40M400A ONLY)
2 3-196-465-11 COVER, ECS
3 3-295-629-11 LABEL, TERMINAL REAR
* 4 3-874-508-01 LABEL, INFORMATION
(KLV-26M400A ONLY)
* 4 3-874-509-01 LABEL, INFORMATION
(KLV-32M400A ONLY)
* 4 3-874-510-01 LABEL, INFORMATION
(KLV-37M400A ONLY)
* 4 3-874-511-01 LABEL, INFORMATION
(KLV-40M400A ONLY)
4-1. REAR COVER ASSEMBLY AND STAND ASSEMBLY
2-580-640-01 SCREW, +BVTP2 4X16
7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
2-580-608-01 SCREW, +PSW M5X16
2-580-607-01 SCREW, +PSW M5X12
2-580-614-01 SCREW, +K M3X8
(KLV-26M400A/32M400A ONLY)
2-580-602-01 SCREW, +PSW M4X12
(KLV-37M400A/40M400A ONLY)
2-580-644-01 SCREW, +KTP2 3X8
5 4-022-115-00 HOLDER, AC CORD
6 A-1512-640-A STAND ASSEMBLY (M-2) [7-11]
(KLV-26M400A/32M400A ONLY)
6 A-1511-500-A STAND ASSEMBLY(ML-2) [7-11]
(KLV-37M400A/40M400A ONLY)
7 3-290-889-02 COVER, EDGE (M)
(KLV-26M400A/32M400A ONLY)
7 3-290-812-01 COVER, EDGE (L/ML)
(KLV-37M400A/40M400A ONLY)
8 3-290-888-01 COVER, USER (M)
(KLV-26M400A/32M400A ONLY)
8 3-290-811-02 COVER, USER (ML)
(KLV-37M400A/40M400A ONLY)
9 3-295-631-01 FOOT (15X20)
10 3-297-689-01 COVER, NECK (M)
(KLV-26M400A/32M400A ONLY)
10 3-297-691-01 COVER, NECK (ML)
(KLV-37M400A/40M400A ONLY)
11 3-294-305-01 COVER, STAND (M-2)
(KLV-26M400A/32M400A ONLY)
11 3-294-306-01 COVER, STAND (ML-2)
(KLV-37M400A/40M400A ONLY)
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
1
2
3
4
7
8
10
11
6
5
9
(37/40)
(26/32)
