KLV-26M400A/32M400A/37M400A/40M400A
KLV-26M400A/32M400A/37M400A/40M400A
56
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.

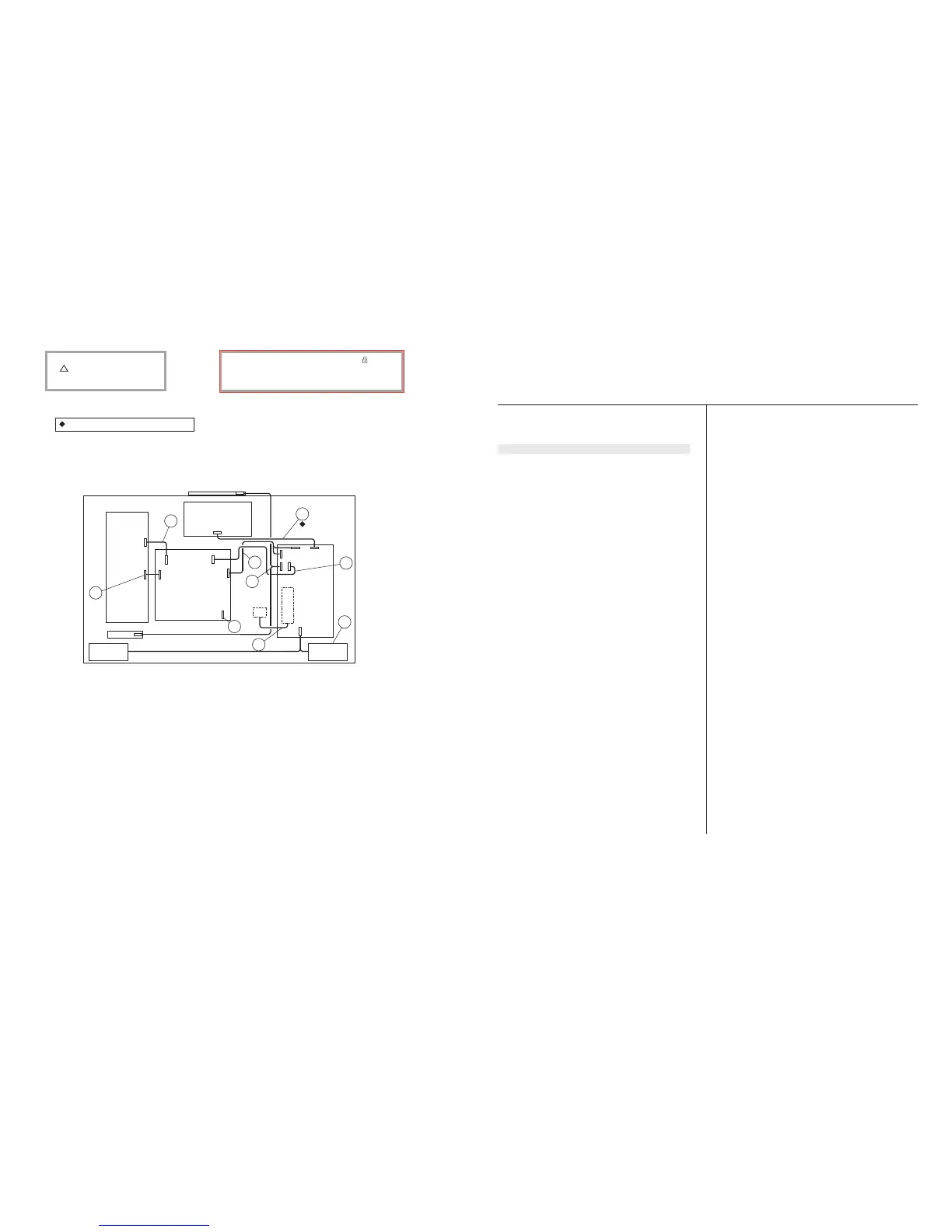

4-4. CONNECTORS (KLV-40M400A ONLY)
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
121
128
129
123
124
122
125
127
126
INV
IP5Z
T-CON
HM4
SPSP
BG2A
3008
4001
4003
4500
4002
CN2000
CN6154
CN6705
CN6701
CN6150
CN101
CN301
BLOCK SWITCH
121 1-835-685-11 30P LVDS CABLE
122 1-910-044-89 CONN ASSEMBLY, 5P MM CRIMP 235
123 1-910-044-92 CONN ASSEMBLY, 4P SPEAKER FASTON
124 1-835-207-11 P-F CABLE
! 125 1-835-327-11 AC POWER CORD (WITH CONNECTOR)
126 1-910-044-88 CONN ASSEMBLY, 11P MM CRIMP 1050
127 1-910-045-09 CONN ASSEMBLY, 13P MM CRIMP 280
128 1-834-263-11 CONNECTOR ASSEMBLY
129 1-910-045-50 CONN ASSEMBLY, 7P MM CRIMP 240
2-580-628-01 SCREW, +BVST 3X6
To Next Page
