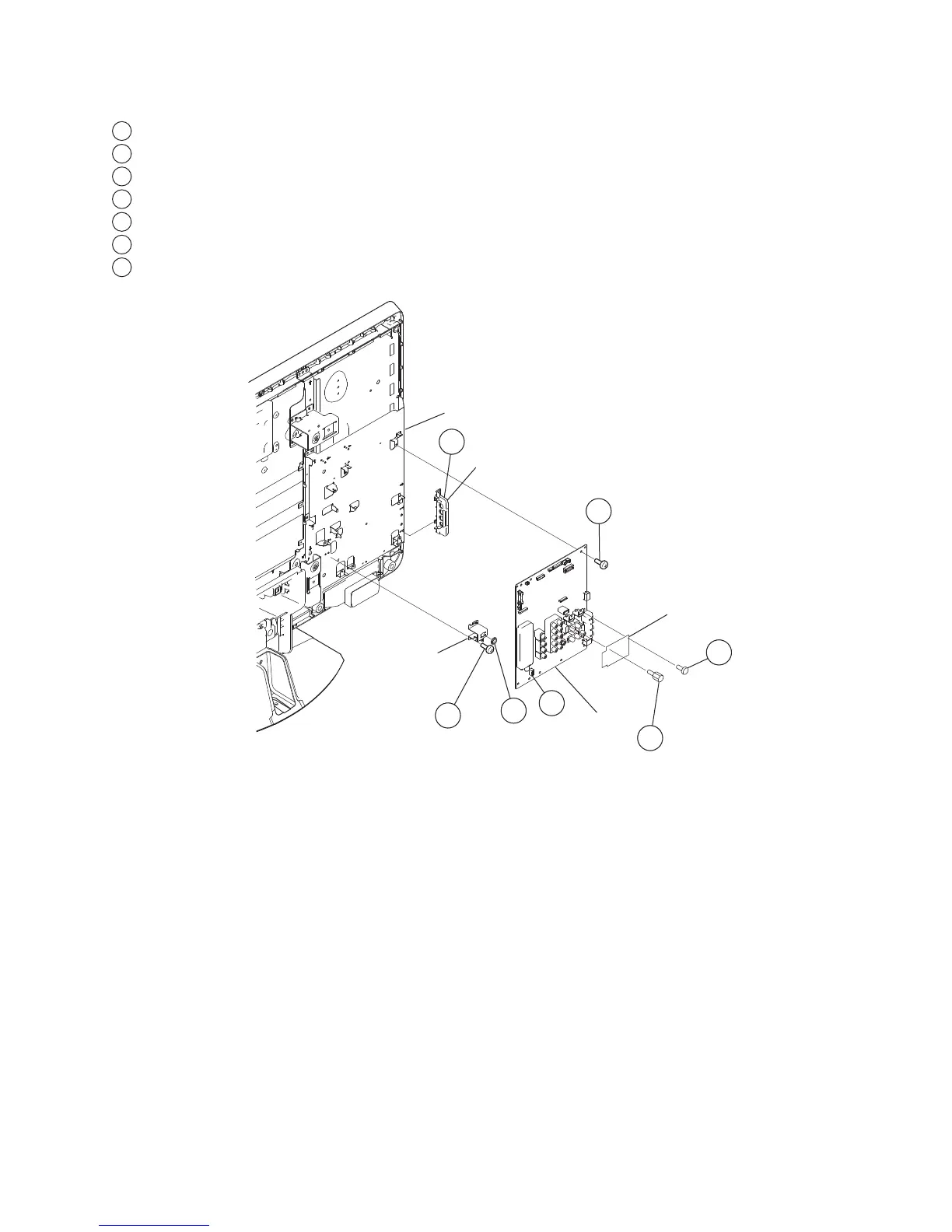

1-3. SIDE JACK BRACKET, BG2A BOARD AND RF BRACKET REMOVAL
1
Release hook and slide out Side Jack Bracket from BG2A Board
2
Remove 7 screws
3
Remove 2 screws
4
Remove 2 screws
5
Disconnect 5 connectors
6
Remove Hexagon Washer Nut from PF Cable
7
Remove 2 screws
Side Jack Bracket
BG2A Board
Shield
RF Bracket
Main Bracket
4
3
2
1
7
5
6
