KLV-26M400A/32M400A/37M400A/40M400A
KLV-26M400A/32M400A/37M400A/40M400A
54
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.

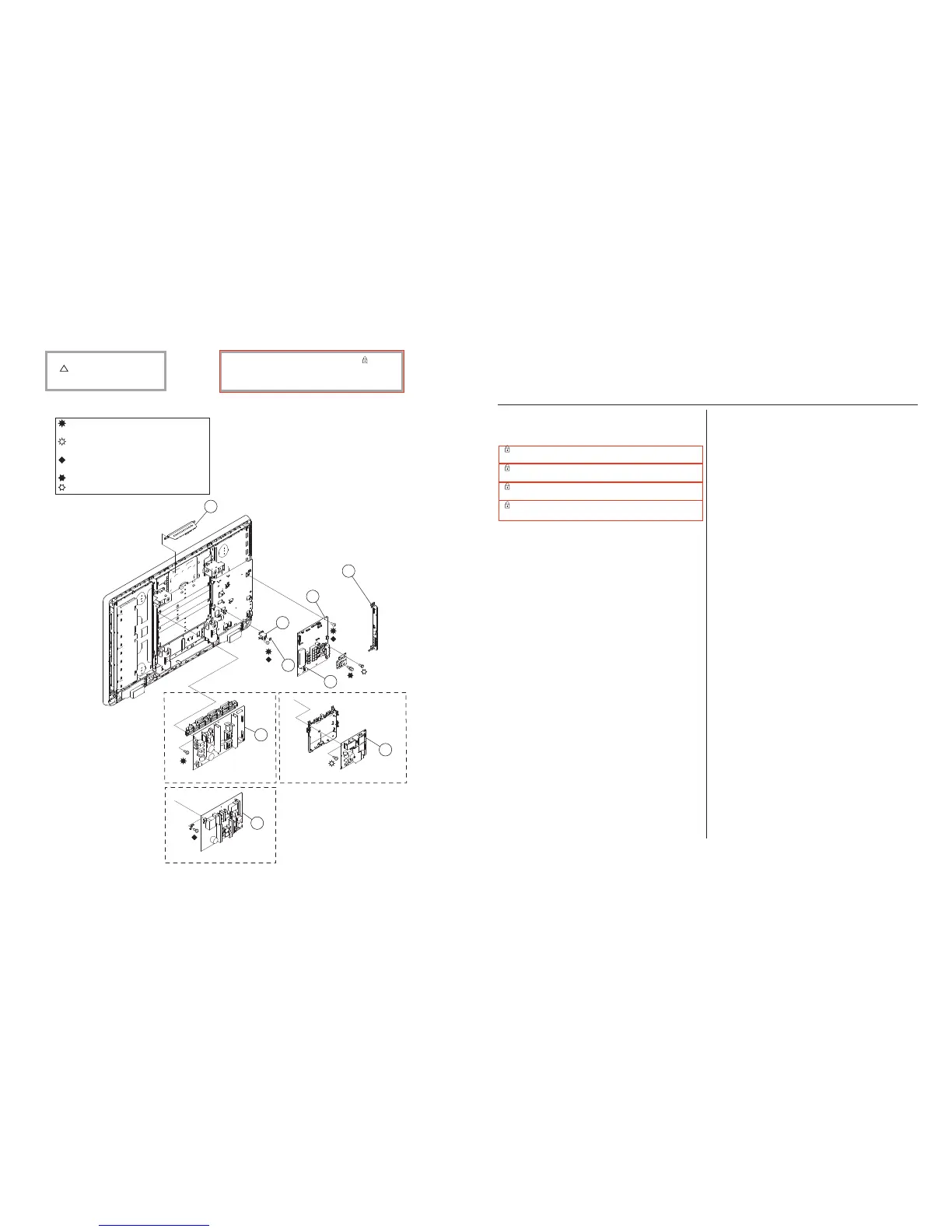

4-2. CHASSIS
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
51 1-480-693-11 SWITCH UNIT
(CONTAINS H1 BOARD)
52 3-286-813-01 BRACKET, SIDE JACK (D)
53 A-1556-841-A BG2A BOARD, MOUNTED
(KLV-26M400A ONLY)
53 A-1556-842-A BG2A BOARD, MOUNTED
(KLV-32M400A ONLY)
53 A-1556-843-A BG2A BOARD, MOUNTED
(KLV-37M400A ONLY)
53 A-1556-838-A BG2A BOARD, MOUNTED
(KLV-40M400A ONLY)
54 8-597-61-00 TUNER, FSS BTF CA411Z
* 55 3-286-966-01 BRACKET, RF
56 3-682-691-00 NUT, WASHER HEXAGON
57 1-474-096-11 G1D BOARD, (POWER UNIT)
(KLV-26M400A ONLY)
57 1-474-099-11 G1D BOARD, (POWER UNIT)
(KLV-32M400A ONLY)
57 1-474-095-12 G2D BOARD, (POWER UNIT)
(KLV-37M400A ONLY)
57 A-1493-910-D IP5Z-40A BOARD, COMPLETE
(KLV-40M400A ONLY)
2-580-629-01 SCREW, +BVST 3X8
(KLV-26M400A/32M400A/37M400A ONLY)
2-674-965-41 SCREW, +PSW 3SG
(KLV-26M400A/32M400A ONLY)
2-580-628-01 SCREW, +BVST 3X6
(KLV-40M400A ONLY)
2-580-626-01 SCREW, SP 4-4O UNC
2-580-591-01 SCREW, +PSW M3X5
52
53
56
54
55
57
KLV-26M400A/32M400AKLV-37M400A
57
57
KLV-40M400A
(26/32/37)
(40)
(26/32/37)
(40)
51
To Next Page
