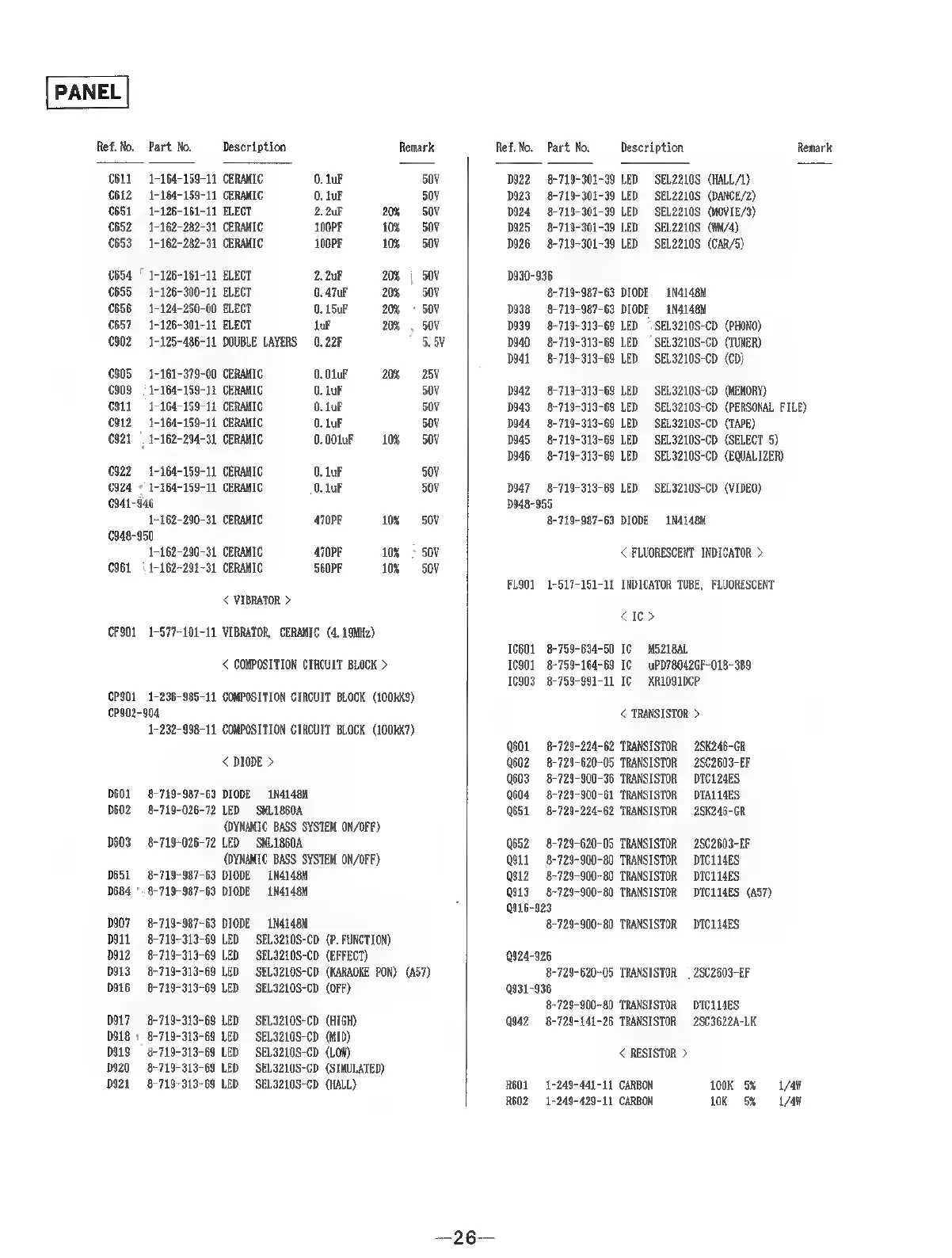

Sony LBT-A57CD - Page 19

PANEL
Ref.No. Part No. Description Remark Ref.No. Part No. Description Remark
C611 1-164-159-11 CERAMIC 0. 1uF 50V D922 8-719-301-39 LED SEL2210S (HALL/1)
C612 1-164-159-11 CERAMIC 0. 1uF 50V D923 8-719-301-39 LED SEL2210S (DANCE/2)
C651 1-126-161-11 ELECT 2. 2uF 20% = 50V D924 ~—8-719-301-39 LED SEL2210S (MOVIE/3)
C652 1-162-282-31 CERAMIC 100PF 10% «50V D925 8-719-301-39 LED SEL2210S (#M/4)
(653 1-162-282-31 CERAMIC 100PF 10% -50V D926 8-719-301-39 LED SEL2210S (CAR/5)
(654 = 1-126-161-11 ELECT 2. 2uF 208 = 50V 0930-936
C655 1-126-300-11 ELECT 0. 47uF 20% 50V 8-719-987-63 DIODE 1N4148M
C656 1-124-250-00 ELECT 0. 15uF 20% = «50V D938 8-719-987-63 DIODE 1N4148M
C657 1-126-301-11 ELECT luF 20% = «50V D939 8-719-313-69 LED — SEL3210S-CD (PHONO)
(902 1-125-486-11 DOUBLE LAYERS 0. 22F 5. 5V D940 8-719-313-69 LED SEL3210S-CD (TUNER)
D941 8-719-313-69 LED SEL3210S-CD (CD)
C905 1-161-379-00 CERAMIC 0. OluF 20% 25V
C903 = 1-164-159-11 CERAMIC 0. 1uF 50V D942 8-718-313-69 LED SEL3210S-CD (MEMORY)
C911 1-164-159-11 CERAMIC 0. 1uF 50V D943_--8-719-313-69 LED SEL3210S-CD (PERSONAL FILE)
C912 1-164-159-11 CERAMIC 0. 1uF 50V D944 8-719-313-69 LED SEL3210S~CD (TAPE)
(921 © 1-162-294-31 CERAMIC 0. 001uF 10% -50V D945 8-719-313-69 LED SEL3210S-CD (SELECT 5)
D946 8-719-313-69 LED SEL3210S-CD (EQUALIZER)
(922 1-164-159-11 CERAMIC 0. 1uF 50V
C924 «= 1-164-159-11 CERAMIC 0. 1uF 50V D947 8-719-313-69 LED SEL3210S-CD (VIDEO)
(941-946 948-955
1-162-290-31 CERAMIC 4T0PE 10% SOV 8-719-987-63 DIODE 1N4148M
948-950
1-162-290-31 CERAMIC A70PF 10% = -50V < FLUORESCENT INDICATOR >
(961 © 1-162-291-31 CERAMIC ‘S60PF 10% 50V
FL9O1 1-517-151-11 INDICATOR TUBE, FLUORESCENT
< VIBRATOR >
CF901 1-577-101-11 VIBRATOR, CERAMIC (4. 19MHz)
< COMPOSITION CIRCUIT BLOCK >
CP901 1-236-985-11 COMPOSITION CIRCUIT BLOCK (100kX3)
CP902-904
1-232-998-11 COMPOSITION CIRCUIT BLOCK (100KX7)
< DIODE >
D601 —8-719-987-63 DIODE 1N4148M
D602 8-719-026-72 LED SML1860A
(DYNAMIC BASS SYSTEM ON/OFF)
D603 8-719-026-72 LED SML1860A
(DYNAMIC BASS SYSTEM ON/OFF)
D651 8-719-987-63 DIODE 1N4148M
D684 = 8-719-987-63 DIODE 1N4148M
D907: 8-719-987-63 DIODE
D911 8-719-313-69 LED
D912 8-719-313-69 LED
D913 8-719-313-69 LED
D916 8-719-313-69 LED
1N4148M
SEL3210S-CD (P. FUNCTION)
SEL3210S-CD (EFFECT)
‘SEL3210S-CD (OFF)
D917 8-719-313-69 LED
D918 = 8-719-313-69 LED
D919 8-719-313-69 LED
D920 8-719-313-69 LED
D921 8-719-313-69 LED
SEL3210S-CD (HIGH)
SEL3210S-CD (MID)
SEL3210S-CD (LOW)
SEL3210S-CD (SIMULATED)
SEL3210S-CD (HALL)
‘SEL3210S-CD (KARAOKE PON) (A57)
10601 8-759-634-50 IC
10901 8-759-164-69 IC
10903 8-759-991-11 IC
Q601
602
603
604
Q651
Q652
QSi1
Qsi2
Q913
<Ie>
M5218AL
uPD78042GF-018-3B9
XR1091DCP
< TRANSISTOR >
8-729-224-62 TRANSISTOR
8-729-620-05 TRANSISTOR
8-729-900-36 TRANSISTOR
8-729-$00-61 TRANSISTOR
8-729-224-62 TRANSISTOR
2SK246-GR
28C2603-EF
DTC124ES.
DTA114ES
2SK246-GR.
8-729-620-05 TRANSISTOR
8-729-900-80 TRANSISTOR
8-729-900-80 TRANSISTOR
8-729-900-80 TRANSISTOR
28C2603-EF
DICI14ES
DIC114ES
DTCL14ES (A57)
Q916-923
8-729-900-80 TRANSISTOR DIC114ES
924-926
8-729-620-05 TRANSISTOR — 2S¢2603-EF
Q931-936
Q942
R601
R602
—26—
8-729-900-80 TRANSISTOR
8-729-141-26 TRANSISTOR
DTC114ES
2S03622A-LK
< RESISTOR >
1-249-441-11 CARBON 100K 5% (1/4
1-249-429-11 CARBON 10K 5% 1/40
