Sony LBT-A57CD - Section 5 Exploded Views (CDP-M43;M54); 5-1 Cabinet Section

NOTE:
©-XX, -X mean standardized parts, so
they may have some differences from
the original one.
© The construction parts of an assembled
part are indicated with a collation
number in the remark column.
Color indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE)... (RED)
Parts color

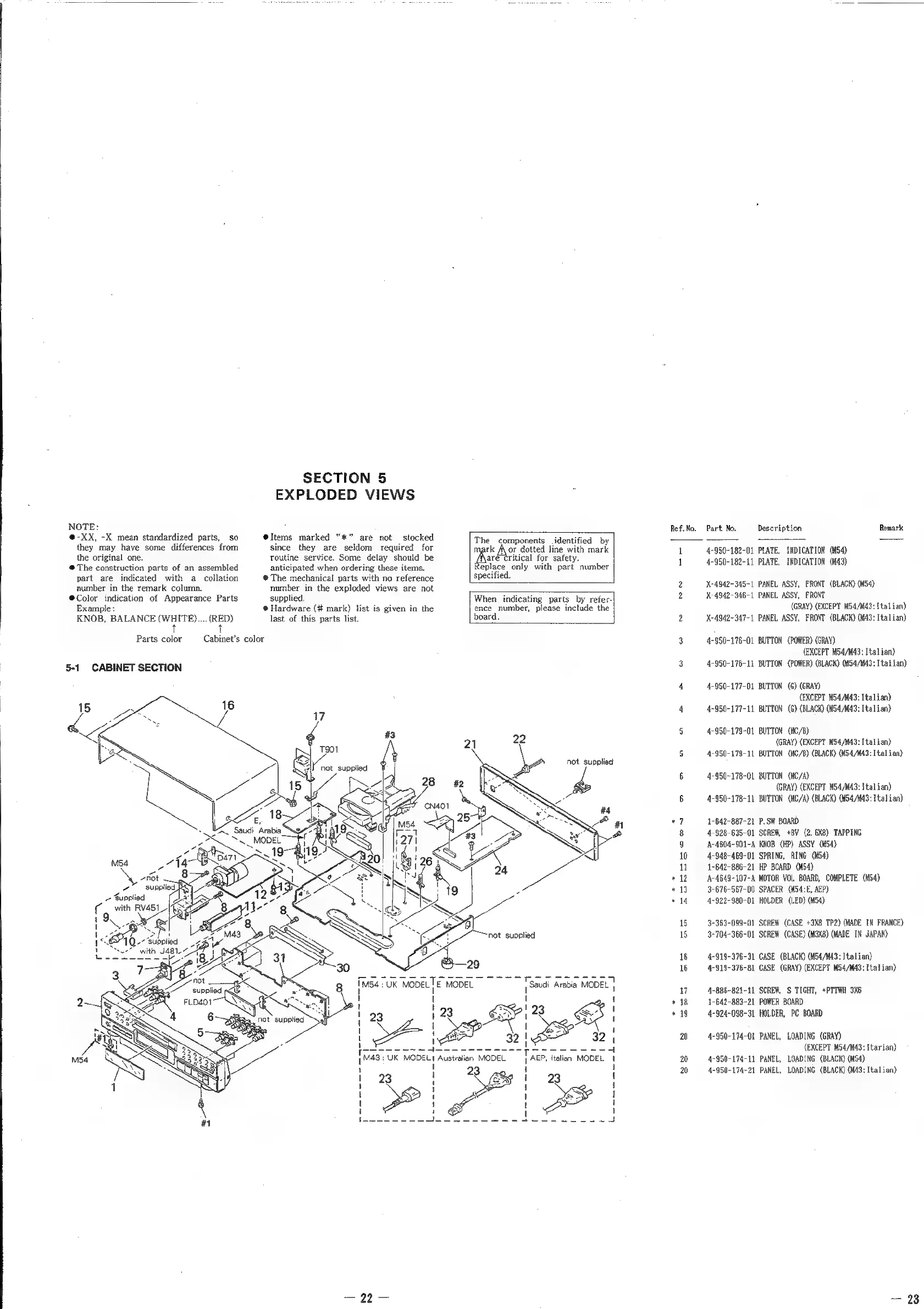

5-1 CABINET SECTION
7 Supplied
f with RV451
\ we
1 Si Sai
1<°10--subolien
1 -‘supplied 7.
L with J481-7 Ave
bal
ied =
Go ae
not supplied
SECTION 5
EXPLODED VIEWS
@ltems marked “*” are not stocked
since they are seldom required for
routine service. Some delay should be
anticipated when ordering these items.
© The mechanical parts with no reference
number in the exploded views are not
supplied.
© Hardware (# mark) list is given in the
last of this parts list.
Cabinet's color
17
T901
I poten
— 22 —
The components identified by
rk A\ or dotted line with mark
uate critical for safety.
eplace only with part number
specified.
board.
When indicating parts by refer-
ence number, please include the
22
Ref. No.
20
20
20
Part No. Description Remark
4-950-182-01 PLATE, INDICATION (M54)
4-950-182-11 PLATE, INDICATION (M43)
X-4942-345-1 PANEL ASSY, FRONT (BLACK) (M54)
X-4942-346-1 PANEL ASSY, FRONT
(GRAY) (EXCEPT M54/M43: Italian)
X-4942-347-1 PANEL ASSY, FRONT (BLACK) (M43: Italian)
4-950-176-01 BUTTON (POWER) (GRAY)
(EXCEPT M54/M43: Ital ian)
4-950-176-11 BUTTON (POWER) (BLACK) (M54/M43: Italian)
4-950-177-01 BUTTON (G) (GRAY)
(EXCEPT M54/M43: Italian)
4-950-177-11 BUTTON (G) (BLACK) (M54/M43: Italian)
4-950-179-01 BUTTON (MC/B)
(GRAY) (EXCEPT M54/M43: Ital ian)
4-950-179-11 BUTTON (MC/B) (BLACK) (M54/M43: Italian),
4-950-178-01 BUTTON (MC/A)
(GRAY) (EXCEPT M54/M43: Italian)
4-950-178-11 BUTTON (MC/A) (BLACK) (M54/M43: Ital ian)
1-642-887-21 P. SW BOARD
4-928-635-01 SCREW, +BV (2. 6X8) TAPPING
A-4604-901-A KNOB (HP) ASSY (M54)
4-948-469-01 SPRING, RING (M54)
1-642-886-21 HP BOARD (M54)
‘A-4649-107-A MOTOR VOL BOARD, COMPLETE (M54)
3-676-567-00 SPACER (M54:E, AEP)
4-922-980-01 HOLDER (LED) (M54)
3-363-099-01 SCREW (CASE +3X8 TP2) (MADE IN FRANCE)
3-704-366-01 SCREW (CASE) (M3X8) (MADE IN JAPAN)
4-919-376-31 CASE (BLACK) (M54/M43: Italian)
4-919-376-81 CASE (GRAY) (EXCEPT M54/M43: Italian)
4-886-821-11 SCREW, S TIGHT, +PTTWH 3X6
1-642-883-21 POWER BOARD
4-924-098-31 HOLDER, PC BOARD
4-950-174-01 PANEL, LOADING (GRAY)
(EXCEPT M54/M43: Itarian)
4-950-174-11 PANEL, LOADING (BLACK) (M54)
4-950-174-21 PANEL, LOADING (BLACK) (W43: Italian)
— 28
