Sony LBT-A57CD - Section 6. Exploded Views; Overall Section; Front Panel Section

NOTE:
+ -XX, -X mean standardized parts, so
they may have some differences from
the original one.
* Color Indication of Appearance Parts
Example:
KNOB, BALANCE(WHITE)..(RED)
t t
Parts color Cabinet's color

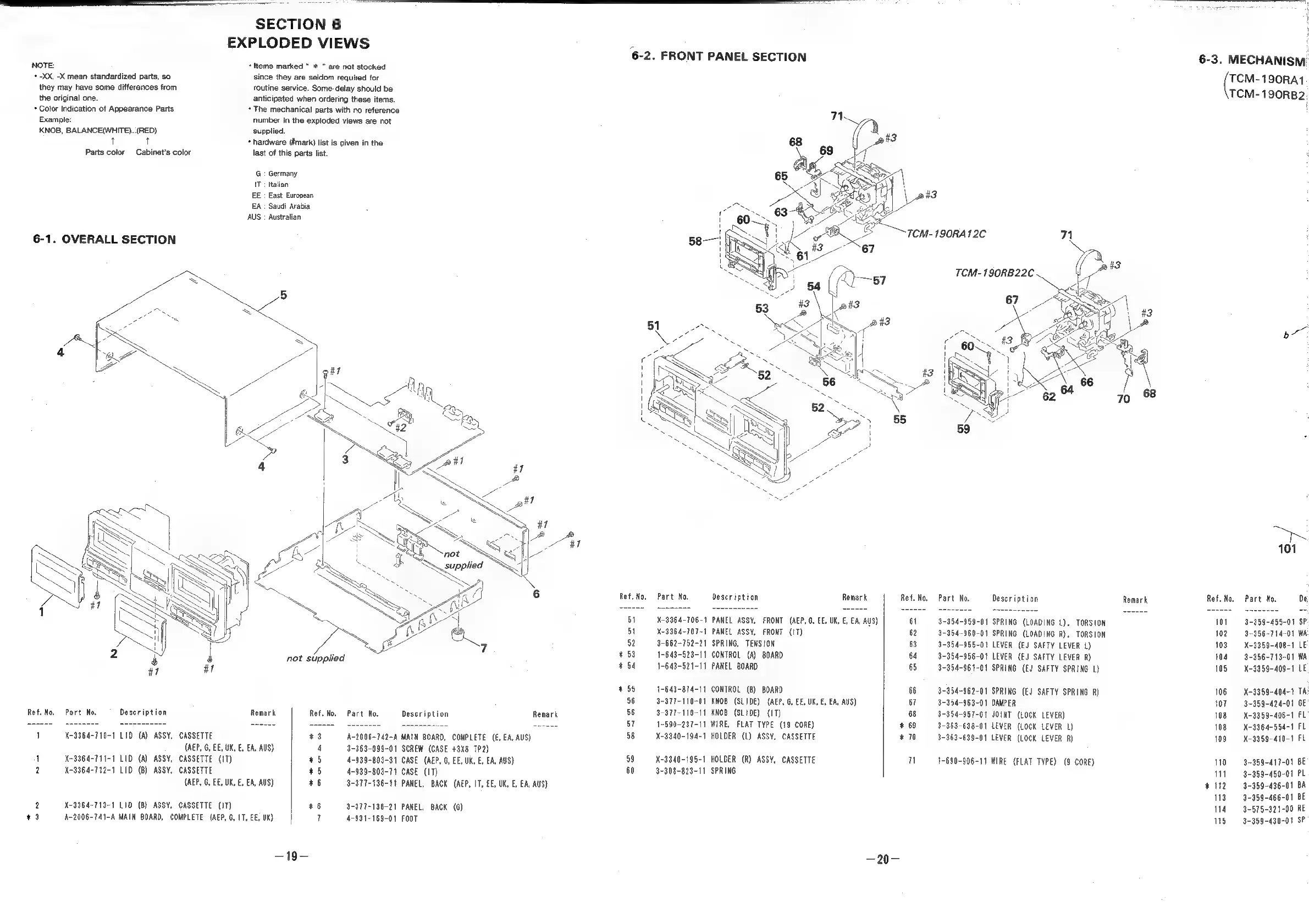

6-1. OVERALL SECTION
SECTION 6
EXPLODED VIEWS
+ Items marked " * " are not stocked
since they are seldom required for
routine service. Some-delay should be
anticipated when ordering these items.
* The mechanical parts with no reference
number in the exploded views are not
supplied.
+ hardware (#mark) list is given in the
last of this parts list.
G:
IT:
EE:
EA:
AUS :
Germany
Italian
East European
Saudi Arabia
Australian
not supplied
Part No. Description Remark Ref. No.
1 X-3364-710-1 LID (A) ASSY, CASSETTE #3
(AEP, G, EE, UK, E, EA, AUS) 4
1 X-3364-711-1 LID (A) ASSY, CASSETTE (IT) #5
2 X-3364-712-1 LID (B) ASSY, CASSETTE #5
(AEP, 6, EE, UK, E, EA, AUS) *6
2 X-3364-713-1 LID (B) ASSY, CASSETTE (IT) #6
#3 A-2006-741-A MAIN BOARD, COMPLETE (AEP, 6, IT, EE, UK) 7
—19—
Part No. Remark
A~2006-742-A MAIN BOARD, COMPLETE (E, EA, AUS)
3-363-099-01 SCREW (CASE +3X8 TP2)
4-939-803-31 CASE (AEP, G, EE, UK, E, EA, AUS)
4-939-803-71 CASE (IT)
3-377-136-11 PANEL, BACK (AEP, IT, EE, UK, E, EA, AUS)
Description
3-377-136-21 PANEL, BACK (6)
4-931-169-01 FOOT
6-2. FRONT PANEL SECTION
Part No.
X-3364-706-1
X-3364-707-1
3-662-752-21
1-643-523-11
1-643-521-11
1-643-874-11
3-377-110-01
3-377-110-11
1-590-237-11
X-3340-194-1
X~3340-195-1
3-308-823-11
Description Remark Ref. No.
PANEL ASSY, FRONT (AEP, G. EE. UK, E, EA, AUS) 61
PANEL ASSY, FRONT (IT) 62
SPRING, TENSION 63
CONTROL (A) BOARD 64
PANEL BOARD 65
CONTROL
(8)
BOARD
66
KNOB (SLIDE) (AEP, G, EE, UK, E, EA, AUS) 67
KNOB (SLIDE) (IT) 68
WIRE, FLAT TYPE (19 CORE) + 69
HOLDER (L) ASSY, CASSETTE #70
HOLDER (R) ASSY, CASSETTE nW
SPRING
—20-—
Part No.
Description
3-354-959-01 SPRING (LOADING L), TORSION
3-354-960-01 SPRING (LOADING R), TORSION
3-354-955-01 LEVER (EJ SAFTY LEVER L)
3-354-956-01 LEVER (EJ SAFTY LEVER R)
3-354-961-01 SPRING (EJ SAFTY SPRING L)
3-354-962-01 SPRING (EJ SAFTY SPRING R)
3-354-963-01 DAMPER
3-354-957-01 JOINT (LOCK LEVER)
3-363-638-01 LEVER (LOCK LEVER L)
3-363-639-01 LEVER (LOCK LEVER R)
1-690-906-11 WIRE (FLAT TYPE) (9 CORE)
6-3.
MECHANISM
ces
9ORA1
TCM-190RB2
106
110
115
ba
101
Part No.
3-359-455-01
3-356-714-01
X-3359-408-1
3-356-713-01
X-3359-409-1
X-3359-404-1
3-359-424-01
X-3359-406-1
X-3364-554-1
X-3359-410-1
3-359-417-01
3-359-450-01
3-359-436-01
3-359-466-01
3-575-321-00
3-359-430-01
BE
