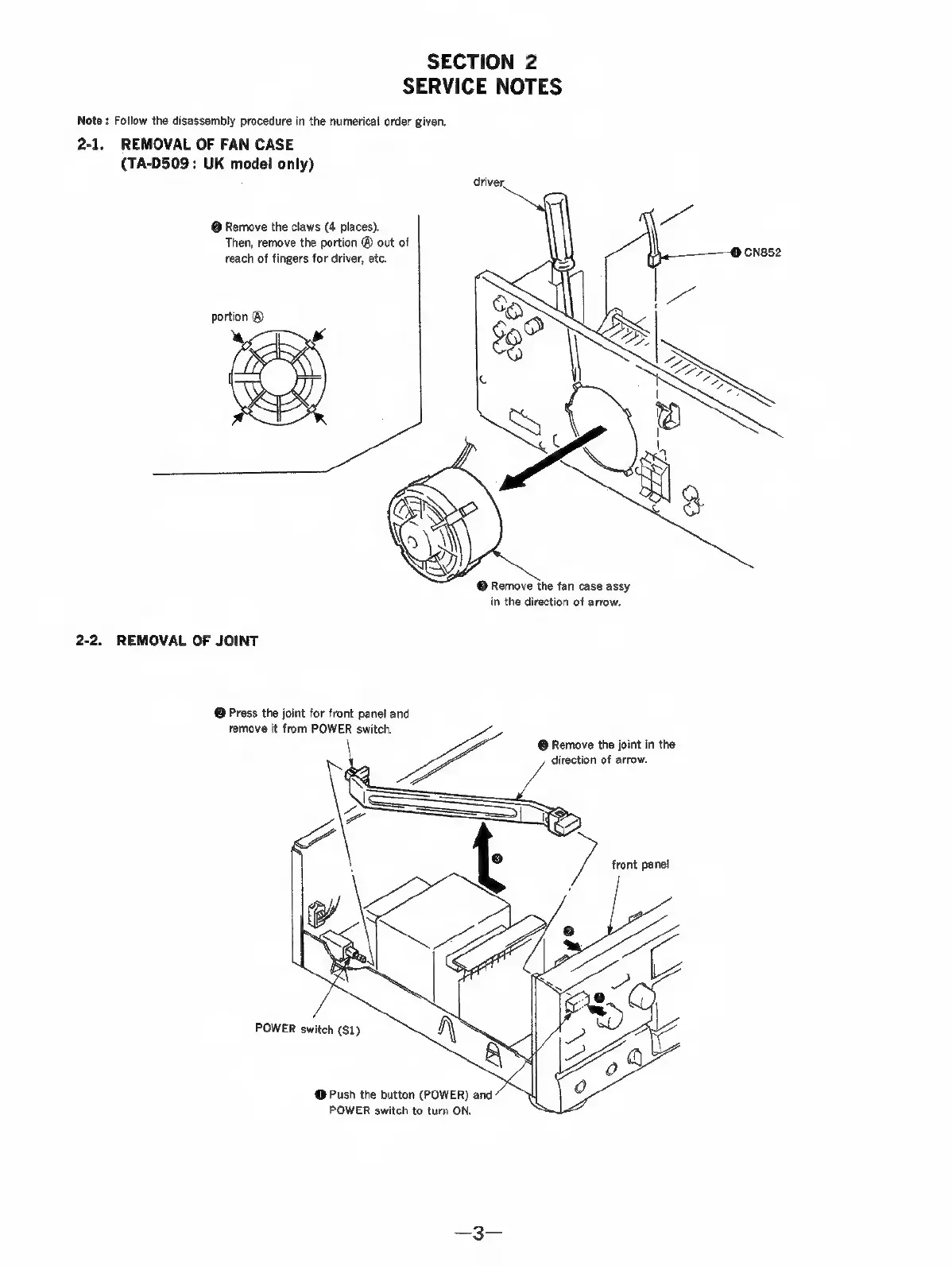

Sony LBT-A57CD - Section 2 Service Notes; 2-1. Removal of Fan Case; 2-2. Removal of Joint

SECTION 2
SERVICE NOTES
Note: Follow the disassembly procedure in the numerical order given.
2-1. REMOVAL OF FAN CASE
(TA-D509: UK model only)
@ Remove the claws (4 places).
Then, remove the portion @ out of
reach of fingers for driver, etc.
portion ®
*
a
@ Remove the fan case assy
in the direction of arrow.
2-2. REMOVAL OF JOINT
@ Press the joint for front panel and
remove it from POWER switch.
© Remove the joint in the
direction of arrow.
POWER switch ($1)
@ Push the button (POWER) and
POWER switch to turn ON.
