Sony LBT-A57CD - Section 2. Disassembly

TC-D507

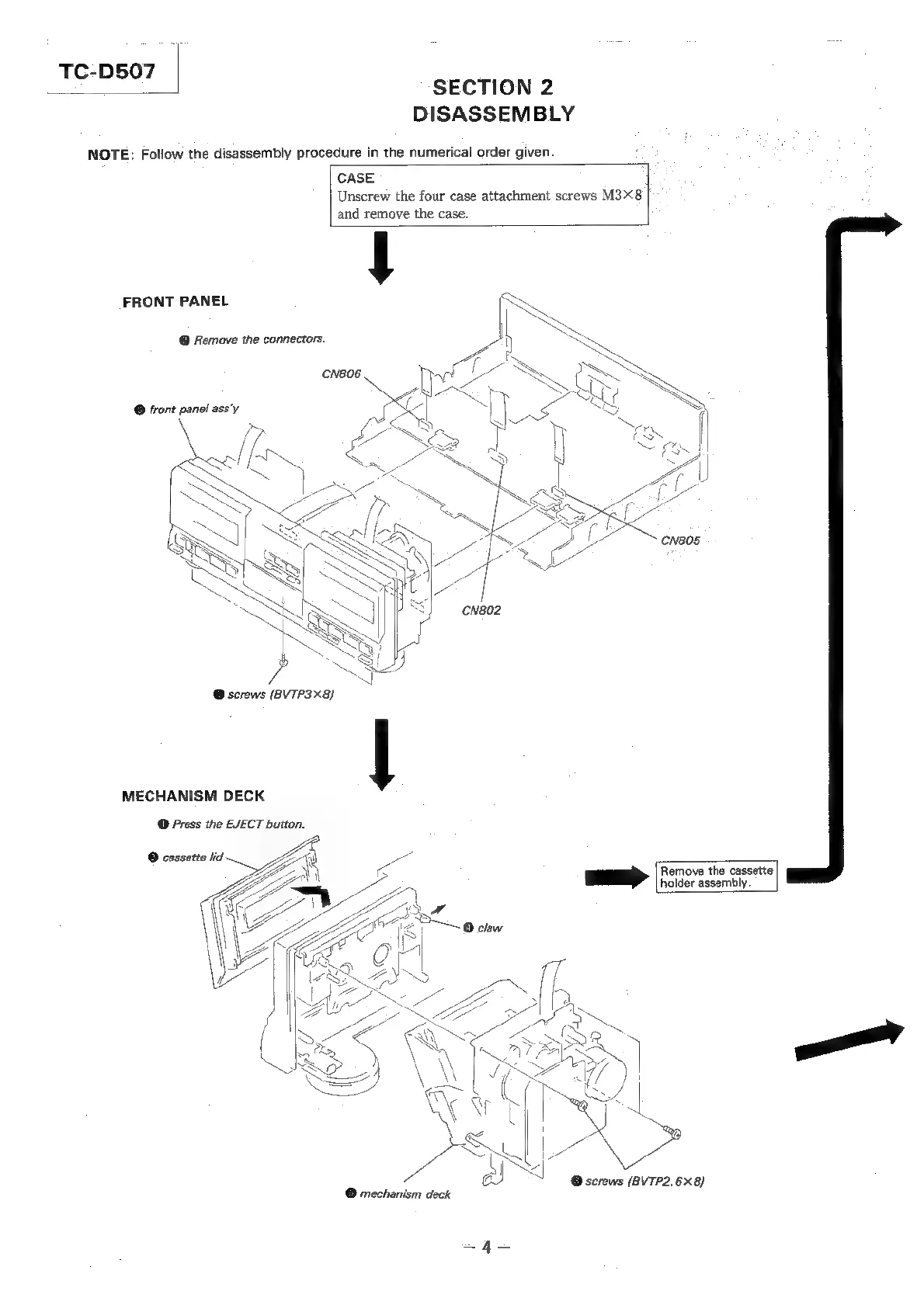

SECTION 2
DISASSEMBLY
NOTE: Follow the disassembly procedure in the numerical order given.
CASE
Unscrew the four case attachment screws M38
and remove the case.
FRONT PANEL
@ Remove the connectors.
CN806
@ front panel ass’y
MECHANISM DECK
@ Press the EJECT button.
© mechanism deck
Remove the cassette
holder assembly.
