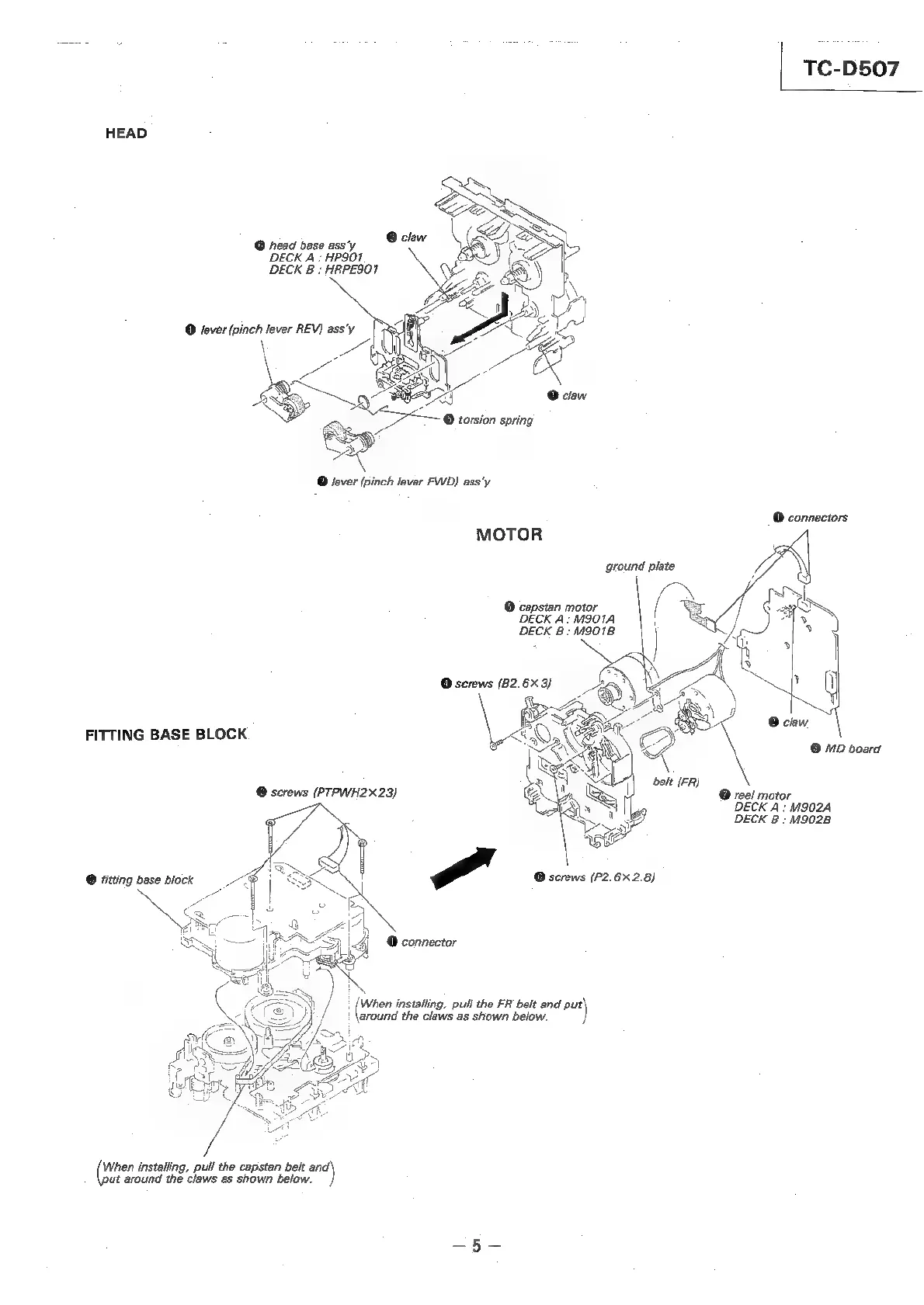

TC-D507
HEAD
© head base ass'y
DECK A: HP901
DECK B : HRPESOT
O claw
@ lever (pinch lever FWD) ass’y
@ connectors
MOTOR
ground plate
© capstan motor
DECK A: M901A
DECK B: M9018
FITTING BASE BLOCK
© MD board
belt (FR)
@ reel motor
DECK A: M902A
@ screws (PTPWH2x 23)
DECK B : M902B
@ connector
When installing, pull the FR belt and put’
around the claws as shown below.
When installing, pull the capstan belt and’
ut around the claws as shown below.
