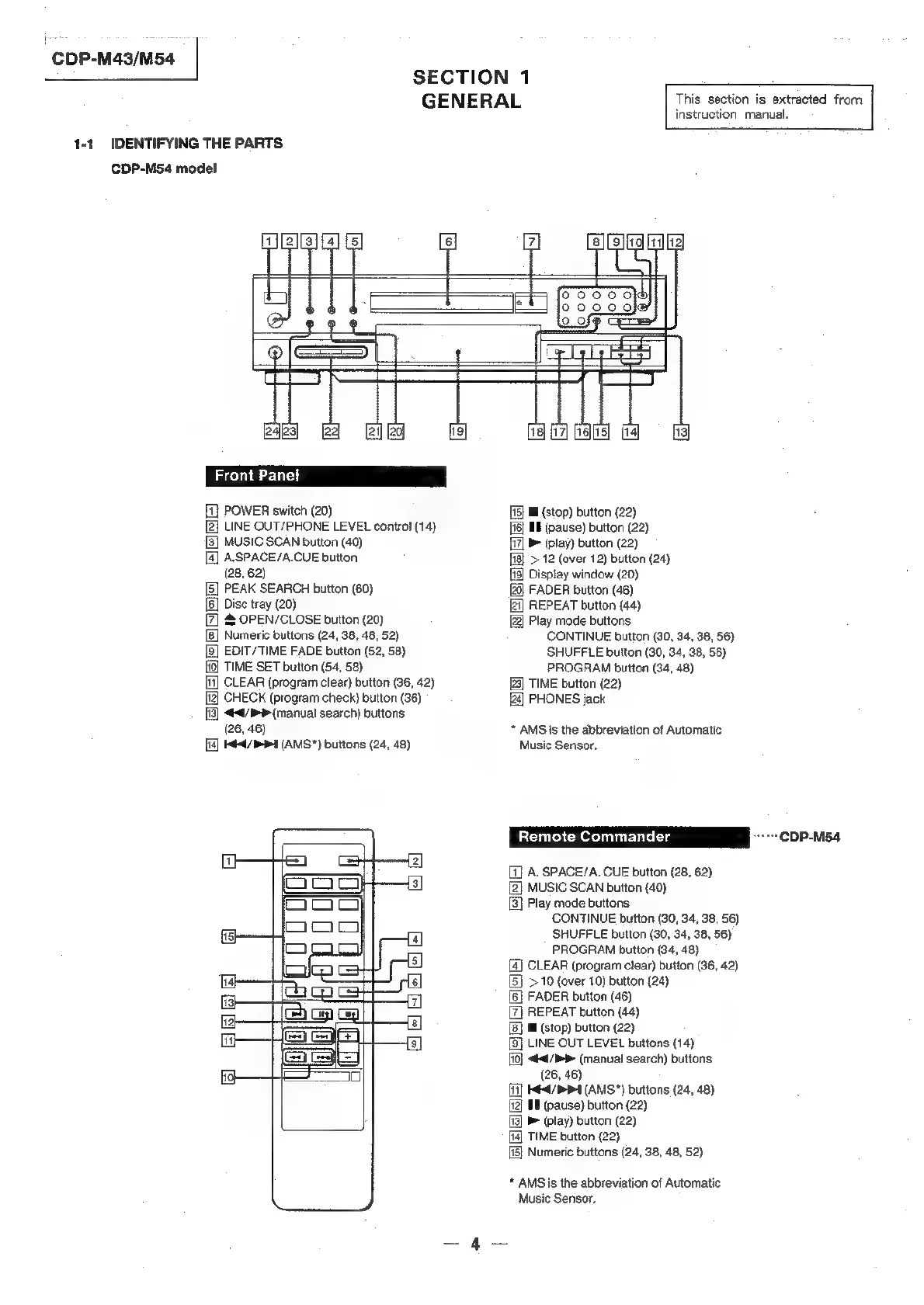

1-1 IDENTIFYING THE PARTS
CDP-M54 model
ront Panel
SISOS
This section is extracted from
instruction manu:
POWER switch (20)
LINE OUT/PHONE LEVEL control (14)
MUSIC SCAN button (40)
ASPACE/A.CUE button
(28, 62)
PEAK SEARCH button (60)
Disc tray (20)
# OPEN/CLOSE button (20)
Numeric buttons (24, 38, 48, 52)
EDIT/TIME FADE button (52, 58)
TIME SET button (54, 58)
CLEAR (program clear) button (36, 42)
CHECK (program check) button (36)
<44/>> (manual search) buttons
(26, 46)
14/4 (AMS"*) buttons (24, 48)
[i] Ml (stop) button (22)
II (pause) button (22)
> (play) button (22)
[8] > 12 (over 12) button (24)
Display window (20)
FADER button (46)
REPEAT button (44)
Play mode buttons
CONTINUE button (30, 34, 38, 56)
SHUFFLE button (30, 34, 38, 56)
PROGRAM button (34, 48)
TIME button (22)
PHONES jack
eS]
* AMS is the abbreviation of Automatic
Music Sensor.
Remote Comman
~-CDP-M54
A. SPACE/A. CUE button (28, 62)
2] MUSIC SCAN button (40)
Play mode buttons
CONTINUE button (30, 34, 38, 56)
SHUFFLE button (30, 34, 38, 56)
PROGRAM button (34, 48)
CLEAR (program clear) button (36, 42)
e}
> 10 (over 10) button (24)
FADER button (46)
REPEAT button (44)
1 (stop) button (22)
eS COICoES LINE OUT LEVEL buttons (14)
10] </> (manual search) buttons
(26, 46)
4/1 (AMS*) buttons (24, 48)
Al (pause) button (22)
fig] > (play) button (22)
[ta] TIME button (22)
7%] Numeric buttons (24, 38, 48, 52)
it
iS)
* AMS is the abbreviation of Automatic
Music Sensor.
