RE)

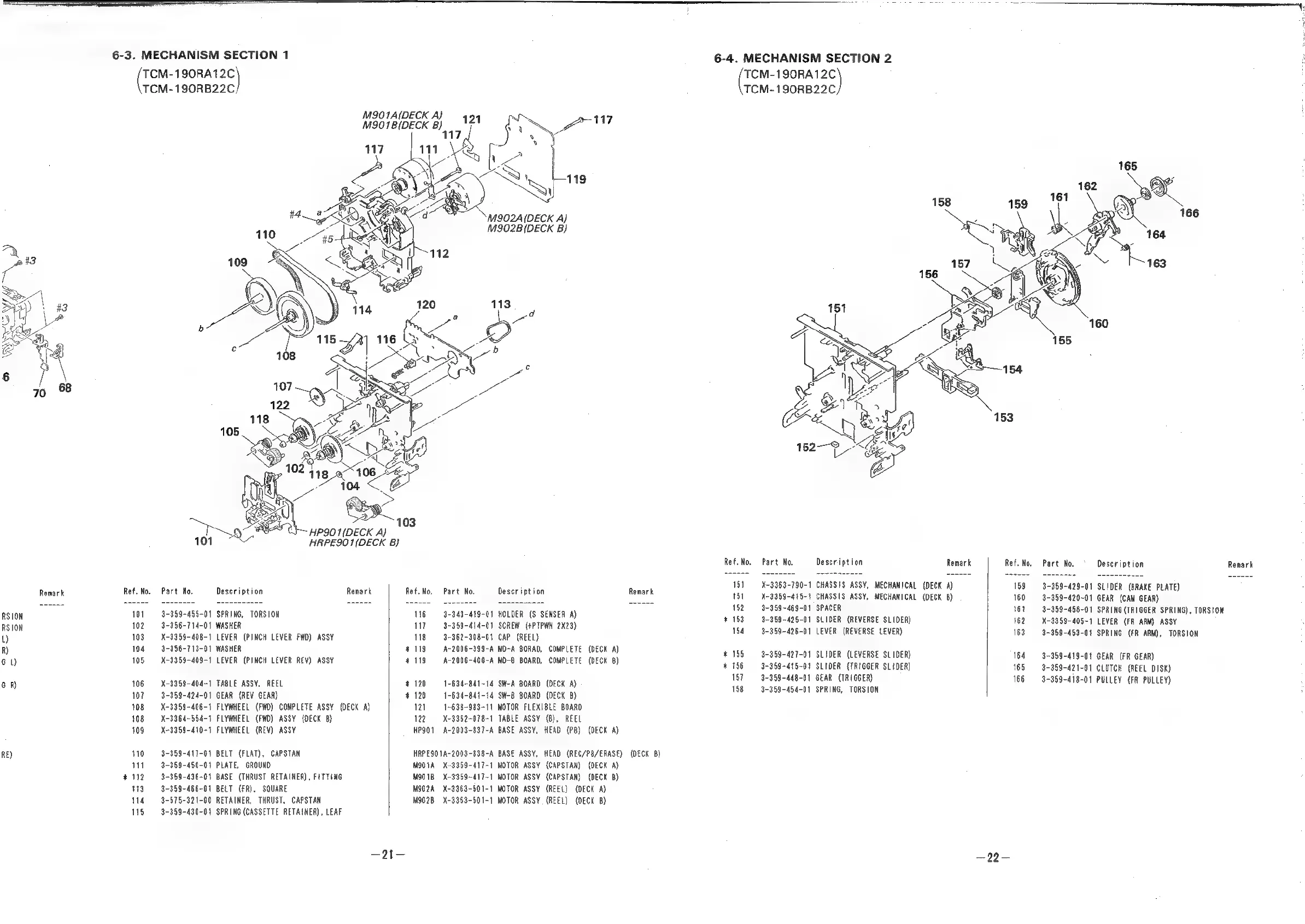

6-3. MECHANISM SECTION 1
TCM-190RB22C,
Gees al
106
110
116
Part No.
3-359-455-01
3-356-714-01
X-3359-408-1
3-356-713-01
X-3359-409-1
X-3359-404-1
3-359-424-01
X-3359-406-1
X-3364-554-1
X-3359-410-1
3-359-417-01
3-359-450-01
3-359-436-01
3-359-466-01
3-575-321-00
3-359-430-01
M901A(DECK A)
M901B(DECK Sp 17
Description
SPRING, TORSION
WASHER
LEVER (PINCH LEVER FHD) ASSY
WASHER
LEVER (PINCH LEVER REV) ASSY
TABLE ASSY, REEL
GEAR (REV GEAR)
FLYWHEEL (FWD) COMPLETE ASSY (DECK A)
FLYWHEEL (FWD) ASSY (DECK B)
FLYWHEEL (REV) ASSY
BELT (FLAT), CAPSTAN
PLATE, GROUND
BASE (THRUST RETAINER), FITTING
BELT (FR), SQUARE
RETAINER, THRUST, CAPSTAN
SPRING (CASSETTE RETAINER), LEAF
HP901(DECK A)
HRPE901 (DECK B)
~oh=
Ref. No.
~*
Part No.
116 3-343-419-01
WT 3-359-414-01
118 3-362-308-01
119 A-2006-399-A
119 A-2006-400-A
120 1-634-841-14
120 1-634-841-14
121 1-638-983-11
122 X-3362-078-1
HP901 =A-2003-837-A
HRPESO1A-2003-838-A
M901A X-3359-417-1
M901B X-3359-417-1
M902A X-3363-501-1
M902B X-3363-501-1
M902A(DECK A)
M902B(DECK B)
Description Remark
HOLDER (S SENSER A)
SCREW (+PTPWH 2X23)
CAP. (REEL)
MD-A BORAD, COMPLETE (DECK A)
MD-8 BOARD, COMPLETE (DECK 8)
SW-A BOARD (DECK A)
SW-B BOARD (DECK B)
MOTOR FLEXIBLE BOARD
TABLE ASSY (8), REEL
BASE ASSY, HEAD (PB) (DECK A)
BASE ASSY, HEAD (REC/PB/ERASE) (DECK 8)
MOTOR ASSY (CAPSTAN) (DECK A)
MOTOR ASSY (CAPSTAN) (DECK 8)
MOTOR ASSY (REEL) (DECK A)
MOTOR ASSY (REEL) (DECK B)
6-4. MECHANISM SECTION 2
Saget
TCM-190RB22C
Part No.
X-3363-790-1
X-3359-415-1
3-359-469-01
3-359-425-01
3-359-426-01
3-359-427-01
3-359-415-01
3-359-448-01
3-359-454-01
Description
CHASSIS ASSY, MECHANICAL (DECK A)
CHASSIS ASSY, MECHANICAL (DECK B)
SPACER
SLIDER (REVERSE SLIDER)
LEVER (REVERSE LEVER)
SLIDER (LEVERSE SLIDER)
SLIDER (TRIGGER SLIDER)
GEAR (TRIGGER)
SPRING, TORSION
—29—
Ref. No.
159
160
161
162
163
164
165
166
3-359-429-01
3-359-420-01
3-359-456-01
X-3359-405-1
3-359-453-01
3-359-419-01
3-359-421-01
3-359-418-01
166
Description
SLIDER (BRAKE PLATE)
GEAR (CAM GEAR)
SPRING (TRIGGER SPRING), TORSION
LEVER (FR ARM) ASSY
SPRING (FR ARM), TORSION
GEAR (FR GEAR)
CLUTCH (REEL DISK)
PULLEY (FR PULLEY)
