CDP-M43/Mo4
AEP Model
UK Model
E Model
Australian Model
CDP-M43
AEP Model
UK Model
E Model

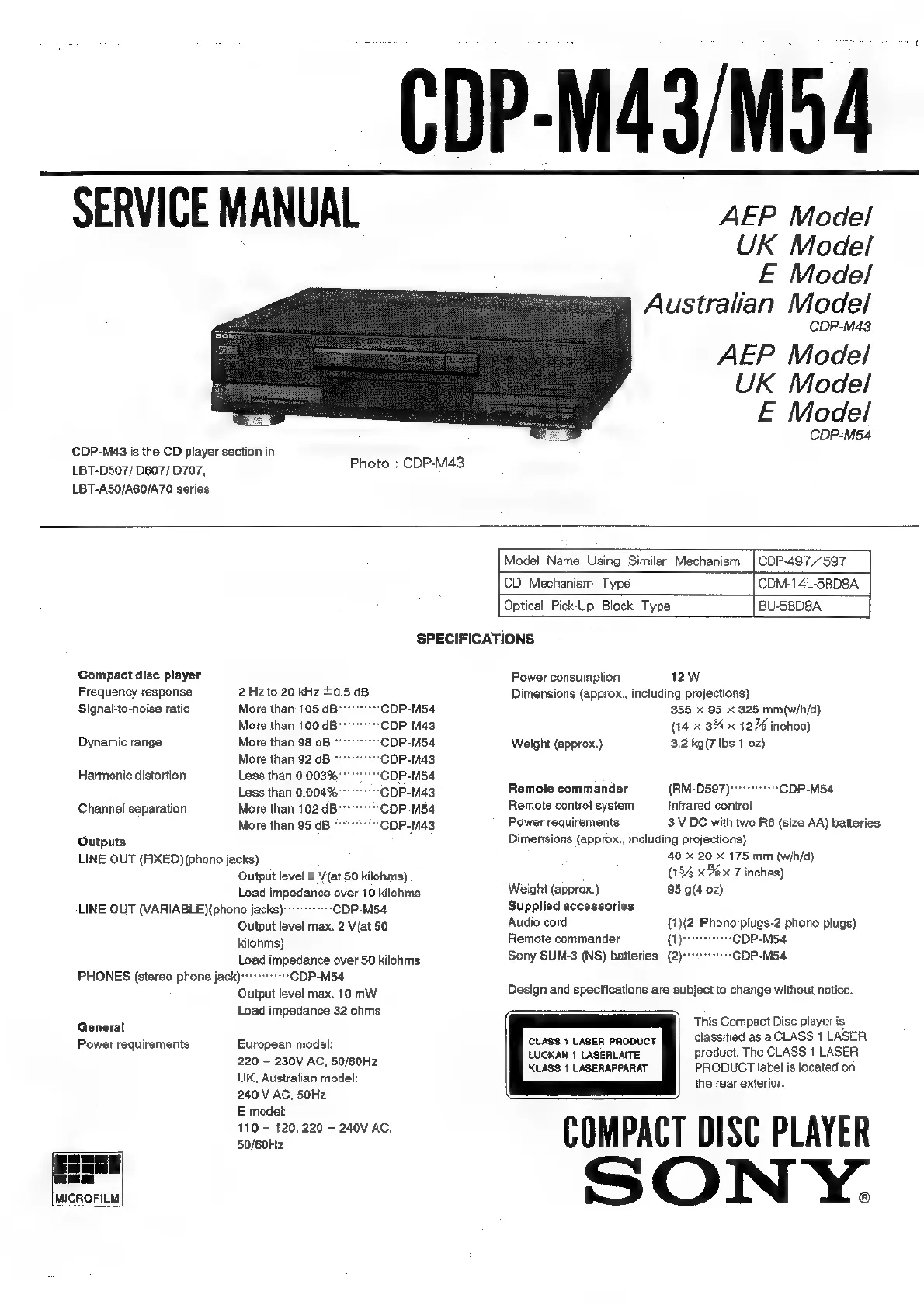

SERVICE MANUAL
CDP-M54
CDP-M43 is the CD player section in
LBT-D507/ D607/ D707, Photo: CDR-MaS
LBT-ASO/AGO/A70 series
Model Name Using Similar Mechanism | CDP-497/597
CD Mechanism Type CDM-14L-5BD8A
Optical Pick-Up Block Type BU-SBDBA
SPECIFICATIONS
Compact disc player Power consumption 12W
2 Hz to 20 kHz 0.5 dB Frequency response
Signal-to-noise ratio
More than 105 dBo"""""""
More than 100.dB"
Dimensions (approx., including projections)
355 x 95 x 325 mm(wihid)
(14 x 3% x 12% inches)
More than 98 dB
More than 92 dB
Less than 0.003%:
Less than 0.004%"
More than 102 dB
More than 95 dB
Dynamic range Weight (approx.) 3,2 kg(7 Ibs 1 02)
Harmonic distortion
Remote commander ~~ CDP-M54
Remote control system Infrared control
Power requirements 3.V DC with two R6 (size AA) batteries
Dimensions (approx., including projections)
40 x 20 x 175 mm (wih/d)
(154 x 96x 7 inches)
(RM-D597)::
Channel separation
Outputs
LINE OUT (FIXED) (phono jacks)
Output level 2 Vat 50 kilohms)
Load impedance over 10 kilohms Weight (approx.) 95 g(4 oz)
LINE OUT (VARIABLE)(phono jacks)*-*"+-----CDP-M54 Supplied accessories
Output level max. 2 V(at 50 Audio cord (1)(2 Phono plugs-2 phono plugs)
kilohms) Remote commander (1) -CDP-M54
Load impedance over 50 kilohms Sony SUM-3 (NS) batteries (2) -CDP-M54
PHONES (stereo phone jack)***-""+-*CDP-M54
Output lavel max: 10 mW Design and specifications are subject to change without notice.
Load impedance 32 ohms e
This Compact Disc player is.
classified as a CLASS 1 LASER
product. The CLASS 1 LASER
PRODUCT label is located on
the rear exterior.
COMPACT DISC PLAYER
SONY.
General
Power
requirements
CLASS
1
LASER
PRODUCT
European model:
220 — 230V AC, 50/60Hz
UK, Australian model:
240 V AC, 50Hz
E model:
110 — 120, 220 ~ 240V AC,
50/60Hz
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
MICROFILM.
