Sony LBT-A57CD - Page 40

Ref. No.
21
2
a1
21
24
a
a
+22
ag.
423
423
Als
A233
AN3
+24
+4
25
+ 26
+27
28
30
«31
«31
A32
As?
CN401
Da71
ANT9OL
AT9O1
Part No. Description Remark
4-941-467-11 PANEL (ALSACE), BACK
(MADE IN FRANCE M43:AEP, Ital ian, UK)
4-941-552-21 PANEL (ALSACE), BACK
(WADE IN JAPAN M54: AEP, UK)
4-949-433-01 PANEL, BACK (MADE IN JAPAN M54: AEP)
4-949-433-22 PANEL, BACK (MS4:E)
4-949-433-41 PANEL, BACK (MADE IN FRANCE M43: AEP)
4-949-433-51 PANEL, BACK (M43:E, Saudi Arabia)
4-949-433-61 PANEL, BACK (M43:Austral ian)
3-703-244-00 BUSHING (2104), CORD (EXCEPT E)
3-703-571-11 BUSHING (S) (4516), CORD (E)
1-558-946-21 CORD, POWER (M54:UK)
1-574-358-31 CORD, POWER
(WITH CONNECTOR) (Austral ian)
1-575-651-21 CORD, POWER (AEP, Italian, Saudi Arabia)
1-575-653-21 CORD, POWER (E)
1-590-379-11 CORD, POWER (M43:UK)
A-4649-105-A MAIN BOARD, COMPLETE (M54)
A-4649-111-A MAIN BOARD, COMPLETE (M43)
4-941-237-01 HEAT SINK (M54:UK)
4-902~345-01 HEAT SINK (EXCEPT M54:UK)
3-349-025-41 HOLDER, PC BOARD
4-314-320-00 HOLDER, WIRE (M54)
1-575-160-11 WIRE, FLAT TYPE (22 CORE)
4-931-169-01 FOOT
4-950-180-01 REINFORCEMENT (MD)
‘A-4649-104-A DISP BOARD, COMPLETE (M54)
‘A-4649-110-A DISP BOARD, COMPLETE (M43)
1-569-007-11 ADAPTER, CONVERSION 2P (E)
1-569-008-11 ADAPTER, CONVERSION 2P (Saudi Arabia)
1-535-987-11 JAMPER, FILM (WITH TERMINAL)
8-719-970-49 DIODE BR4361F (M54)
1-449-922-11 TRANSFORMER, POWER
(EXCEPT E, Saudi Arabia)
1-449-923-11 TRANSFORMER, POWER (E, Saudi Arabia)
2
Ref. No.
101
101
* 102
103
104
105
106
107
108
108

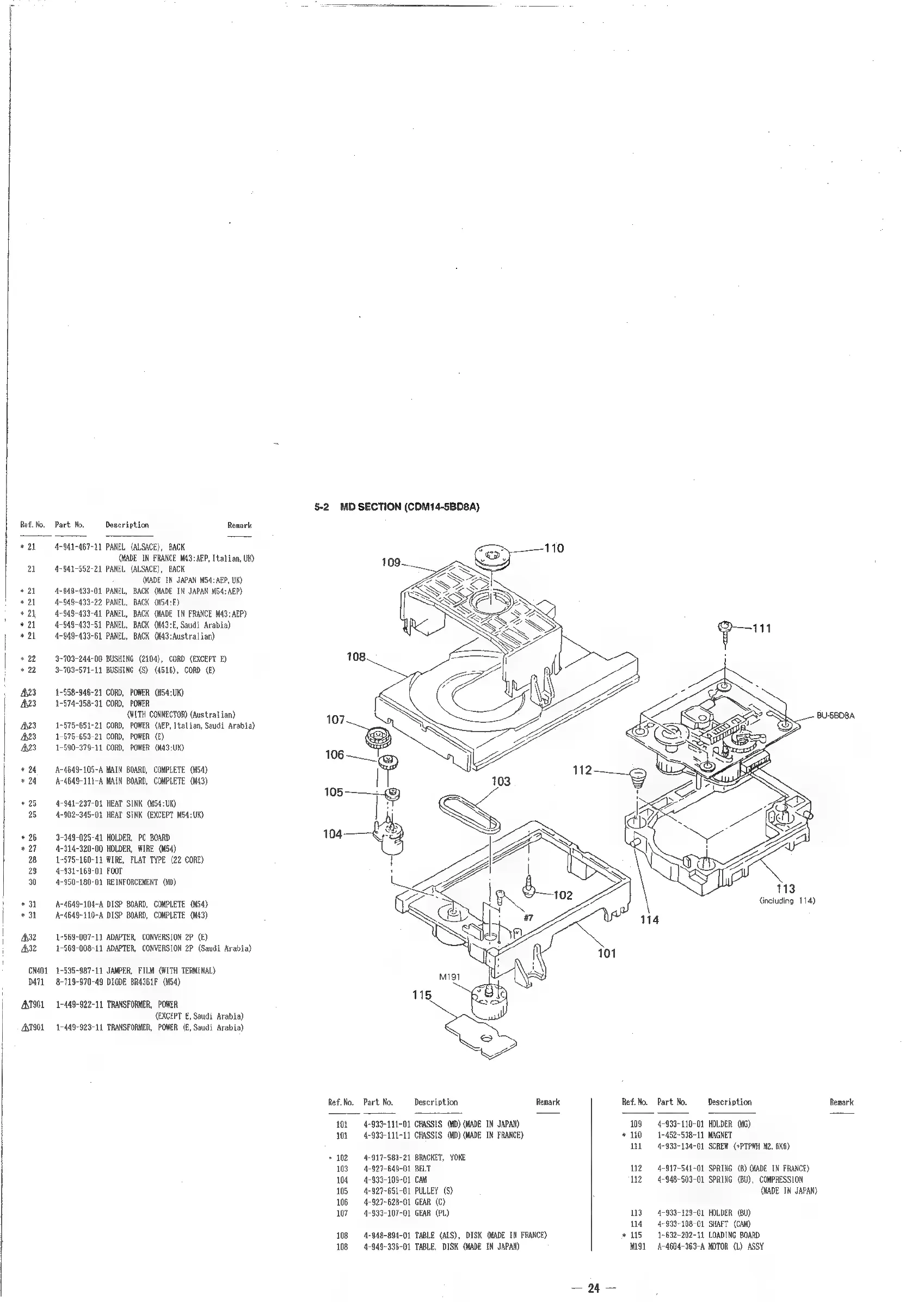

MD SECTION (CDM14-5BD8A)
Part No. Description
4-933-111-01 CHASSIS (MD) (MADE IN JAPAN)
4-933-111-11 CHASSIS (MD) (MADE IN FRANCE)
4-917-583-21 BRACKET, YOKE
4-927-649-01 BELT
4-933-109-01 CAM
4-927-651-01 PULLEY (S)
4-927-628-01 GEAR (C)
4-933-107-01 GEAR (PL)
4-948-894-01 TABLE (ALS), DISK (MADE IN FRANCE)
4-949-336-01 TABLE, DISK (MADE IN JAPAN)
— 4 —
BU-SBD8A
113
(including 114)
Remark Ref.No. Part No. Description Renark
109 4-933-110-01 HOLDER (MG)
* 110 1-452-538-11 MAGNET
111 4-933-134-01 SCREW (+PTPWH M2. 6X6)
112 4-917-541-01 SPRING (B) (MADE IN FRANCE)
112 4-$48-503-01 SPRING (BU), COMPRESSION
(WADE IN. JAPAN)
113 4-933-129-01 HOLDER (BU)
114 4-933-108-01 SHAFT (CAM)
* 115 1-632-202-11 LOADING BOARD
M191 A-4604-363-A MOTOR (L) ASSY
