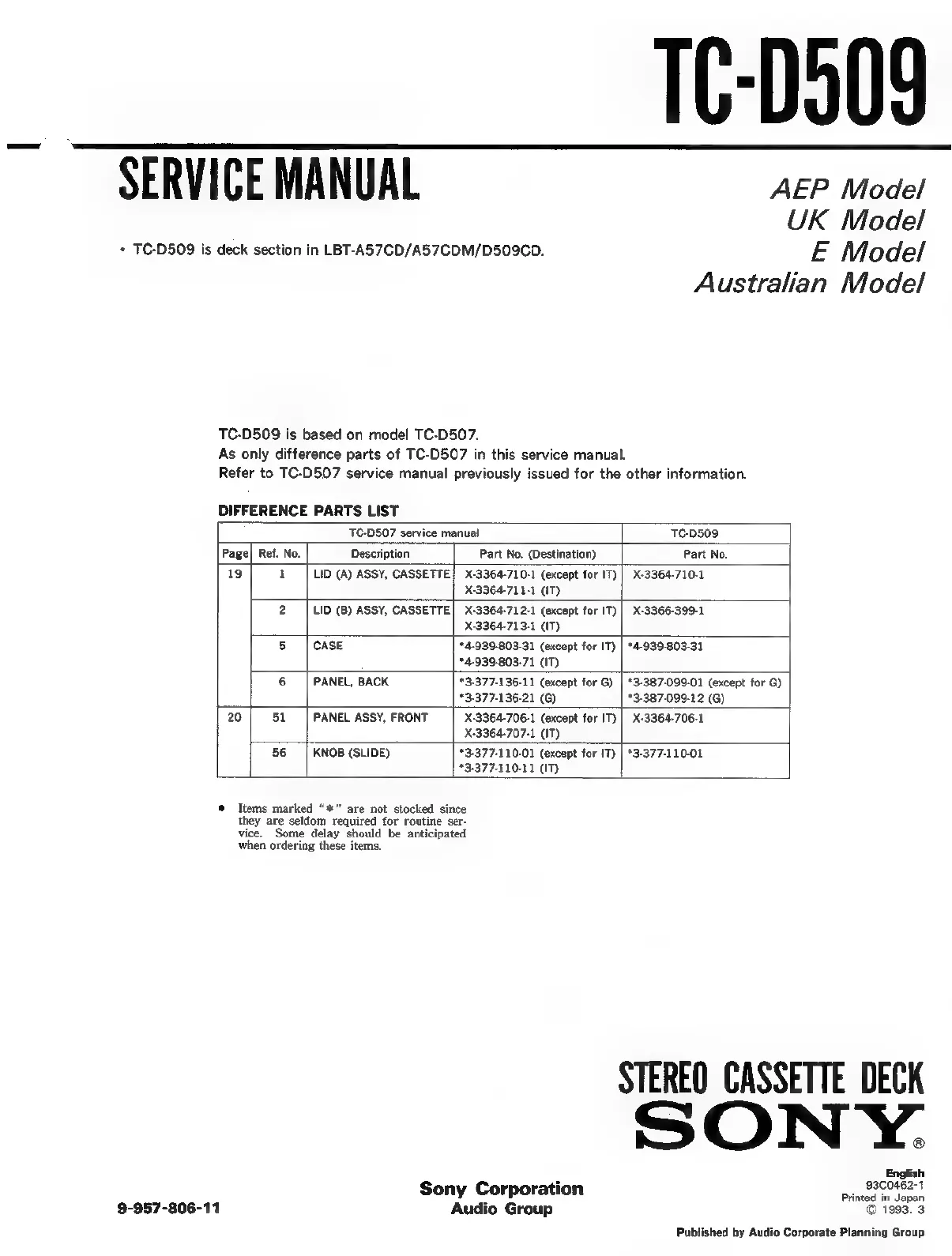

Sony LBT-A57CD - Difference Parts List (TC-D507)

SERVICE MANUAL
+ TC-D509 is deck section in LBT-A57CD/A57CDM/DS509CD.
TC-D509 is based on model TC-D507.
As only difference parts of TC-D507 in this service manual.
TC-D509
AEP Model
UK Model
E Model
Australian Model
Refer to TC-D507 service manual previously issued for the other information.
DIFFERENCE PARTS LIST
*3-377-110-11 (IT)
TC-D507 service manual TC-D509
Page| Ref. No. Description Part No. (Destination) Part No.
19 1 | LiD (A) ASSY, CASSETTE] X-3364-710-1 (except for IT) | X-3364-7101
X-3364-711-1 (IT)
2 | LID (B) ASSY, CASSETTE] X-3364-712-1 (except for IT) | X-3366-399-1
X-3364-7131 (IT) |
5 | CASE *4-939-803-31 (except for IT) | *4-939-803-31
*4-939-803-71 (IT)
6 | PANEL, BACK *3.377-136-11 (except for G) | *3-387-099-01 (except for G)
*3.377.136-21 (G) 13387-09912 (@)
20 | 51 |PANELASSY,FRONT | X-3364-706-1 (except for IT) | X-3364-7061
X-3364-707-1 (IT)
56 | KNOB (SLIDE) *3-377-110-01 (except for IT) | *3-377-110-01
9-957-806-11
Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
Sony Corporation
Audio Group
STEREO CASSETTE DECK
SONY.
English
93C0462-1
Printed in Japan
© 1993. 3
Published by Audio Corporate Planning Group
