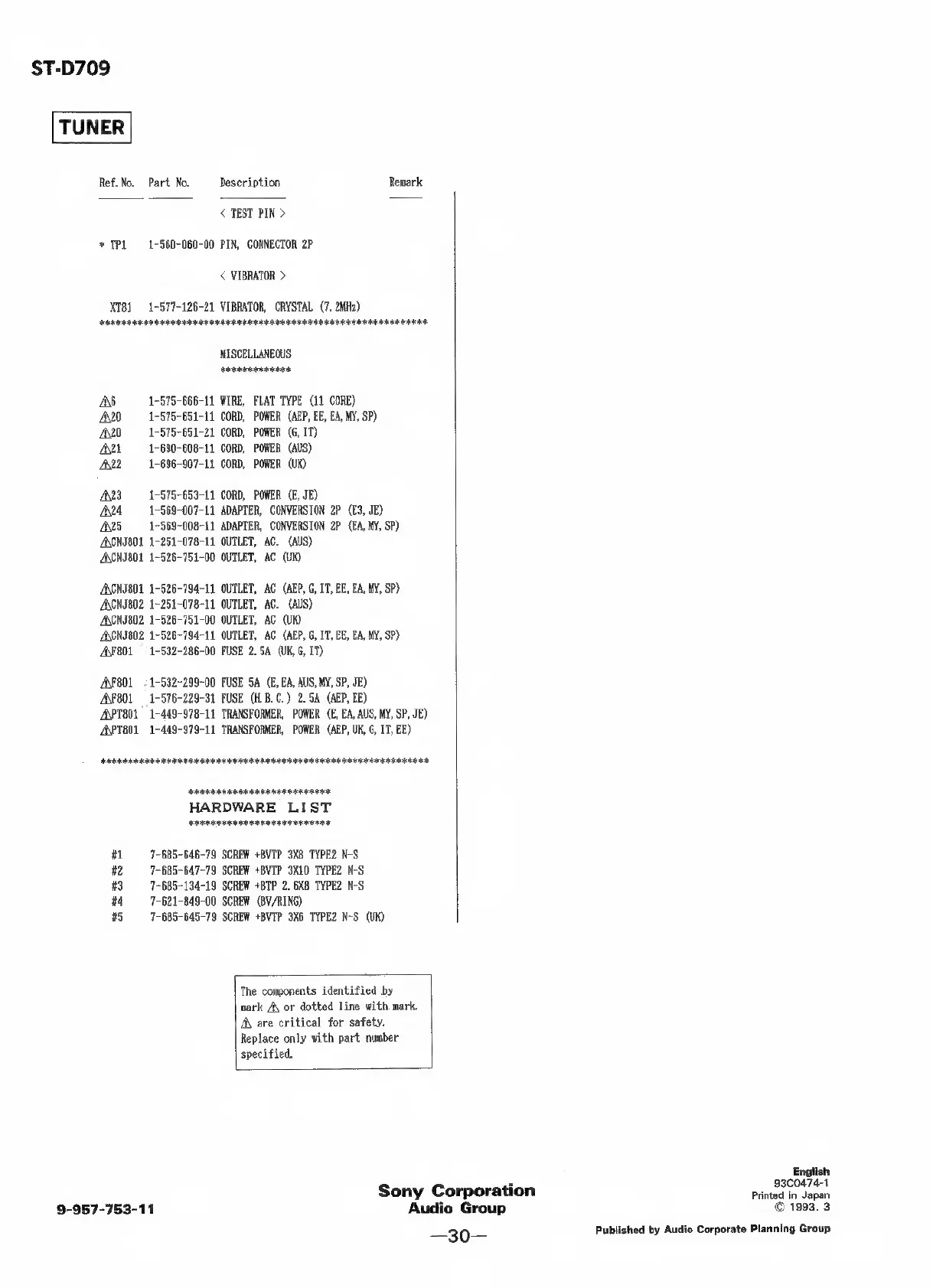

Sony LBT-A57CD - Miscellaneous; Hardware List

ST-D709
TUNER
Ref.No. Part No. Description Remark
< TEST PIN >
* TPL 1-560-060-00 PIN, CONNECTOR 2P
< VIBRATOR >
XT81-1-577-126-21 VIBRATOR, CRYSTAL (7. 2MHz)
peer eeetrera tree treettterea ttt titi retire retiree tooo
MISCELLANEOUS,
perenne
AX8—-1-575-666-11 WIRE, FLAT TYPE (11 CORE)
420 1-575-B51-11 CORD, POWER (AEP, EE, EA, MY, SP)
4x20 1-575-651-21 CORD, PORER (G, IT)
Asti 1-690-608-11 CORD, POWER (AUS)
Ax22—-1-696-907-11 CORD, POHER (UK)
Als 1-575-653-11 CORD, POWER (E, JE)
Ata 1-569-007-11 ADAPTER, CONVERSION 2P (E3, JE)
AS 1-569-008-11 ADAPTER, CONVERSION 2P (EA, MY, SP)
AXCNJ801 1-251-078-11 OUTLET, AC. (AUS)
AXCNI801 1-526-751-00 OUTLET, AC (UK)
AXCNJ801 1-526-794-11 OUTLET, AC (AEP, G, IT, EE, EA, MY, SP)
ANCNS802 1-251-078-11 OUTLET, AC. (AUS) |
AXCNJ802 1-526-751-00 OUTLET, AC (UK)
ANCNJ802 1-526-794-11 OUTLET, AC (AEP, G, IT, BE, EA, MY, SP)
A801 — 1-532-286-00 FUSE 2.5 (UK, G, IT) |
AXF801 — 1-532-299-00 FUSE 5A (E, EA, AUS, MY, SP, JE)
AXF801 — 1-576-229-31 FUSE (H.B.C.) 2.5A (AEP, EE)
A\PT8O1 1-449-978-11 TRANSFORMER, POWER (E, EA, AUS, MY, SP, JE)
AXPT8O1 1-449-979-11 TRANSFORMER, POWER (AEP, UK, G, IT, EE)
eeeeeteer treet tere teeer titre tiene Torti tre eteecoirorsy
J erheerieeeeeneneeeeeennte
HARDWARE LIST
perrrretrre tote tiececta ag
#1 7-685-646-79 SCREW +BVIP 3X8 TYPE2 N-S
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#3 7-685-134-19 SCREW +BTP 2. 6X8 TYPE2 N-S
#4 7-621-849-00 SCREW (BV/RING)
#5 7-685-645-79 SCREW +BVTP 3X6 TYPE2 N-S (UK)
The components identified by
mark A\ or dotted line with mark.
Ay are critical for safety.
Replace only with part number
specified.
English
. 93C0474-1
Sony
Corporation
Piinisd
Ih
pan:
9-957-753-11
Audio
Group
©
1993.
3
—30—
