– 12 –
SECTION 2
GENERAL
1 STANDBY indicator
2 1/u (Power) button
3 FILTER button and indicator
4 DISPLAY/CHAR button
5 Fluorescent indicator tube
6 CLEAR button
7
≠ AMS ± knob
8 REC LEVEL knob (DIGITAL)
9 REC LEVEL knob (ANALOG)
0 PHONES jack
!¡ PLAY MODE button
!™ TIME button
!£ Disc tray
!¢ § OPEN/CLOSE button
!∞ 0/) button
!§ Remote sensor
!¶ TIMER switch
!• MEGA CONTROL button and indicator
!ª SCROLL/CLOCK SET button
@º MENU/NO bottom
@¡ YES button
@™ PHONE LEVEL knob
@£ INPUT select knob
@¢ FADER button
@∞ REPEAT button
@§ ( button and indicator
@¶ P button and indicator
@• p button
@ª r REC button and indicator
1 LINE IN jack (ANALOG)
2 LINE OUT jack (ANALOG)
3 DIGITAL IN (COAXIAL/OPT1/OPT2) jack and connector
4 DIGITAL OUT (COAXIAL/OPTICAL) jack and connector
5 S-LINK CONTROL A1 jack
6 Power cord

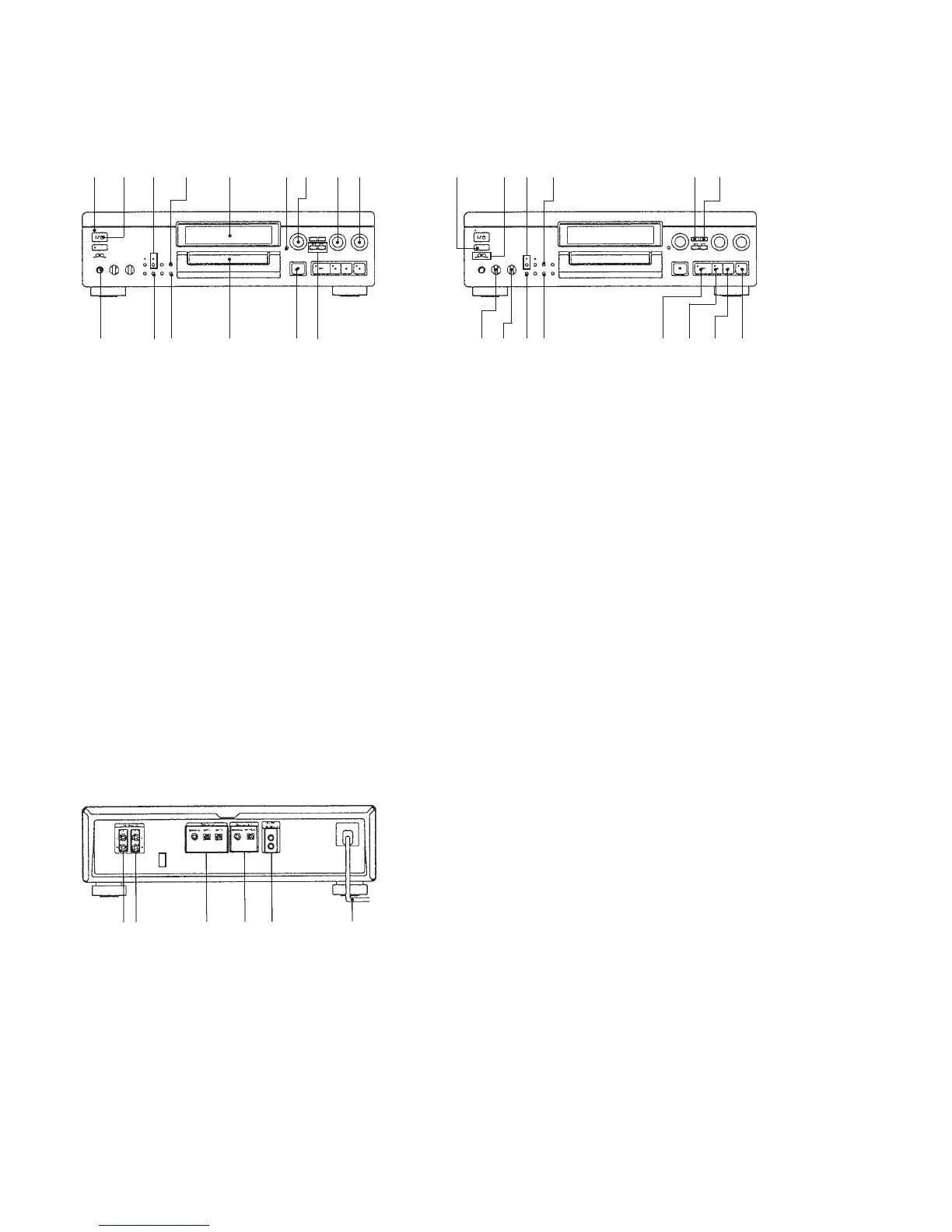

LOCATION OF CONTROLS
– Front Panel –
1
2 3 54 6 8 9
0 !™!¡ !£ !¢ !∞
!§ !¶ !• !ª @¡@º
@™ @¢ @ª@•@¶@§@£ @∞
321
45
6
– Rear Panel –
7
