MDS-JA20ES
– 63 –
– 64 –

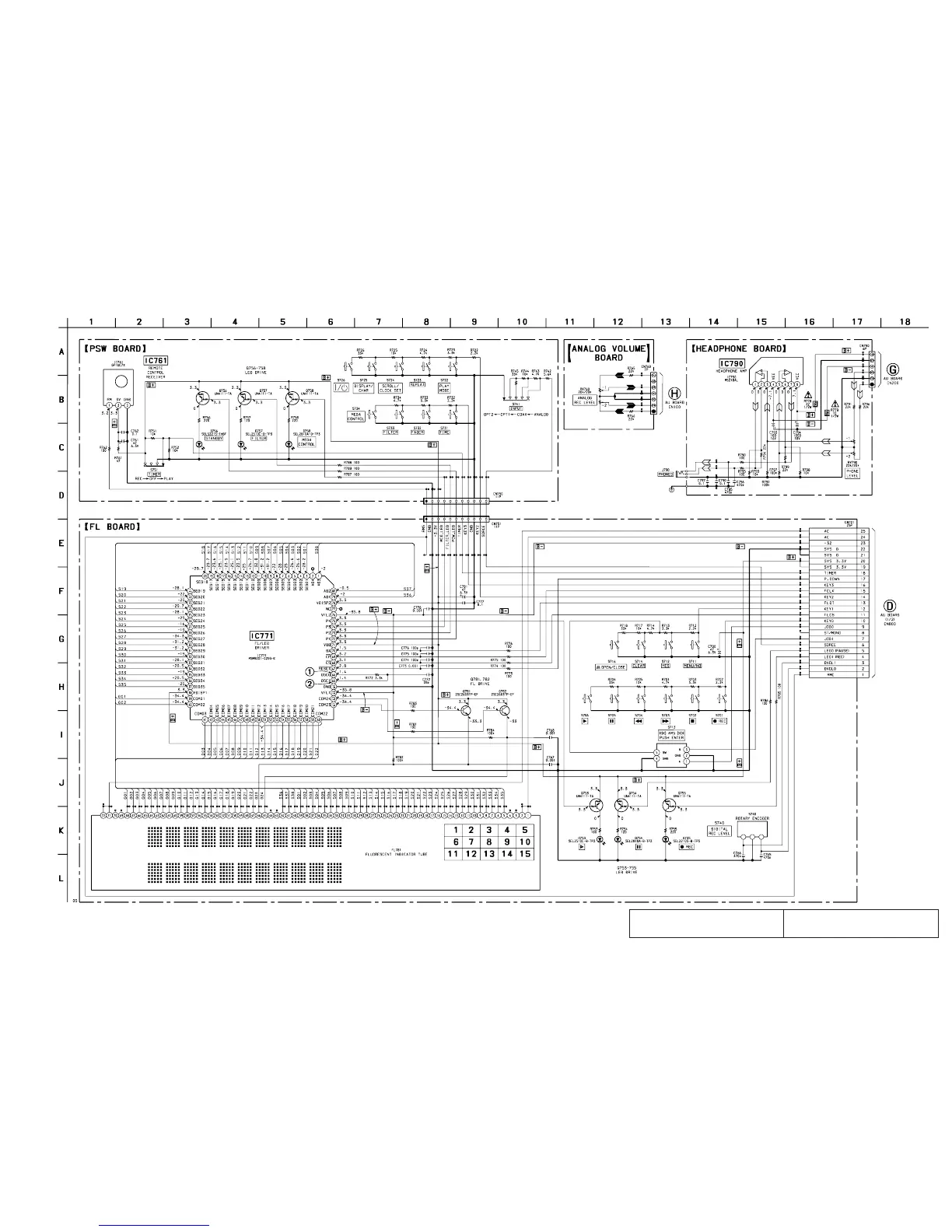

6-16.
SCHEMA
TIC DIAGRAM – P
ANEL Section –
•
See page 72 for
Wavef
orms.
The components identified by mark
!
or dotted
line with mark
!
are critical for safety
.
Replace only with part number specified.
Les composants identifiés par une marque
!
sont
critiques pour la sécurité.
Ne les remplacer que
par une piéce portant le numéro spécifié.
(Page 56)
(Page 54)
(Page 56)
52
54
Table of Contents
Self-Diagnosis Function
2
1 Servicing Notes
4
Table of Contents
4
2 General
12
3 Disassembly
15
Basic Operations of the Test Mode
21
Setting the Test Mode
21
4 Test Mode
21
Selecting the Test Mode
22
5 Electrical Adjustments
26
Block Diagram - MD SERVO Section
35
6 Diagrams
35
Block Diagram - MAIN Section
36
Note for Printed Wiring Boards and Schematic Diagrams
38
Printed Wiring Board - BD Section
39
Schematic Diagram – BD Section (1/2)
41
Schematic Diagram - BD Section (1/2)
42
Printed Wiring Boards - BD SWITCH Section
43
Schematic Diagram - BD SWITCH Section
44
Printed Wiring Board - AUDIO Board (Component Side)
45
Schematic Diagram - AUDIO Section (1/2)
47
Schematic Diagram - AUDIO Section (2/2)
48
Printed Wiring Board - DIGITAL Section
49
Schematic Diagram - DIGITAL Section
51
Printed Wiring Boards - PANEL Section
52
Schematic Diagram - PANEL Section
53
Printed Wiring Board - POWER Board (Component Side)
54
Printed Wiring Boards - POWER Board (Conductor Side), AC Board
55
Schematic Diagram - POWER Section
56
IC Pin Function Description
64
7 Exploded Views
73
8 Electrical Parts List
79
