MDS-JA20ES
POWER
– 67 –
– 68 –

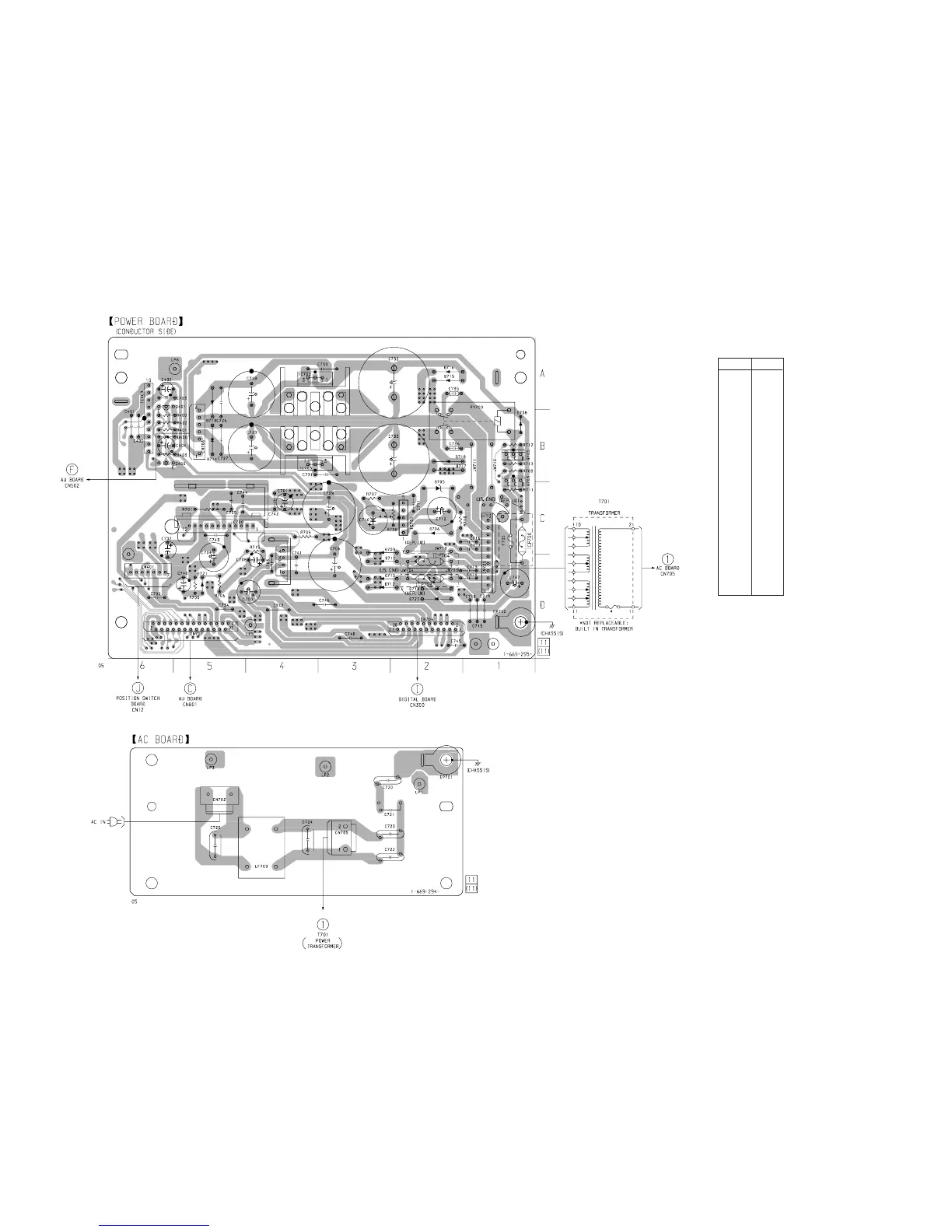

6-18.
PRINTED
WIRING BOARDS – PO
WER Board (Conductor Side),
AC Boar
d –
•
See pa
ge 39 for Circuit Boards Location.
•
Semiconductor
Location
– POWER Baor
d –
Ref. No.
Location
D400
B-6
D705
C-2
D706
C-2
D708
B-1
D709
C-3
D710
D-3
D711
D-3
D712
D-3
D713
A-5
D714
B-5
D715
A-2
D716
A-2
D717
B-2
D718
B-2
D719
D-2
D720
D-2
D721
D-5
IC400
A-6
IC700
C-5
IC701
C-2
IC702
A-4
IC703
B-4
IC704
D-4
Q400
B-6
Q401
B-6
Q703
B-1
Q705
B-1
(Page 51)
(Page 47)
(Page 67)
(Page 58)
(Page 68)
(Page 52)
54
56
