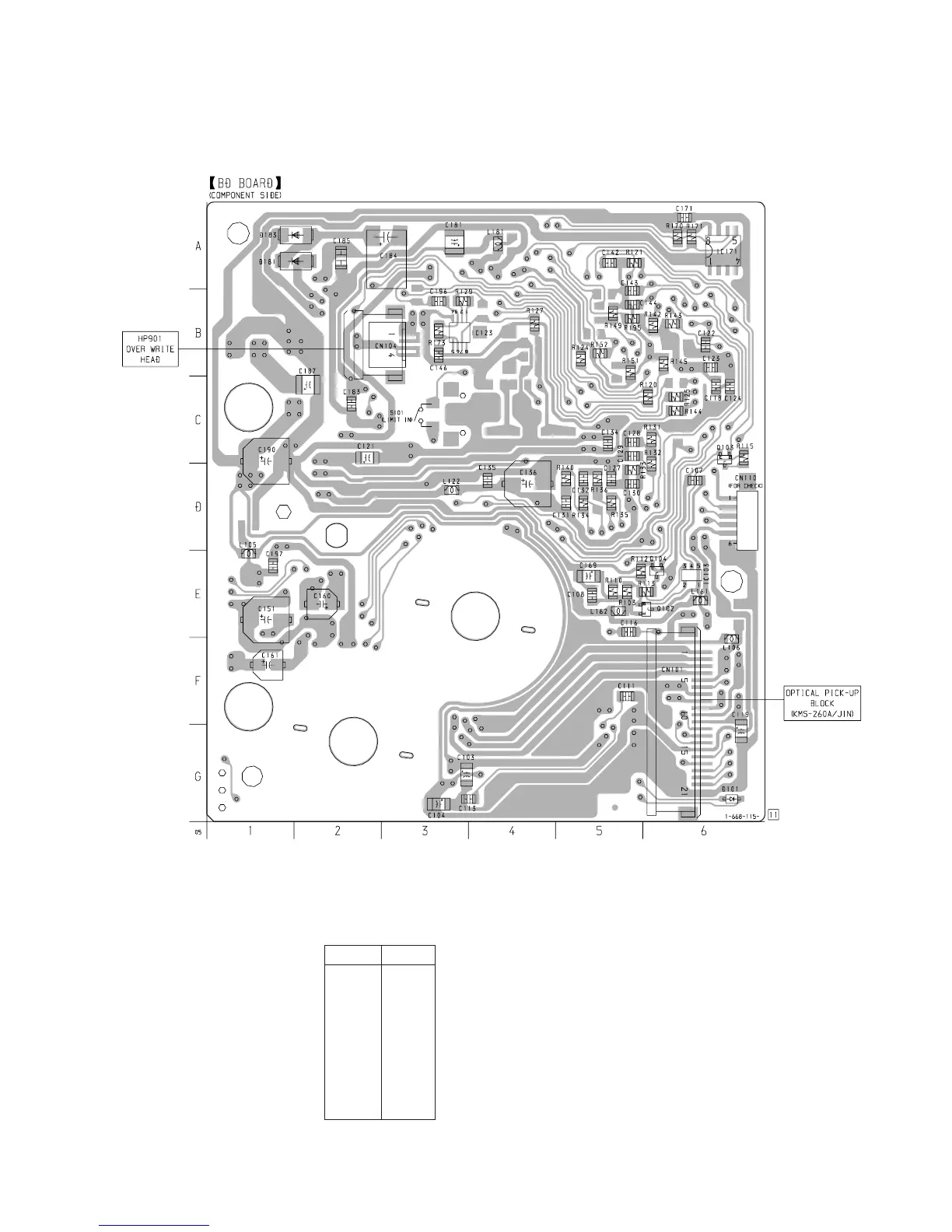

6-4. PRINTED WIRING BOARD – BD Section –
•
See page 39 for Circuit Boards Location.
– 41 –
• Semiconductor
Location
(Component Side)
Ref. No. Location
D101 G-6
D181 A-1
D183 A-1
IC103 E-6
IC123 B-3
IC171 A-6
Q102 E-5
Q103 C-6
Q104 E-6
