Sony MDS-JA20ES Service Manual

MDS-JA20ES
– 61 –
– 62 –

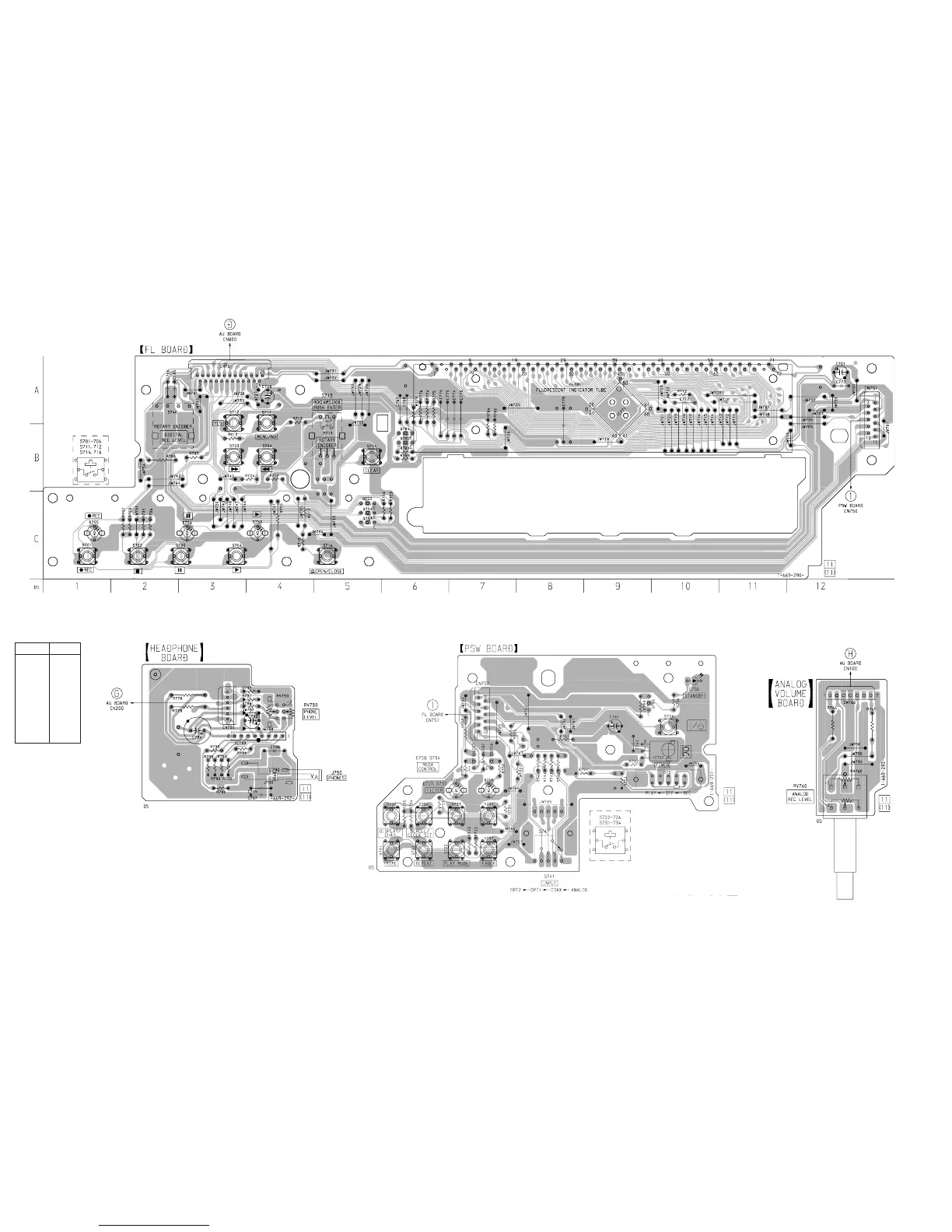

6-15. PRINTED WIRING BOARDS – PANEL Section – • See page 39 for Circuit Boards Location.
• Semiconductor
Location
– FL Board –
Ref. No. Location
D753 C-4
D754 C-3
D755 C-1
IC771 A-9
Q753 C-5
Q754 C-5
Q755 C-5
Q781 B-6
Q782 B-6
(Page 51)
(Page 61)
(Page 52)
(Page 62)
(Page 51)
