Sony MDS-JA20ES Service Manual

MDS-JA20ES
– 43 –
– 44 –

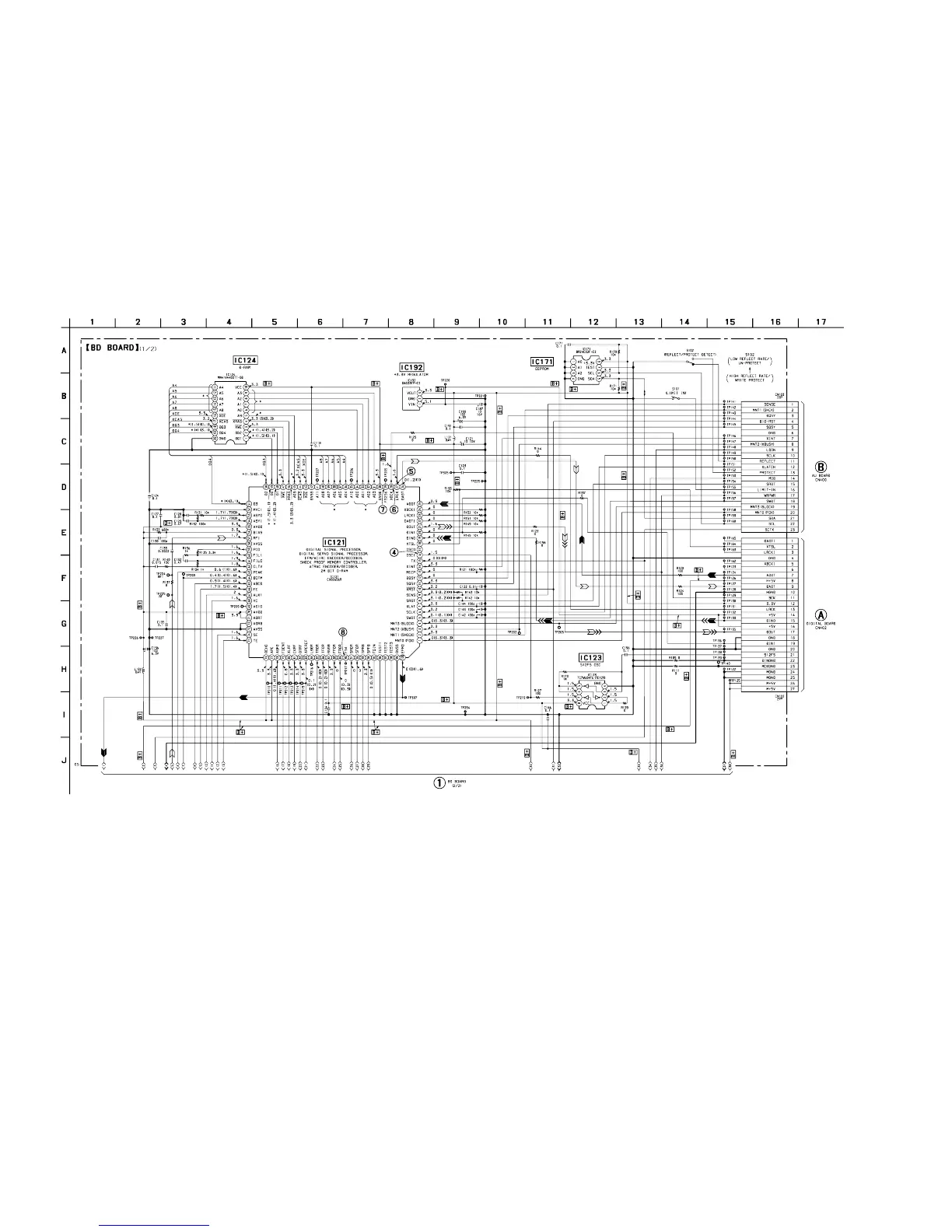

6-5. SCHEMATIC DIAGRAM – BD Section (1/2) – • See page 71 for Waveforms. • See page 73 and 74 for IC Block Diagrams.
(Page 60)
(Page 53)
(Page 46)
