Sony MDS-JA20ES Service Manual

MDS-JA20ES
C135
L206
– 51 –
– 52 –

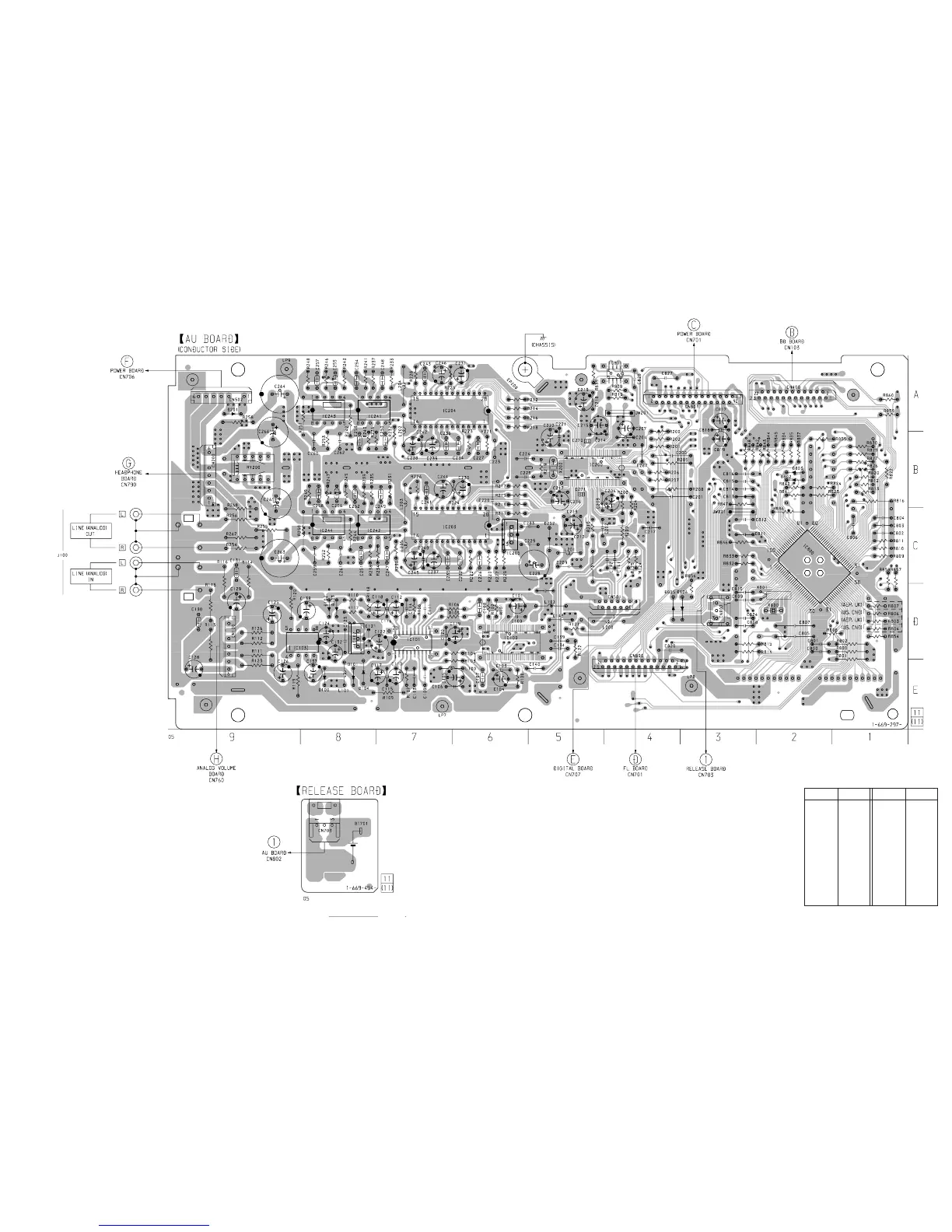

6-10. PRINTED WIRING BOARDS – AUDIO Baord (Conductor Side) , RELEASE Baord – • See page 39 for Circuit Boards Location.
(Page 52)
(Page 62)
(Page 61)
(Page 67)
(Page 42)
(Page 67)
(Page 51)
(Page 58) (Page 61)
Ref. No. Location
Ref. No. Location
• Semiconductor Location
– AU Board –
D100 E-8
D101 E-8
D102 D-8
D103 D-8
D104 E-8
D201 A-9
D202 C-5
D802 B-2
D803 B-2
D805 D-4
D806 D-3
IC100 D-6
IC101 D-7
IC102 D-8
IC103 D-8
IC200 B-5
IC203 C-7
IC204 A-7
IC205 C-6
IC241 A-8
IC242 C-8
IC243 A-8
IC244 C-8
IC800 C-2
IC801 A-4
