Sony MDS-JA333ES Service Manual

20

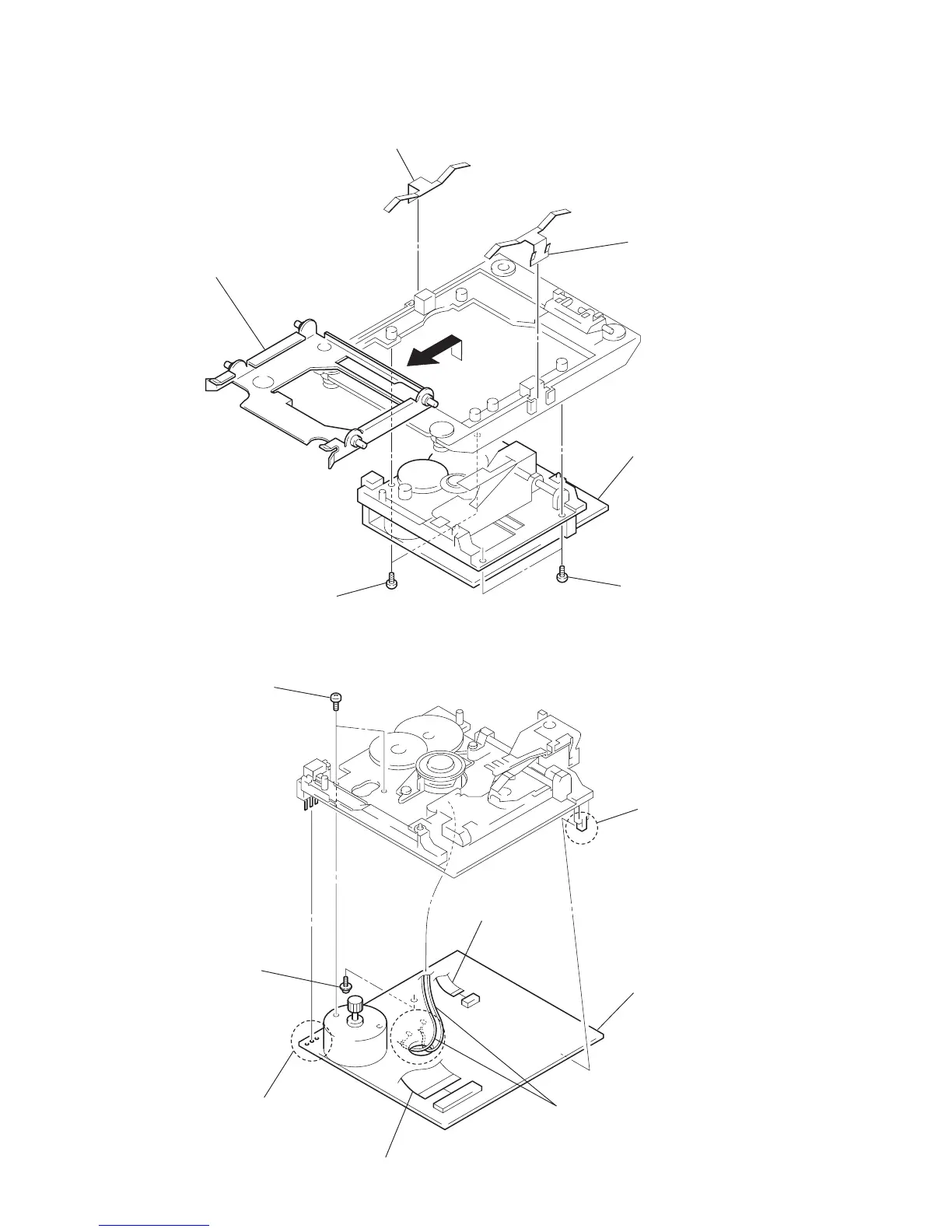

3-8. BASE UNIT (MBU-5J)
3-9. BD BOARD
A
5
Two screws
(BV2.6)
2 Leaf spring (UDR
)
1 Leaf spring (UDL)
4 Two screws
(BV2.6)
6 Base unit
3 Remove the holder assembly
in the direction of the arrow A .
6 Two precision screws
(+P1.7
× 2.5)
5 Tapping screw
(M1.7)
4 Flexible board
(CN104)
3 Flexible board
(CN101)
8 BD board
7 Claw
2 Remove the soldering
from the push switch.
1 Remove the soldering of
the lead wires from
the spindle motor assembly.

Sony MDS-JA333ES Specifications

General

Brand	Sony
Model	MDS-JA333ES
Category	MiniDisc Player
Language	English
