SECTION 7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
CND : Canadian model
73
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts of Color Cabinet’s Color

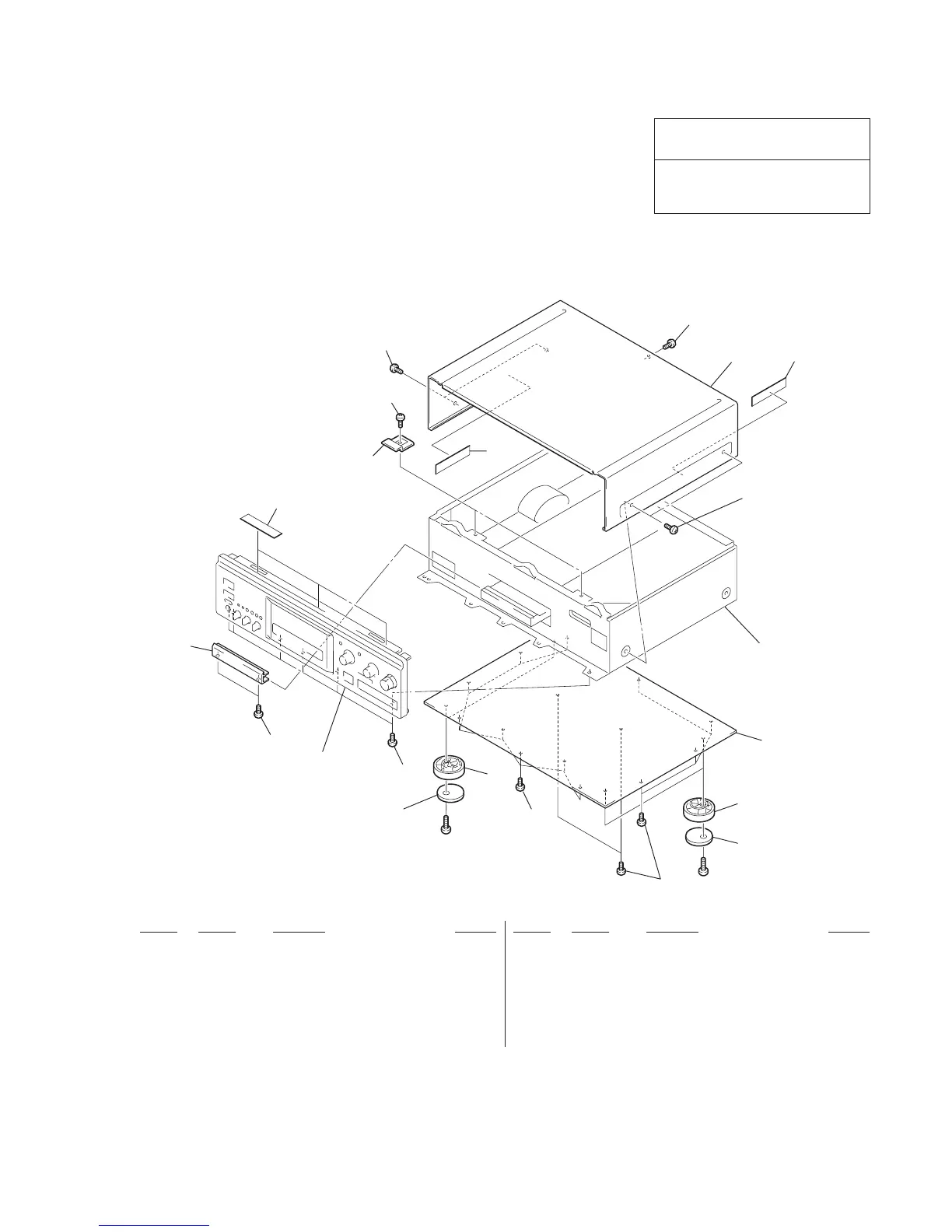

7-1. UPPER CASE ASSEMBLY
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
Front panel section
Chassis section
not supplied
not supplie
#1
#1
1
2
3
3
3
2
5
4
4
7
8
6
6
6
6
5
2
1 4-220-301-01 CASE (GOLD)
1 4-220-301-11 CASE (BLACK)
2 4-227-843-01 SCREW (TP), FLAT HEAD (BLACK)
2 4-227-843-11 SCREW (TP), FLAT HEAD (GOLD)
* 3 4-615-354-01 SPACER
4 4-970-123-01 FOOT (F50180S)
5 4-970-124-01 CUSHION (F50180S)
6 4-929-074-01 SCREW (3X8)
7 3-946-435-21 SCREW (M2.6)
8 4-228-925-01 PANEL, LOADING (GOLD)
8 4-228-925-11 PANEL, LOADING (BLACK)
To Next Page
