Sony MDS-JA333ES Service Manual

74

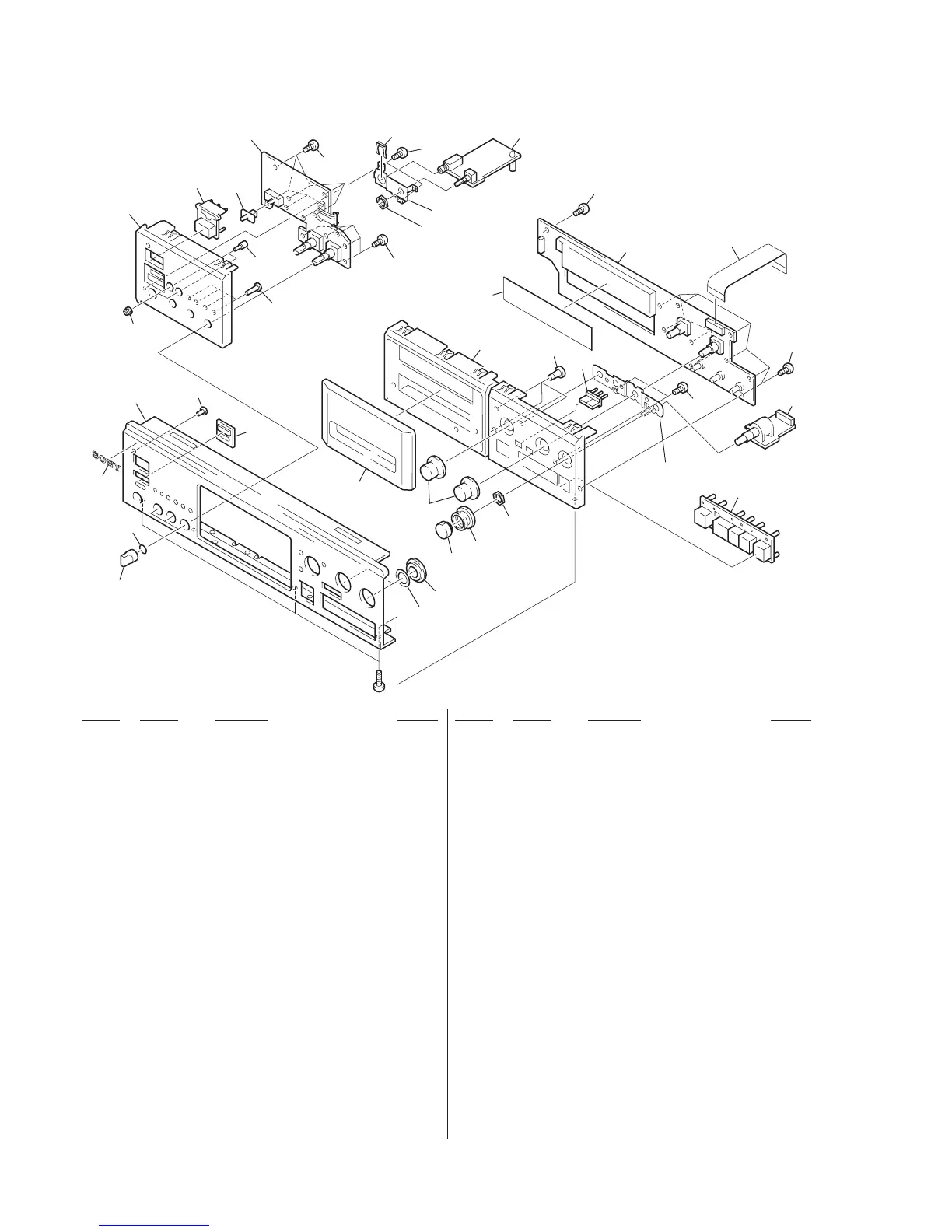

7-2. FRONT PANEL ASSEMBLY
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
not
supplied
not supplied
supplied with
RV351
supplied with
RV651
supplied with J651
51
52
53
54
55
56
57
58
59
62
63
64
67
68
70
71
72
73
74
75
76
65
66
66
66
66
66
66
60
61
69
77
78
79
#11
51 4-228-931-01 PANEL, FRONT (GOLD) (AEP/UK)
51 4-228-931-11 PANEL, FRONT (BLACK) (AEP/UK)
51 4-228-931-21 PANEL, FRONT (BLACK) (US/CND)
52 4-942-568-41 EMBLEM (NO.5), SONY (SILVER),,,(BLACK)
53 4-992-539-01 KNOB (VOL)(GOLD)
53 4-992-539-11 KNOB (VOL)(BLACK)
54 3-354-981-01 SPRING (SUS), RING
55 4-220-312-01 SHEET (RING), ADHESIVE
56 4-220-295-01 RING(REC), ORNAMENTAL (GOLD)
56 4-220-295-11 RING(REC), ORNAMENTAL (BLACK)
57 4-987-520-01 WINDOW (REMOTE CONTROL) (GOLD)
57 4-987-520-11 WINDOW (REMOTE CONTROL) (BLACK)
58 4-987-519-01 INDICATOR (D2)
59 4-220-711-01 INDICATOR (FILTER)
60 4-228-887-01 BASE (L), PANEL (GOLD)
60 4-228-887-11 BASE (L), PANEL (BLACK)
61 4-220-319-01 BUTTON (MODE) (GOLD)
61 4-220-319-11 BUTTON (MODE) (BLACK)
62 4-220-317-01 BUTTON (FILTER)
63 4-998-737-01 BUTTON (POWER) (GOLD)
63 4-998-737-11 BUTTON (POWER) (BLACK)
64 4-971-774-01 KNOB (TIMER) (BLACK)
64 4-971-774-21 KNOB (TIMER) (GOLD)
65 1-678-456-11 PSW BOARD
66 4-951-620-01 SCREW (2.6X8), +BVTP
67 A-4725-247-A HP BOARD, COMPLETE
68 1-792-853-11 WIRE (FLAT TYPE) (25 CORE)
69 A-4725-215-A FL BOARD, COMPLETE (US/CND)
69 A-4725-241-A FL BOARD, COMPLETE (AEP/UK)
70 4-220-324-01 FILTER (FL) (GOLD)
71 4-228-888-01 BASE (R), PANEL (GOLD)
71 4-228-888-11 BASE (R), PANEL (BLACK)
72 4-220-320-01 BUTTON (EDIT) (GOLD)
72 4-220-320-11 BUTTON (EDIT) (BLACK)
73 4-220-321-01 BUTTON (FR) (GOLD)
73 4-220-321-11 BUTTON (FR) (BLACK)
74 1-678-450-11 REC BOARD
75 X-4951-690-1 BUTTON (PLAY) ASSY (GOLD)
75 X-4951-691-1 BUTTON (PLAY) ASSY (BLACK)
76 4-220-292-01 KNOB (AMS) (GOLD)
76 4-220-292-11 KNOB (AMS) (BLACK)
77 4-228-924-01 WINDOW (FL) (GOLD)
77 4-228-924-11 WINDOW (FL) (BLACK)
78 4-220-293-01 KNOB (REC-L) (GOLD)
78 4-220-293-11 KNOB (REC-L) (BLACK)
79 4-220-294-01 KNOB (REC-R) (GOLD)
79 4-220-294-11 KNOB (REC-R) (BLACK)
