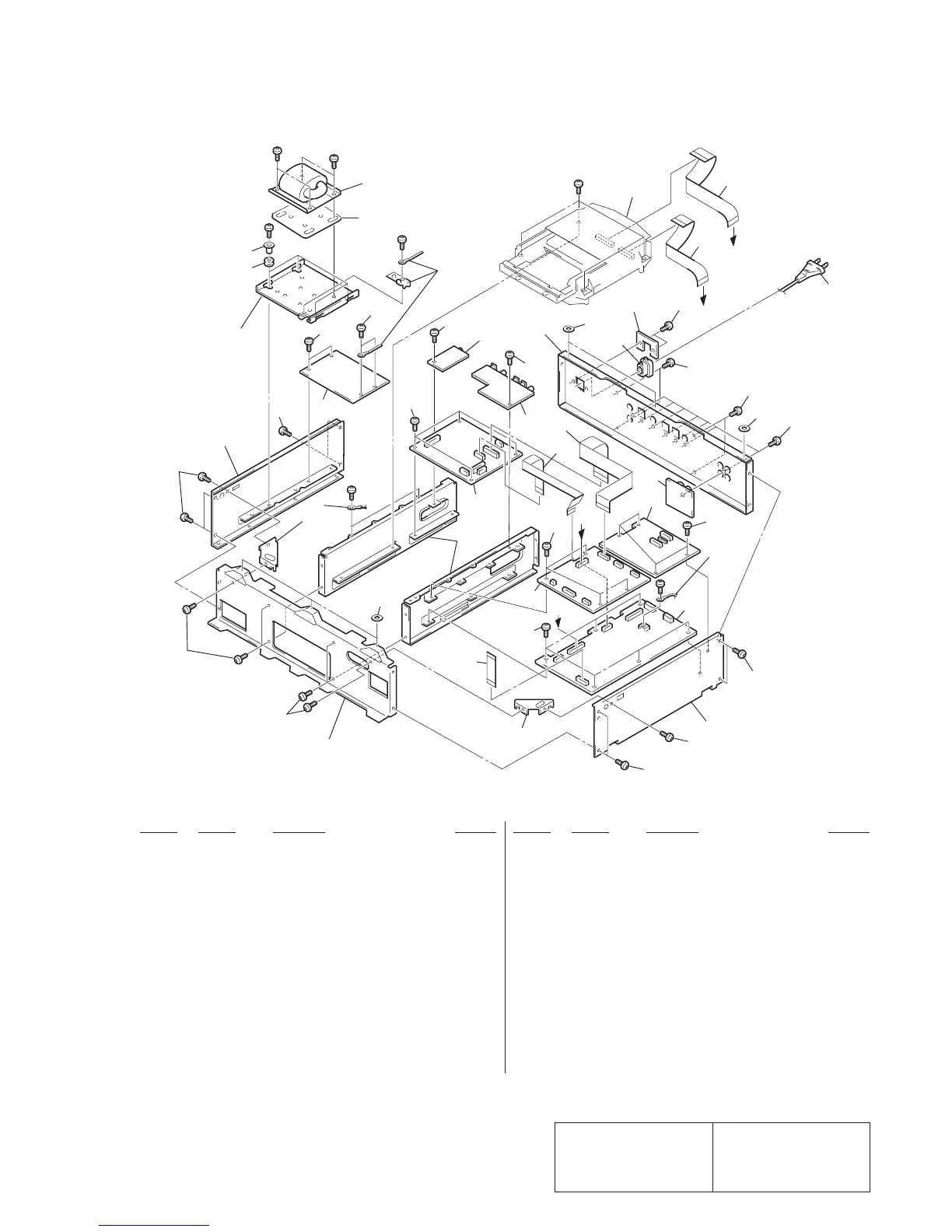

7-3. CHASSIS ASSEMBLY
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
not supplied
not supplied
not supplied
not
supplied
not
supplied
not
supplied
not
supplied
not supplied
not
supplied
not supplied
#10
#2
#2
#3
#3
#3
#3
T801
MDM-6J
101
101
102
101
101
101
101
101
103
104
101
101
105
106
101
101
116
101
101
101
108
109
110
111
112
113
114
115
117
119
120
121
118
107
101
101
101
102
102
101
101
a
b
b
a
101 4-929-074-01 SCREW (3X8)
102 4-971-099-01 WASHER (P)
103 1-678-452-11 AC BOARD
* 104 4-888-798-00 BUSHING, RUBBER
105 4-928-032-01 COLLAR (A)
106 1-678-458-11 CONT-A1 BOARD
107 4-228-930-12 PANEL, BACK (AEP/UK)
107 4-228-930-22 PANEL, BACK (US)
107 4-228-930-32 PANEL, BACK (CND)
108 A-4725-251-A DIO BOARD, COMPLETE
109 A-4725-245-A POW BOARD, COMPLETE
110 1-791-167-11 WIRE (FLAT TYPE)
111 A-4725-223-A DIG BOARD, COMPLETE (US/CND)
111 A-4725-249-A DIG BOARD, COMPLETE (AEP/UK)
112 1-792-854-11 WIRE (FLAT TYPE) (21 CORE)
113 A-4725-243-A DA BOARD, COMPLETE
114 A-4725-244-A AD BOARD, COMPLETE
115 1-678-454-11 PJ BOARD
116 1-792-852-11 WIRE (FLAT TYPE) (23 CORE)
117 3-703-244-00 BUSHING (2104), CORD
* 118 4-923-873-01 BRACKET, CORD STOPPER
119 1-790-202-11 WIRE (FLAT TYPE) (23 CORE)
120 1-791-168-11 WIRE (FLAT TYPE)
0 121 1-558-568-21 CORD, POWER (AEP)
0 121 1-696-586-11 CORD, POWER (UK)
0 121 1-790-154-31 CORD, POWER (US/CND)
0 T801 1-435-605-11 TRANSFORMER, POWER (AEP/UK)
0 T801 1-435-606-11 TRANSFORMER, POWER (US/CND)
