MDS-JA333ES
44
44

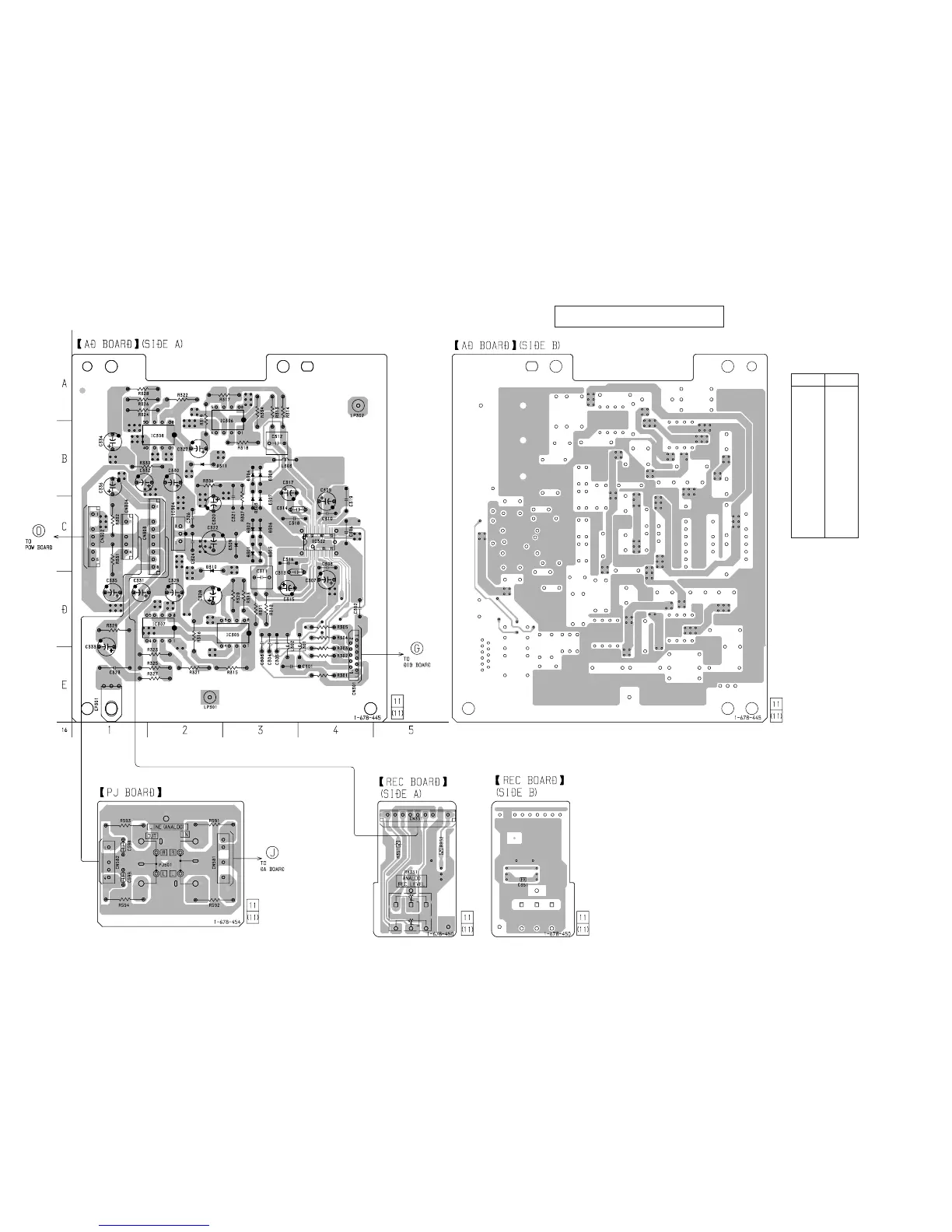

6-8. PRINTED
WIRING BOARD AD SECTION
• Ref
er to page 39 for Note on Printed Wiring Boards.
• Refer to page 39 f
or Circuit Board Location.
Ref.
No.
Location
D301
C-3
D302
C-3
D303
C-3
D304
B-3
D305
C-3
D306
C-3
D307
C-3
D308
B-3
D309
C-3
D310
C-2
D311
B-2
IC302
C-4
IC304
C-2
IC305
D-3
IC306
A-3
IC307
D-2
IC308
B-2
•
Semiconductor
Location
(Page 55)
(Page 50)
(Page 48)
There are fe
w cases that the par
t printed on this
diagram isn’t mounted in this model.
48
50
Table of Contents
Default Chapter
3
Table of Contents
3
1 Servicing Note
6
2 General
12
Remote Control Description
13
Display Window Description
14
Setting the Clock
15
3 Disassembly
16
Case
16
Loading Panel
16
Front Panel Assembly
17
MD Mechanism Deck
17
Tray Assembly
18
BU Holder Assembly
19
Motor (Loading) Assembly (M10)
19
Base Unit (MBU-5J)
20
BD Board
20
Over Light Head (HR901)
21
Mini Disc Device (KMS-260B/J1N)
21
4 Test Mode
22
5 Electrical Adjustments
27
IC Block Diagrams
37
6 Diagrams
42
Block Diagrams
42
Main Section
42
Display/Power Supply Section
43
Circuit Board Location
44
Printed Wiring Board BD Section
45
Schematic Diagram BD Section (1/2)
46
Schematic Diagram BD Section (2/2)
47
Schematic Diagram BD Switch Section
48
Printed Wiring Board BD Switch Section
49
Schematic Diagram AD Section
50
Printed Wiring Board DIO Section
51
Schematic Diagram DIO Section
52
Printed Wiring Board da Section
53
Schematic Diagram da Section
54
Printed Wiring Board DIGITAL Section
55
Schematic Diagram Digital Section
56
Schematic Diagram Hp Section
57
Printed Wiring Board Hp Section
58
Schematic Diagram
59
POWER Section
59
Printed Wiring Board Power Section
60
Printed Wiring Board PANEL Section
61
Schematic Diagram PANEL Section
62
Printed Wiring Board Ac Section
63
Schematic Diagram Ac Section
64
IC Block Diagrams
66
IC Pinfunction Description
71
7 Exploded Views
78
Upper Case Assembly
78
Front Panel Assembly
79
Chassis Assembly
80
Mechanism Deck Assembly-1 (MDM-6J)
81
Mechanism Deck Assembly-2 (MDM-6J)
82
Base Unit (MBU-5J)
83
8 Electrical Parts List
84
