MDS-JA333ES
56
56
(Page 50)

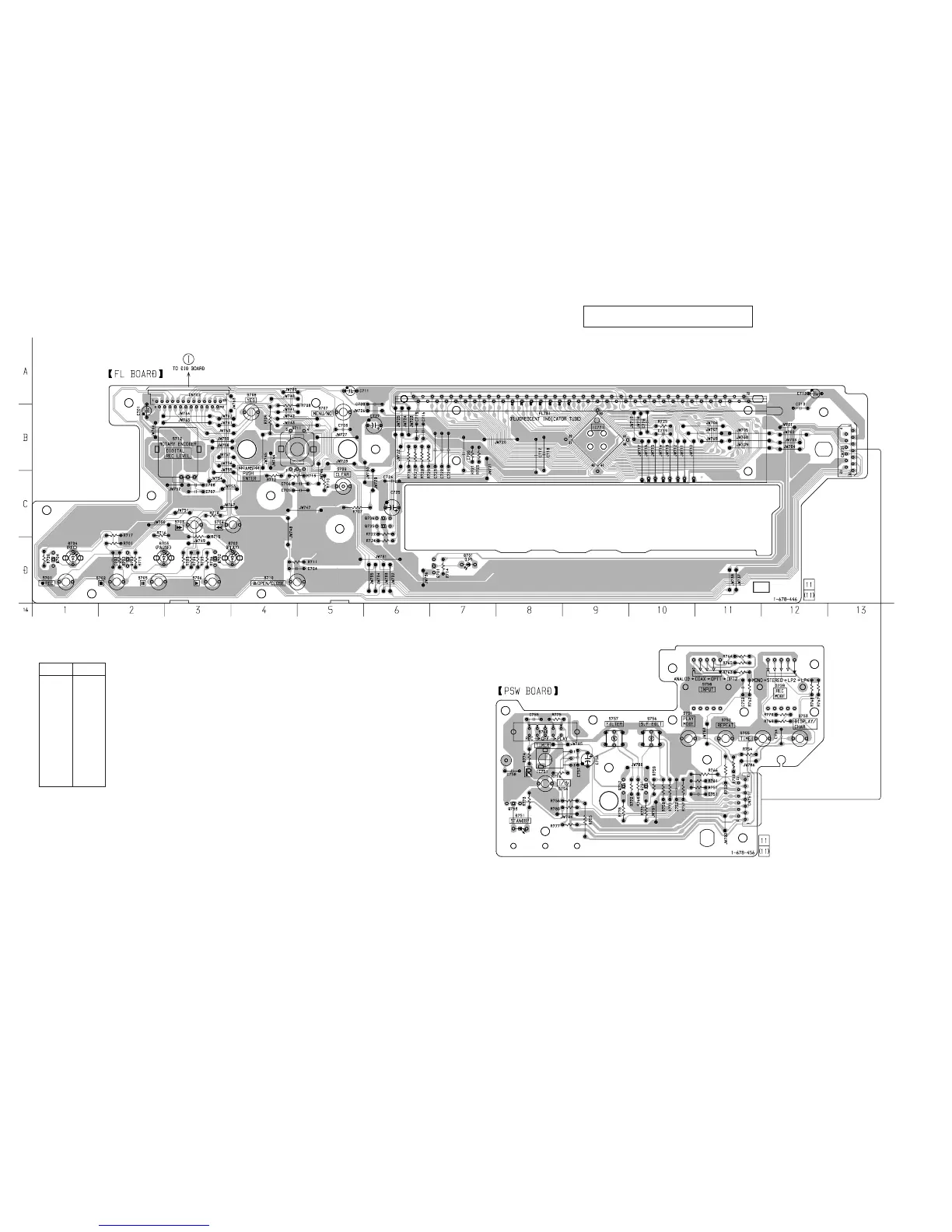

6-20. PRINTED
WIRING BOARD P
ANEL SECTION
• Refer to page 39 for Note on Printed
Wiring Boards. • Ref
er to page 39 for Circuit Board Location.
Ref.
No.
Location
D701
D-7
D702
D-3
D703
D-2
D704
D-1
IC771
B-9
Q701
D-7
Q702
D-3
Q703
D-2
Q704
D-1
Q705
C-6
Q706
C-6
•
Semiconductor
Location
There are few cases that the part printed on this
diagram isn’t mounted in this model.
