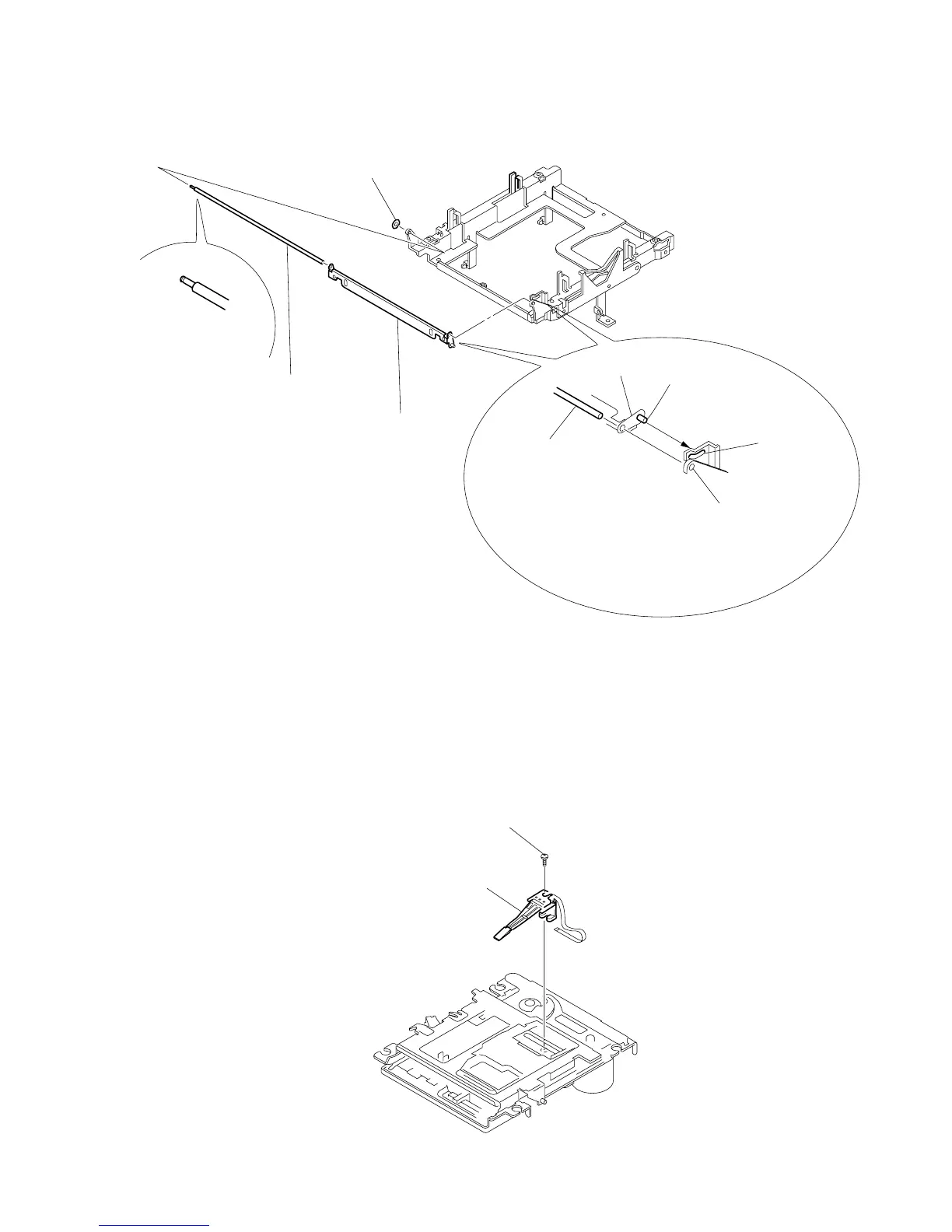

3-5. SHUTTER ASSEMBLY
3-6. OVER WRITE HEAD
1 Stepper washer
3 Shutter assembly
2 Shaft (shutter)
Shutter assembly
Shaft (lid)
Hole B
Hole A
Shaft (shutter)
When installing, install the shaft
(shutter) into the hole A as shown
in the figure before installing the
shaft (lid) into the hole B.
1 Precision screw (P1.7 × 6)
2 Over write head
