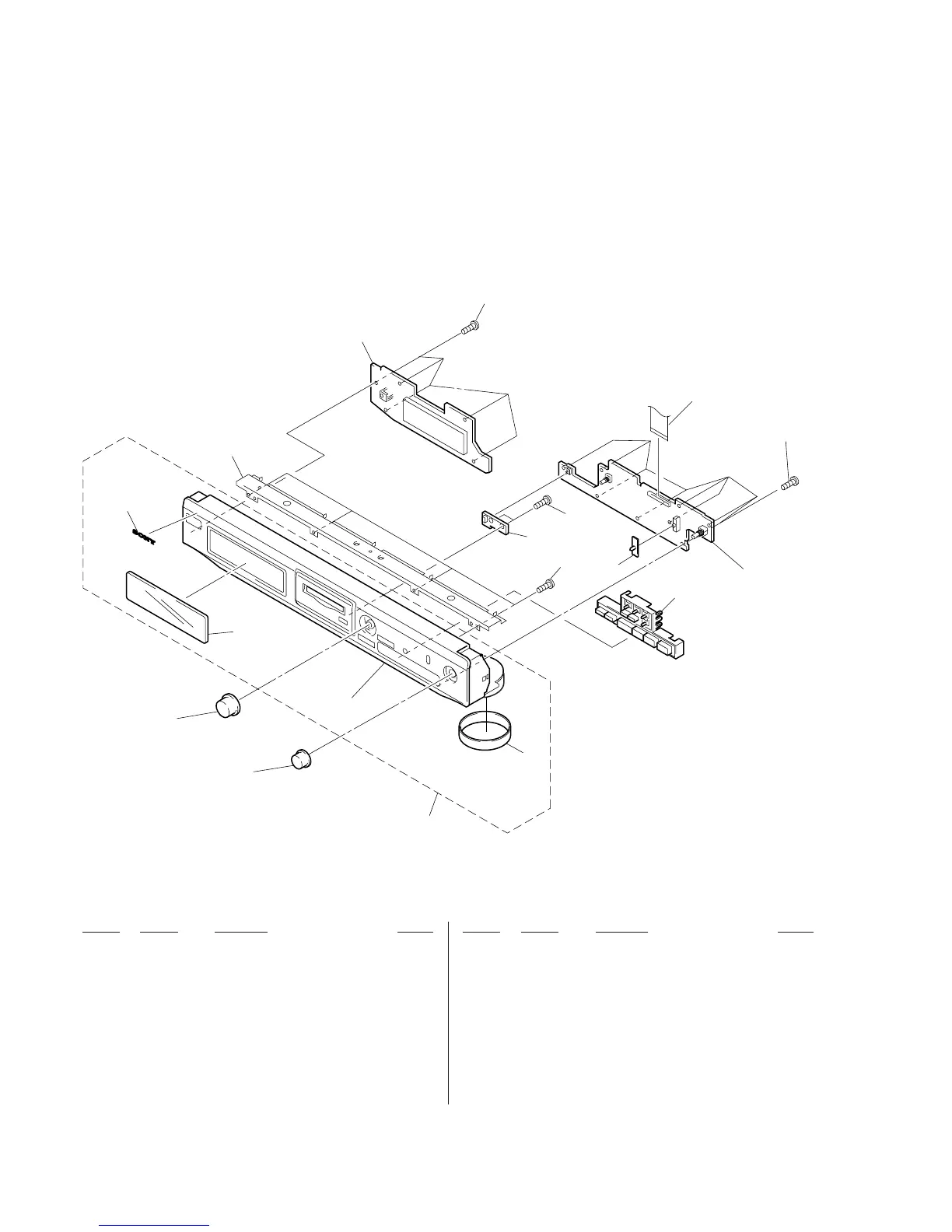

7-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
57
not supplied
56
58
57
59
61
60
57
57
62
63
51
52
53
54
55
not supplied
51 X-4949-987-1 PANEL ASSY, FRONT (US,CND)
51 X-4950-355-1 PANEL ASSY, FRONT (AEP)
52 4-983-656-01 KNOB (REC)
53 4-983-657-01 KNOB (AMS)
54 4-983-651-01 WINDOW (DISPLAY)
55 4-963-404-21 EMBLEM (5-A), SONY
* 56 A-4724-246-A DISPLAY BOARD, COMPLETE (US,CND)
* 56 A-4724-275-A DISPLAY BOARD, COMPLETE (AEP)
57 4-951-620-01 SCREW (2.6X8), +BVTP
58 1-777-276-11 WIRE (FLAT TYPE) (29 CORE)
* 59 A-4724-247-A SW BOARD, COMPLETE (US,CND)
* 59 A-4724-276-A SW BOARD, COMPLETE (AEP)
60 3-917-216-21 KNOB (TIMER)
61 4-983-653-41 BUTTON (MAIN)
* 62 1-661-893-11 EJECT SW BOARD
63 4-977-593-11 RING (DIA. 50), ORNAMENTAL (AEP)
To Next Page
