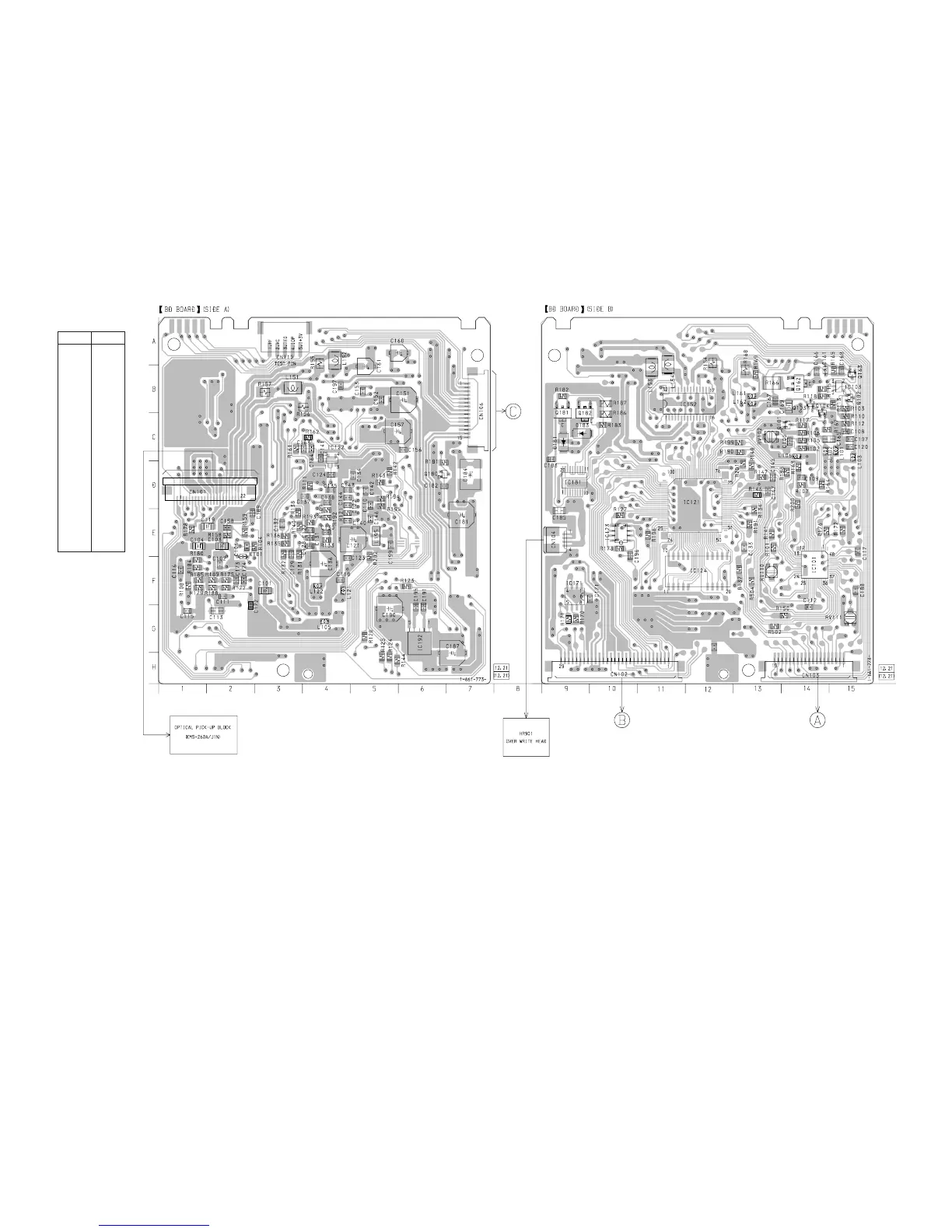

6-3. Printed Wiring Board — BD Section — • See page 25 for Circuit Boards Location.
Ref. No. Location
D101 E-3
D181 C-9
D183 C-9
IC101 F-14
IC103 B-15
IC121 D-12
IC122 C-4
IC123 E-10
IC124 F-12
IC152 B-12
IC171 F-9
IC181 D-9
IC192 G-6
Q101 C-14
Q102 B-15
Q103 B-14
Q104 B-14
Q162 B-14
Q163 B-15
Q180 D-6
Q181 B-9
Q182 B-9
• Semiconductor
Location
(Page 45)
(Page 33) (Page 33)
16
