— 63 —
SECTION 7
EXPLODED VIEWS
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE)
Â
Cabinets color
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
CND : Canadian model
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

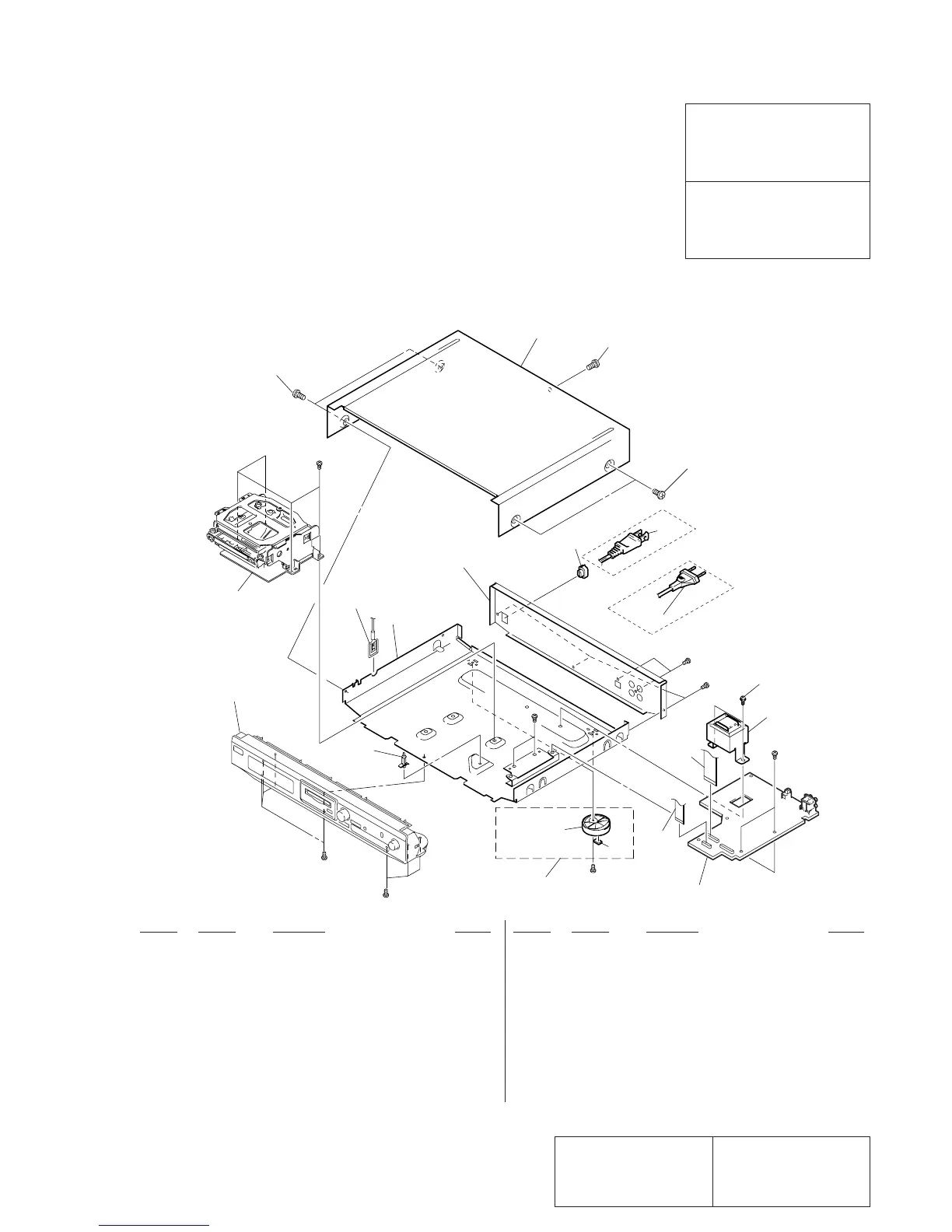

7-1. MAIN SECTION
3
2
2
4
12
13
US,CND
MODEL
AEP
MODEL
6
#2
7
9
8
10
not supplied
TR301
11
#1
#1
#1
#1
1
not supplied
not supplied
MDM-3GC
FRONT PANEL
#2
2
#1
5
* 1 3-703-353-05 SUPPORT, PC BOARD
2 4-210-291-01 SCREW (CASE 3 TP2)
3 4-983-661-01 CASE (408226)
4 3-703-571-11 BUSHING (S) (4516), CORD
* 5 4-990-651-11 PANEL, BACK (US)
* 5 4-990-651-41 PANEL, BACK (CND)
* 5 4-990-651-51 PANEL, BACK (AEP)
6 4-886-821-11 SCREW, S TIGHT, +PTTWH 3X6
7 1-777-275-11 WIRE (FLAT TYPE) (29 CORE)
* 8 A-4724-249-A MAIN BOARD, COMPLETE (US,CND)
* 8 A-4724-278-A MAIN BOARD, COMPLETE (AEP)
9 1-777-278-11 WIRE (FLAT TYPE) (19 CORE)
10 4-977-358-11 CUSHION
11 X-4947-207-1 FOOT ASSY (F50150S) (AEP)
11 X-4947-208-1 FOOT ASSY (F50150S) (US,CND)
! 12 1-558-945-21 CORD, POWER (POLAR.SPT-1)(US,CND)
! 13 1-575-651-91 CORD, POWER (AEP)
! TR301 1-429-735-11 TRANSFORMER, POWER (US,CND)
! TR301 1-431-426-21 TRANSFORMER, POWER (AEP)
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
To Next Page
