— 12 —

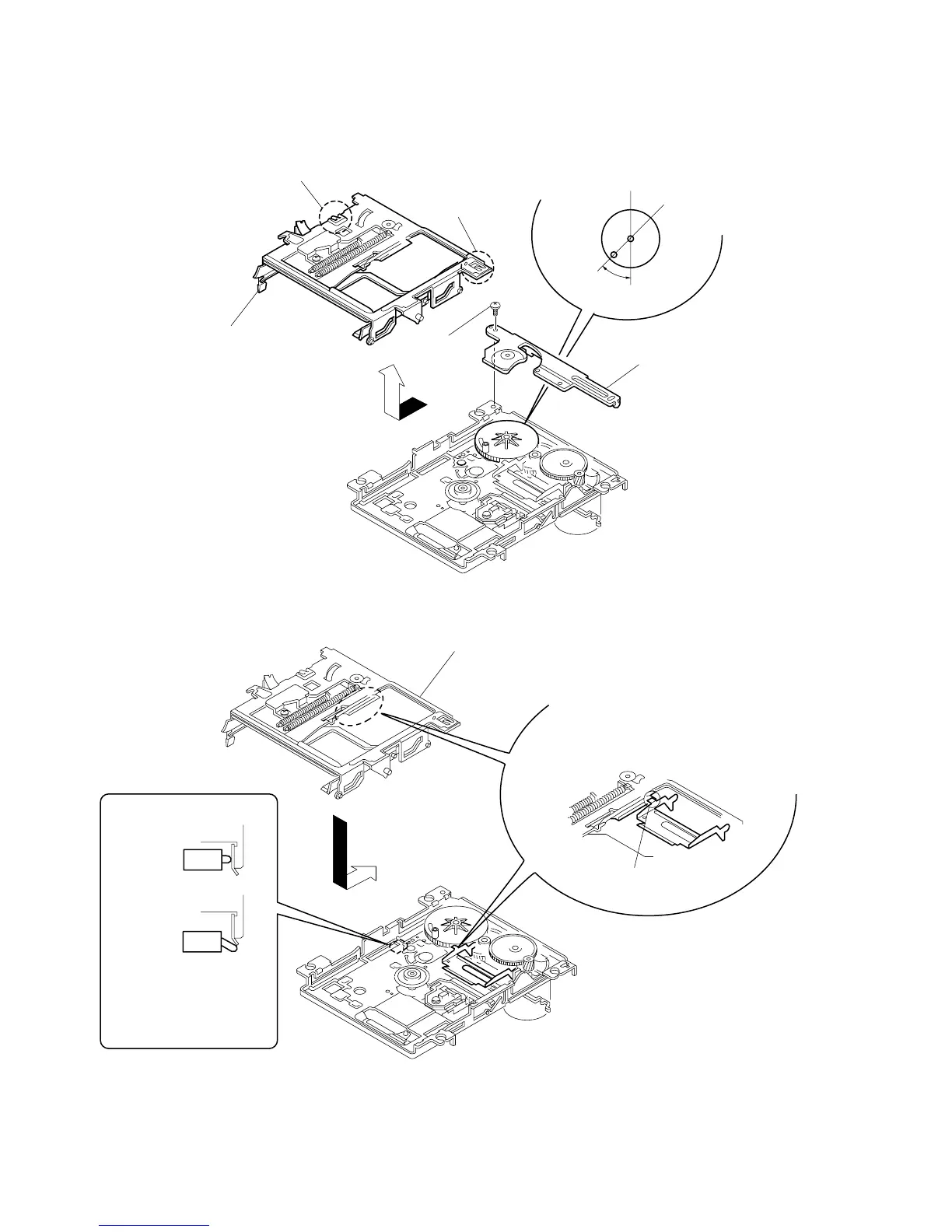

3-7. SLIDER COMPLETE ASSEMBLY
Note for Installation of Slider Complete Assembly
3
Set the shaft of Gear (LA) to be at the
position in the figure.
2
Retainer (gear)
1
Screw
(M1.7
×
2)
claw
claw
4
Remove the slider complete assembly
in the direction of arrow with putting
out of two claws.
45
°
Install the part A of lever (head up)
to pass over the slider complete assembly.
Part A
Take care not to damage
the detective switch.
Slider assembly
OK
NG
