— 9 —
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

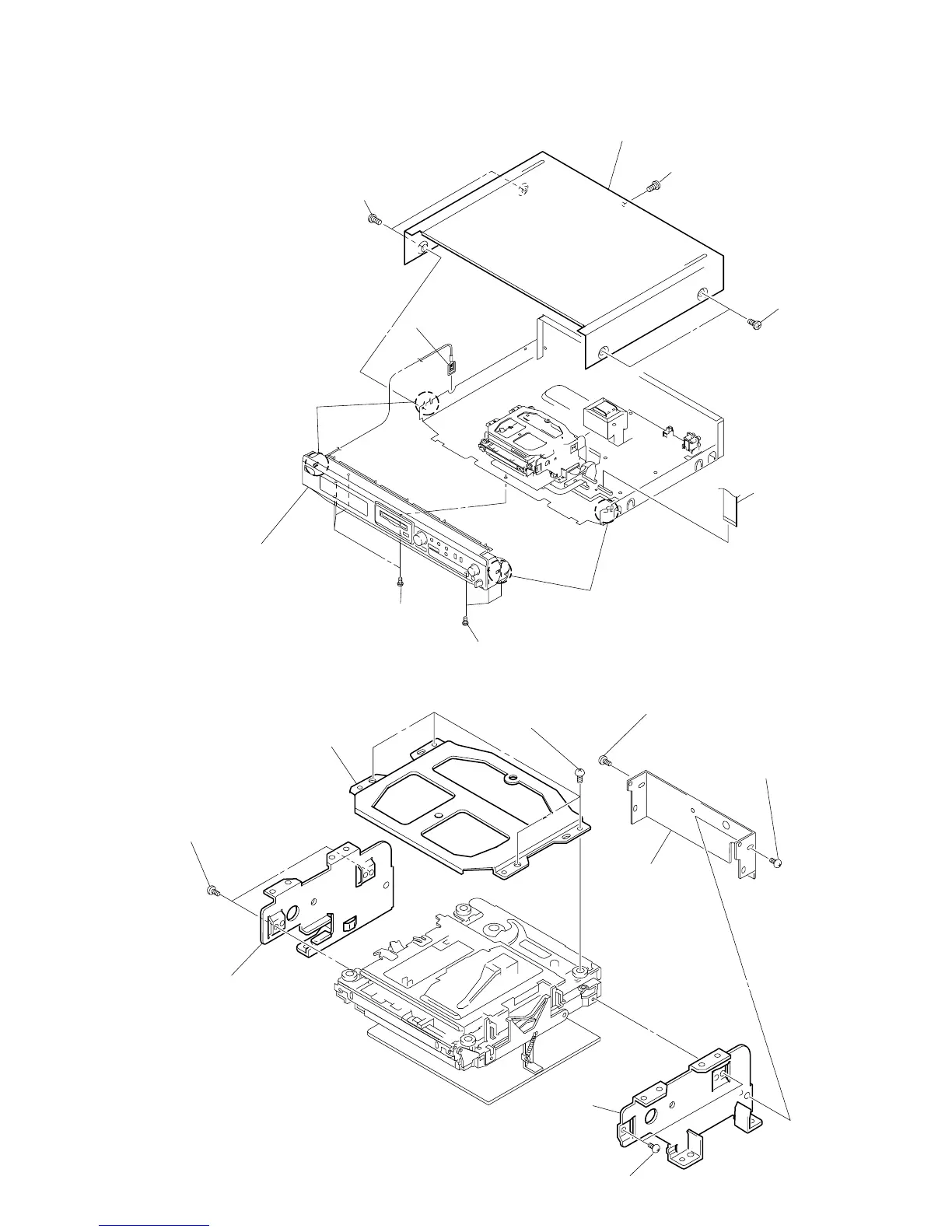

3-1. CASE AND FRONT PANEL ASSEMBLY
3-2. BRACKET (T), (L) AND (R)
4 Case
3 Screw
(case 3 TP 2)
2 Two screws
(Case 3 TP 2)
6 Flat type wire
(CN303)
claw
8 Four screws
(BVTP3
× 8)
9 Remove the front panel assembly
releasing two claws.
claw
1 Two screws
(Case 3 TP 2)
7 Three screws
(BVTP3
× 8)
5 Ground terminal
1 Four screws
(BVTT2
× 3)
4 Screw (BVTT2 × 3)
3 Screw (BVTT2 × 3)
5 Bracket (joint)
2 Bracket (T)
6 Two screws
(BVTT2
× 3)
7 Bracket (L)
9 Bracket (R)
8 Two screws
(BVTT2
× 3)
