Sony MHC-V21 - Top Panel Section

MHC-V21/V21D
12
Ver. 1.1

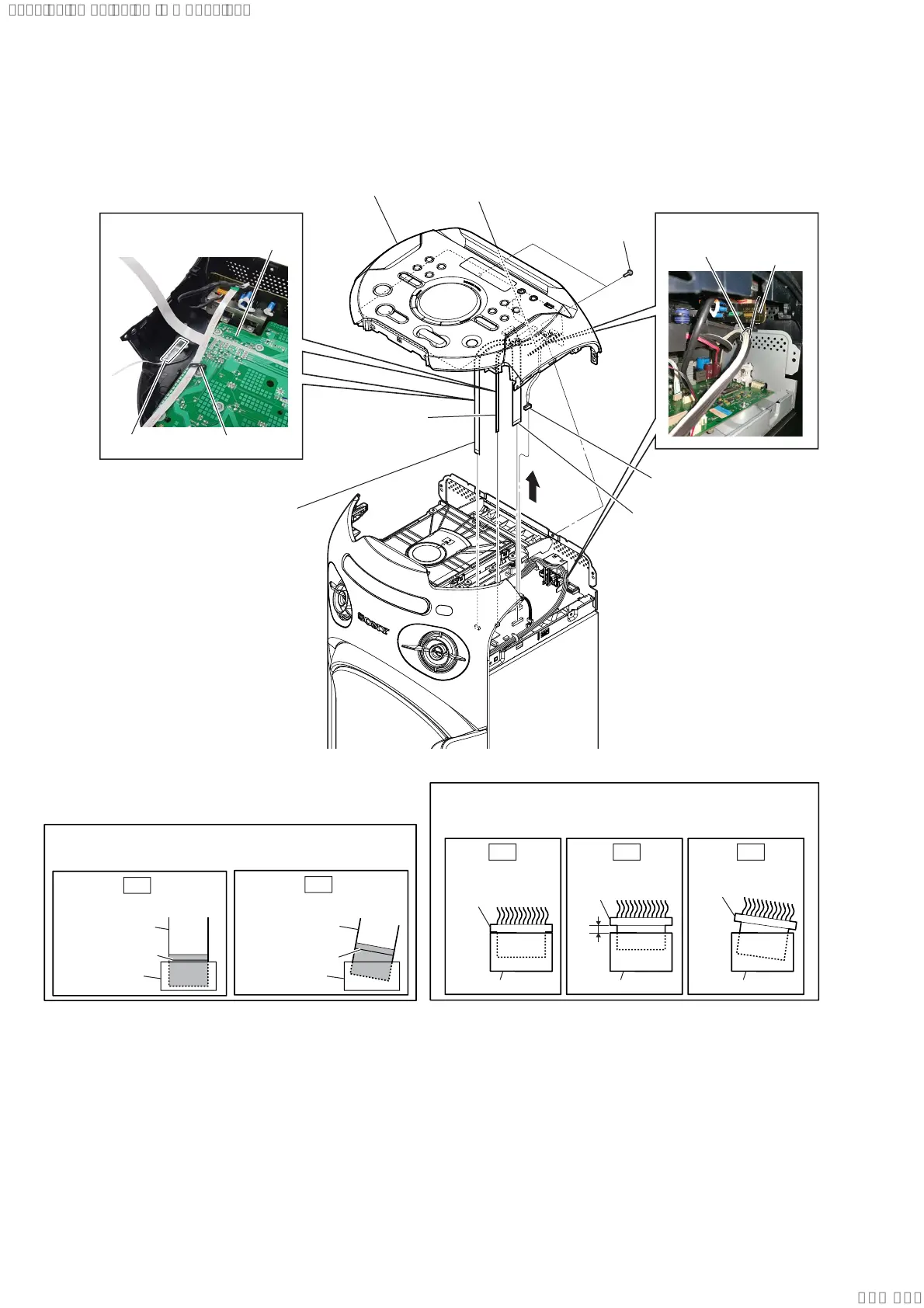

2-3. TOP PANEL SECTION
1 two screws
(+BVTP 3 u 8)
filament tape
clamp (N)
PANEL board
MIC USB
board
pin, lead
:LUHVHWWLQJ
:LUHVHWWLQJ
5 flexible flat cable
(7 core) (CN601)
4 flexible flat cable
(6 core) (CN105)
3 flexible flat cable
(15 core) (CN102)
6 Remove the wire
from pin, lead.
2 CN451 (5P)
7
8 panel, top section
Note 2: When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
Note 1: When installing the flexible flat cable, ensure that
the colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
flexible flat cable flexible flat cable
connectorconnector
OK
NG
OK NG NG
