Sony MHC-V21 - Top Panel Section

52
MHC-V21/V21D
Ver. 1.1
301 4-732-980-01 KNOB, VOLUME
302 1-912-719-11 FLEXIBLE FLAT CABLE (15 CORE)
0
303 A-2196-509-A PANEL BOARD, COMPLETE
304 1-912-625-11 FLEXIBLE FLAT CABLE (7 CORE)
305 A-2196-511-A MIC USB BOARD, COMPLETE
306 2-677-839-01 +PWH 3X8 (SUMITITE)
307 1-912-717-11 FLEXIBLE FLAT CABLE (6 CORE)
308 4-586-705-21 DOUBLE ADHESIVE TAPE
309 A-2092-220-A NFC BOARD, COMPLETE
310 X-2595-931-1 PANEL, TOP ASSY (V21D)
310 X-2596-454-1 PANEL, TOP ASSY (V21)
EN4000 1-493-008-11 ENCODER, ROTARY (VOLUME/DJ CONTROL)
ND4000 1-483-549-11 VACUUM FLUORESCENT DISPLAY
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
ns not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

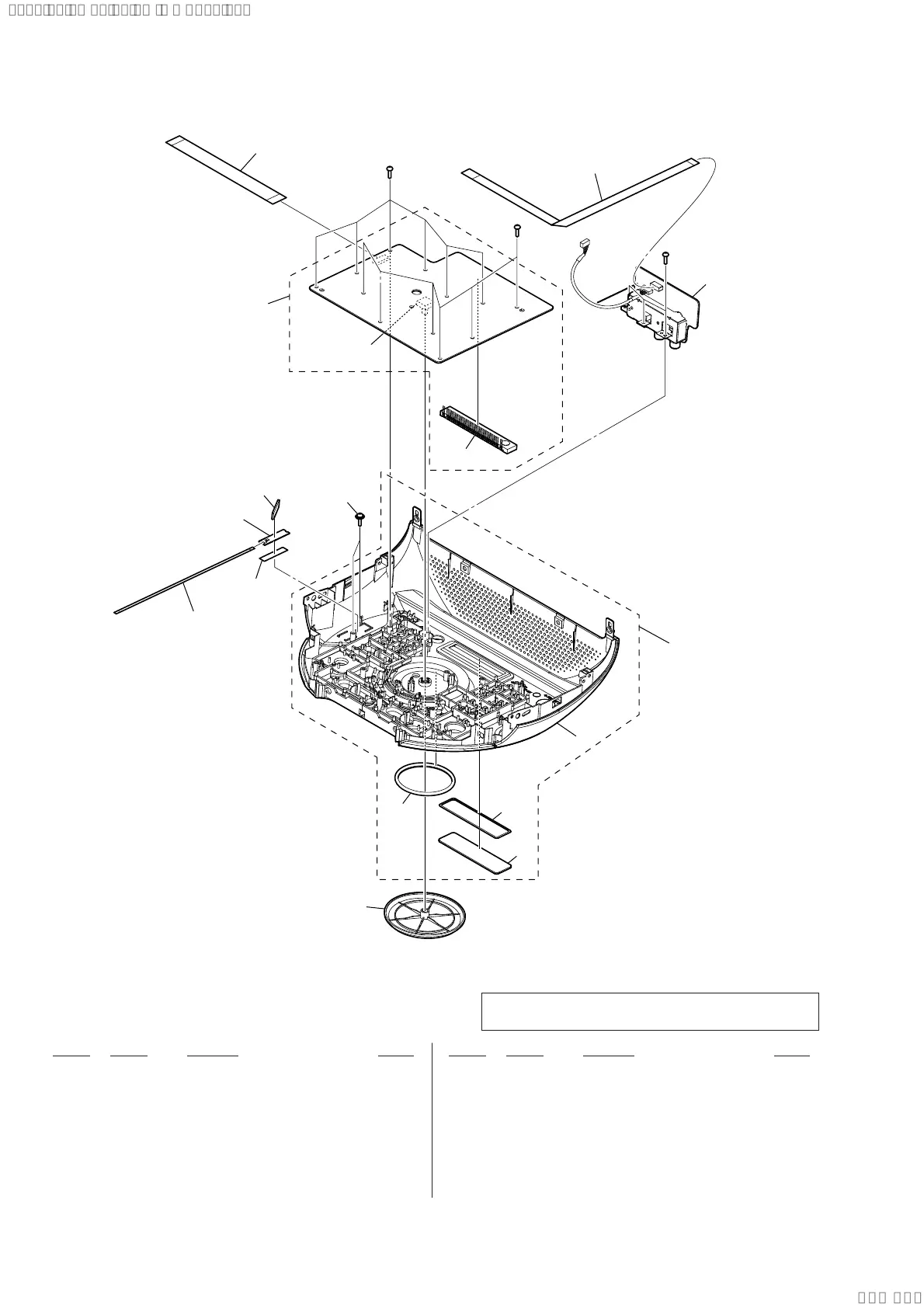

7-7. TOP PANEL SECTION
Note: If fl exible fl at cable is replaced, install it after bending
it in the same form as that before replacement.
EN4000
301
ns
ns
ns
ns
ns
#1
#1
#1
ND4000
303
307
306
309
310
308
305
304
302
