Sony MHC-V21 - MOTHERBOARD Board Section

48
MHC-V21/V21D
Ver. 1.1

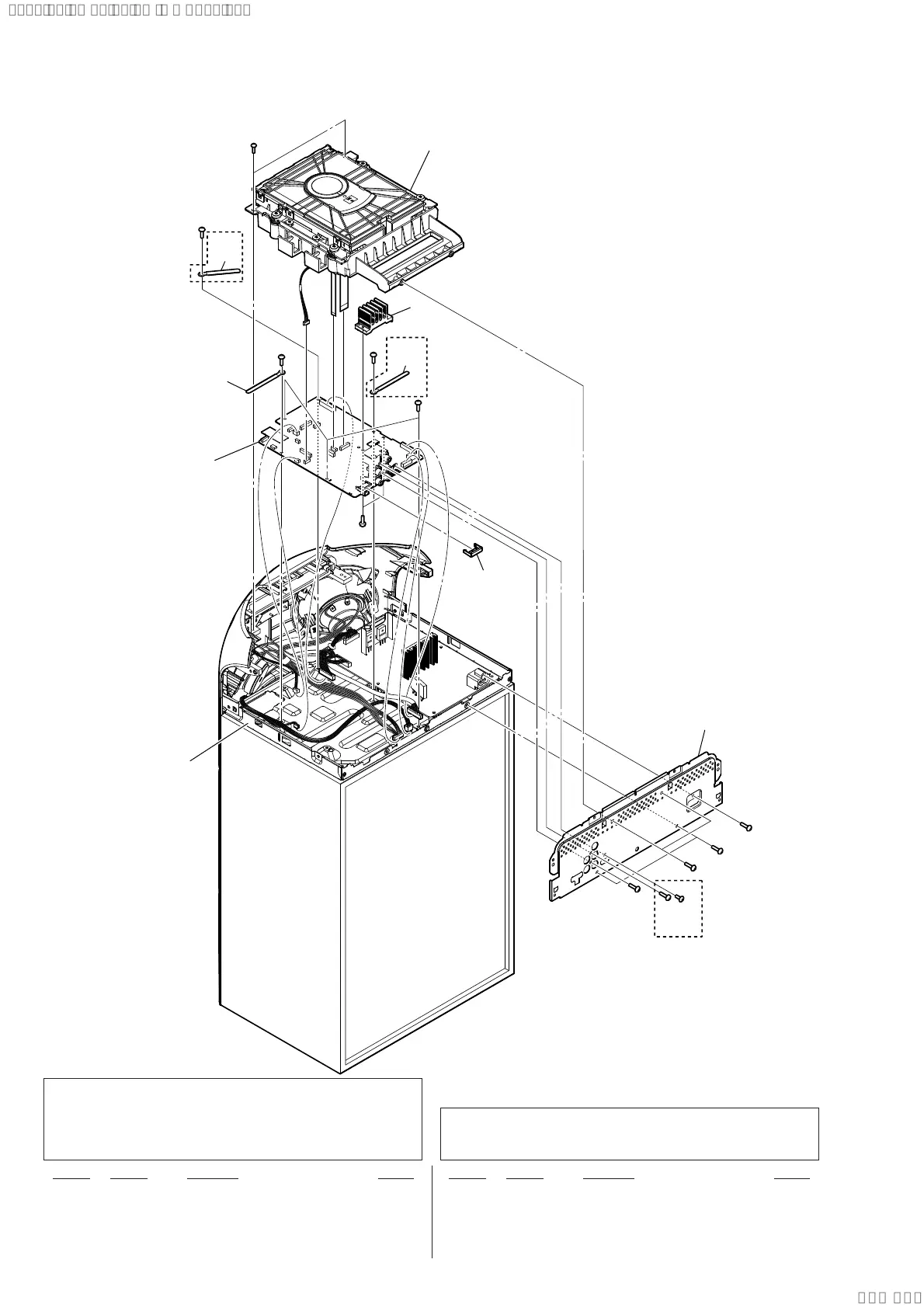

7-3. MOTHERBOARD BOARD SECTION
101 4-731-228-11 COVER, SERVICE
9 102 A-2199-353-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (V21D)
9 102 A-2199-364-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (V21)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-682-547-04 SCREW +B 3X6 (V21D)
ns not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note 1: When the MOTHERBOARD board is replaced, spread
the compound referring to “NOTE OF REPLACING THE
IC2002 ON THE MOTHERBOARD BOARD AND THE
COMPLETE MOTHERBOARD BOARD” on servicing
notes (page 7).
Note 2: When the complete MOTHERBOARD board is replaced,
be sure to refer to “DESTINATION SETTING METHOD”
on page 5.
ns
ns
ns
ns
ns
CDM section
#1
#1
#1
#1
#1
#1
#2
#1
#1
#1
#1
#1
102
101
chassis section
(V21)
(V21)
(V21D)
SYSSET
