Sony MHC-V21 - Service, Optical Device (7 G), Flexible Flat Cable

MHC-V21/V21D
16
Ver. 1.1

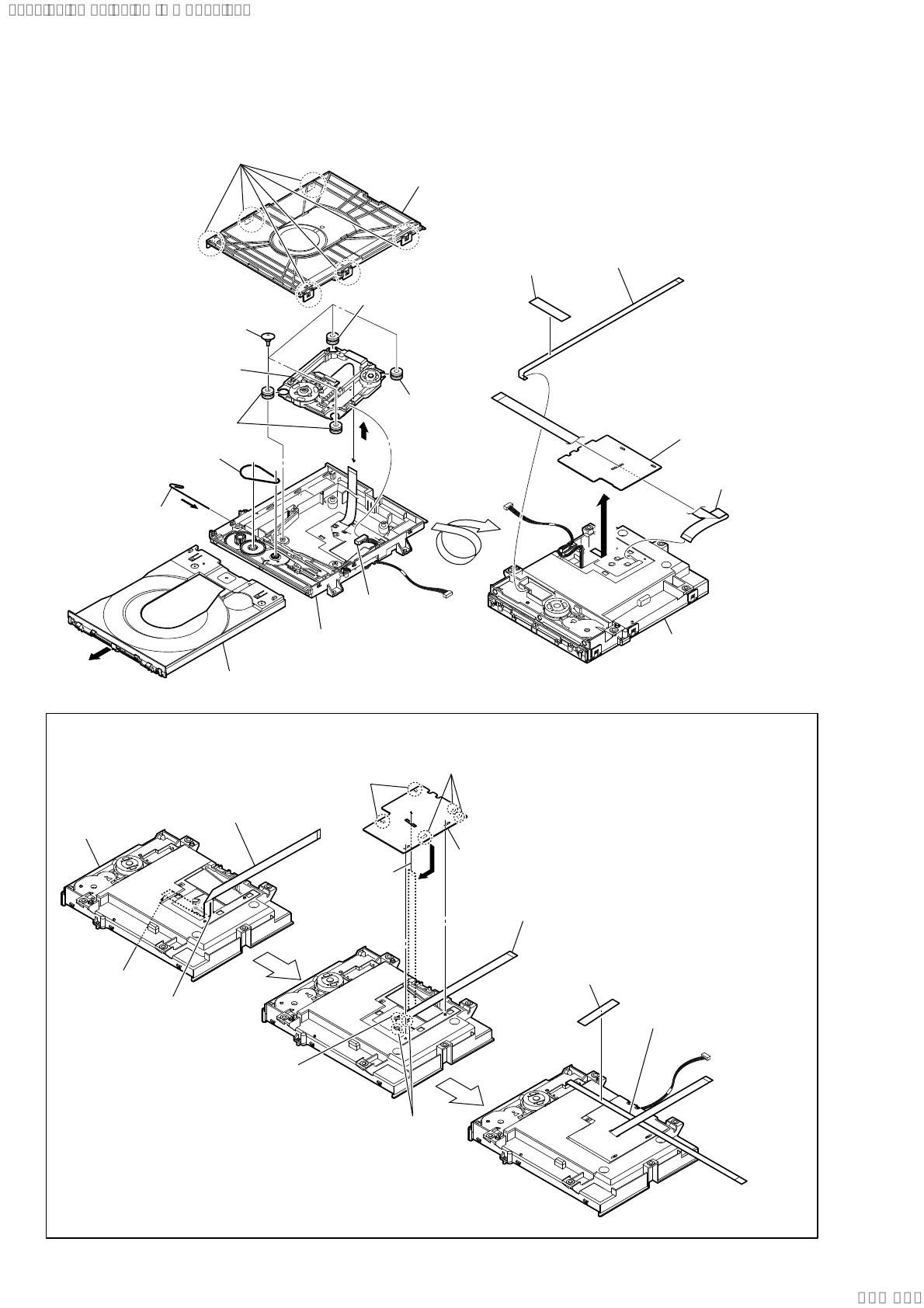

2-7. SERVICE, OPTICAL DEVICE (7G), FLEXIBLE FLAT CABLE
Under the guide
Under the guide
(Fold area)
,QVWDOODWLRQRIIOH[LEOHIODWFDEOHFRUHDQGIOH[LEOHIODWFDEOHFRUH
Note:
This illustration sees the loading assy (T) from bottom side.
1 flexible flat cable
(24 core)
2 Through the hole
3 Through the hole
4
terminal face
loading assy (T)
7 flexible flat cable
(24 core)
6 holder, FFC
5 three claws
5 two claws
9 flexible flat cable
(5 core)
8 filament tape
7 four insulator screws
9 connector
qa insulator
6 belt
3 Insert the thin
wire (clip etc.).
5 tray
qs service, optical
device (7G)
qa insulator
qa insulator
1 six claws
4
0
8
2 chuck holder assy (T)
qd base, lo assy
qh
qk flexible flat cable
(24P)
qg flexible flat cable
(5P)
qf filament tape
– Bottom view –
loading assy (T)
qj holder, FFC
