Sony MHC-V21 - Loading Panel Assy

MHC-V21/V21D
13
Ver. 1.1

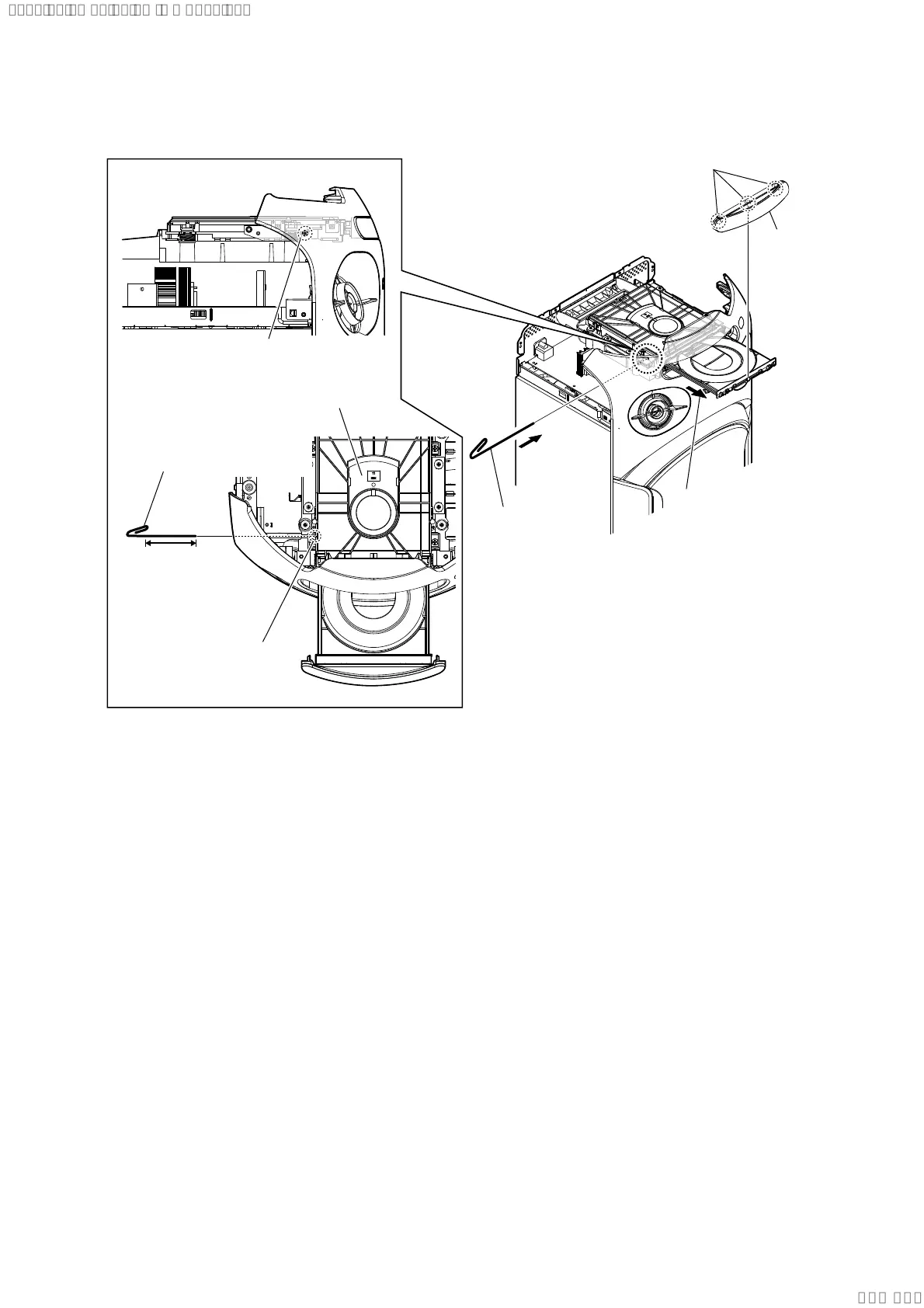

2-4. LOADING PANEL ASSY
3 three claws
4 panel, loading
assy
1 Insert the clip etc.
2 Draw out the tray.
– Top view –
DVD mechanism
deck
tray
8 cm or more
Insert the clip etc. processed to the
length of 8 cm or more in the hole
on the side of the CDM and push.
Note: Push after it inserts it
in this hole well.
– Left view –
hole
SYSSET
