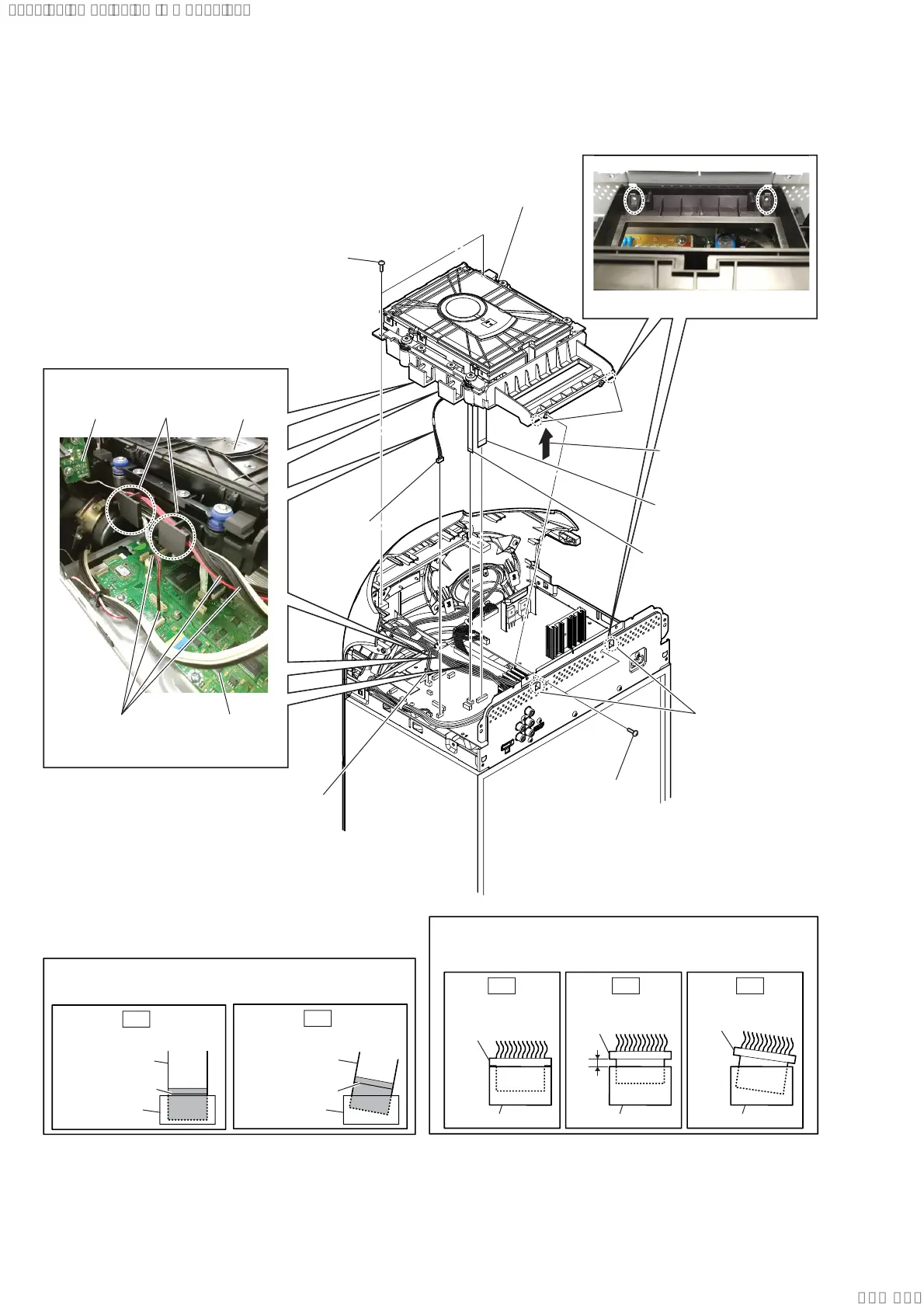

2-5. CDM SECTION
1 CN127 (3P)
3 CN402
(4P)
4 flexible flat cable
(5 core) (CN303)
5 flexible flat cable
(24 core) (CN302)
8 Remove the
CDM section in the
direction of the arrow.
9 CDM section
hole
hook
6 two screws
(+BVTP 3 u 8)
7 two screws
(+BVTP 3 u 8)
Note 3: When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Note 1: When installing the back panel
section, align two hooks and two
holes.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
Note 2: When installing the flexible flat cable, ensure that
the colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
flexible flat cable flexible flat cable
connectorconnector
OK
NG
OK NG NG
– Front view –
CDM section
:LUHVHWWLQJ
2 Remove the wires
from the hook.
hook
IR board
MOTHERBOARD
board
SYSSET
