Sony MVS-6500 System - Assigning Output Signals; Setting Monitor Outputs

23
Assigning Output Signals
Preparation
Assigning Output Signals
You can set the signals output to the connected devices on
the OUTPUTS of the switcher processor.
Setting Monitor Outputs
This section describes the procedure for setting up
monitors for checking final program output video
(program output) and for checking preview video (preview
output).
1 Display the menu.
a Open the Engineering Setup >Switcher >Output
menu (7333).
b Press [Output Assign].
The Output Assign menu (7333.1) appears.
2 Set a monitor for program output.

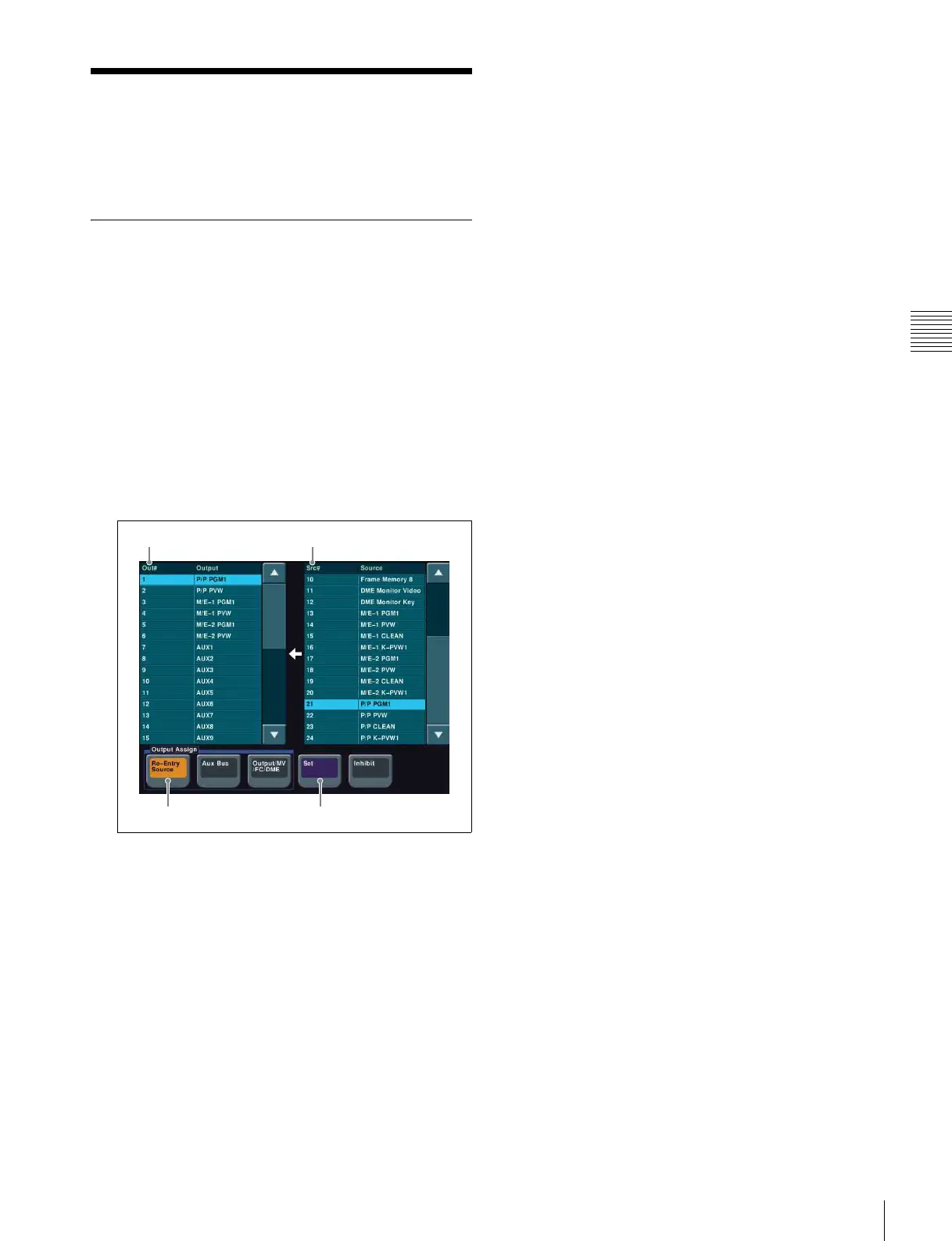

Output Assign menu
a In the <Output Assign> group, select [Re-Entry
Source].
b In the [Out#] column in the list on the left, select the
number for the OUTPUTS connector connected to
the monitor.
In this example, select “1”.
c In the [Src#] column in the list on the right, select
the program output.
In this example, select “P/P PGM1”.
d Press [Set].
The output signal is assigned, and “P/P PGM1” is
displayed for output 1 in the [Out#] column.
3 Set a monitor for preview output.
a In the <Output Assign> group, select [Re-Entry
Source].
b In the [Out#] column in the list on the left, select the
number for the OUTPUTS connector connected to
the monitor.
In this example, select “2”.
c In the [Src#] column in the list on the right, select
the preview output.
In this example, select “P/P PVW”.
d Press [Set].
The output signal is assigned, and “P/P PVW” is
displayed for output 2 in the [Out#] column.
Re-Entry Source Set
Src#Out#
