44
Video Switching (Transitions)
Basic Image Creation Operations

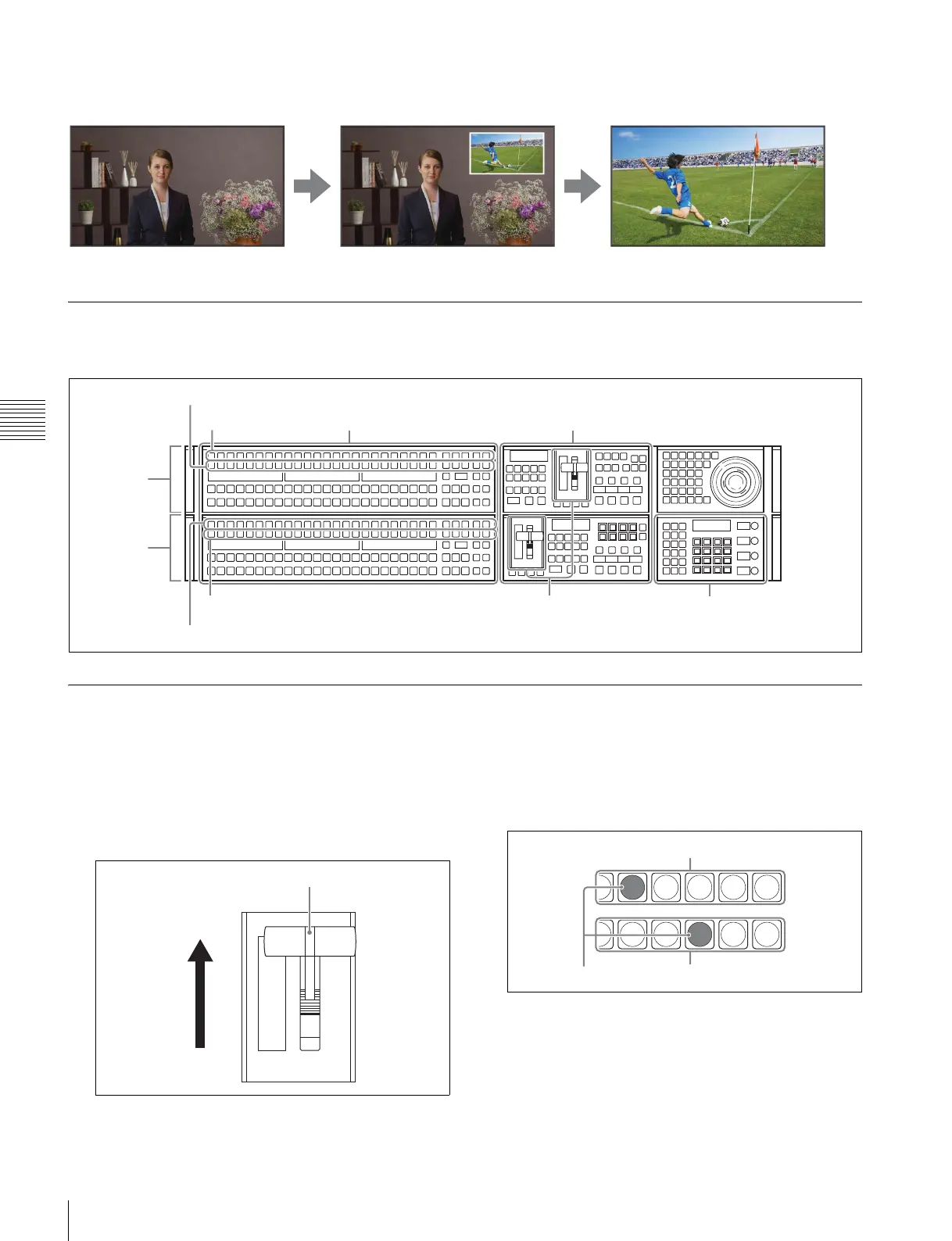

DME wipe
The video changes in a DME wipe pattern that uses image shrinking/magnification or other DME effects.
Names of Parts in the Control Panel
The positions of the principal parts and fader lever used in the following description are shown in the following figure.
Video Transitions using Cuts
In a cut, the video changes with the single press of a button.
(The following describes the M/E bank, as an example.)
1
Push the fader level up.
(The background A video is displayed on the whole
screen.)
Transition control block
2
Select the video you want to display first.
a In the background A row of the cross-point control
block, press the cross-point button assigned with
the selected video.
Cross-point control block
Background A Background B
M/E bank
PGM/PST
bank
Cross-point control block Transition control block
Fader lever Flexi Pad
2nd row
1st row
2nd row
1st row
Fader lever
Background A row
Background B rowLit buttons
