Sony MVS-6500 System - DME Wipe Settings and Snapshots

48
Saving DME Wipe Settings in a DME Wipe Snapshot
Basic Image Creation Operations
Saving DME Wipe Settings in a DME Wipe Snapshot
The optional DME board (MKS-6570) is required for DME wipes.
Setting Picture-in-Picture (DME Wipe)
Apply a border to the picture-in-picture pattern. (The
following describes the M/E bank, as an example.)
1 Press the [BKGD] next transition selection button,
turning it on (1 p. 46).
2 Press the [DME] transition type selection button,
turning it on (1 p. 46).
3 Select a DME wipe pattern.

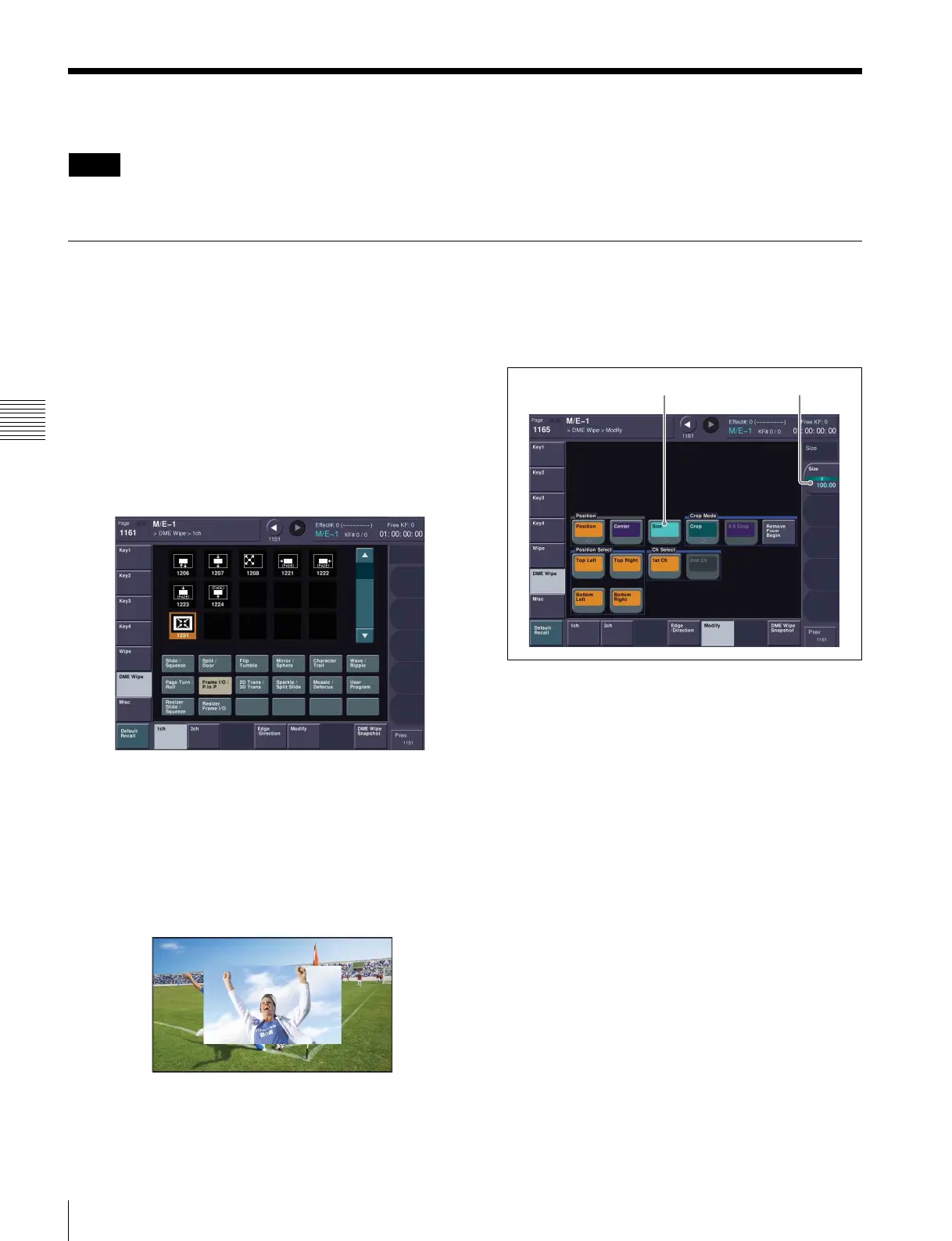

a Open the M/E-1 >DME Wipe >1ch menu (1161).
1 ch menu
b Select the DME wipe pattern group.
In this example, select [Frame I/O/P in P].
c Press the desired pattern to select it.
In this example, select “1251” (picture in picture)
pattern.
d Move the fader lever to the top to check the DME
effects video.
Before adjustment
4 Set the size of the DME wipe pattern.
a Open the M/E-1 >DME Wipe >Modify menu
(1165).
Modify menu
b Press [Size], turning it on.
c Adjust the [Size] parameter.
5 Set the position of the DME wipe pattern.
a In the <Position> group of the Modify menu, press
[Position], turning it on.
Notes
Size Size
