Sony MVS-6500 System - ICP-6511 Menu Panel Components

9
Names of Parts
Overview
ICP-6511 Menu Panel
The menu panel is optional.

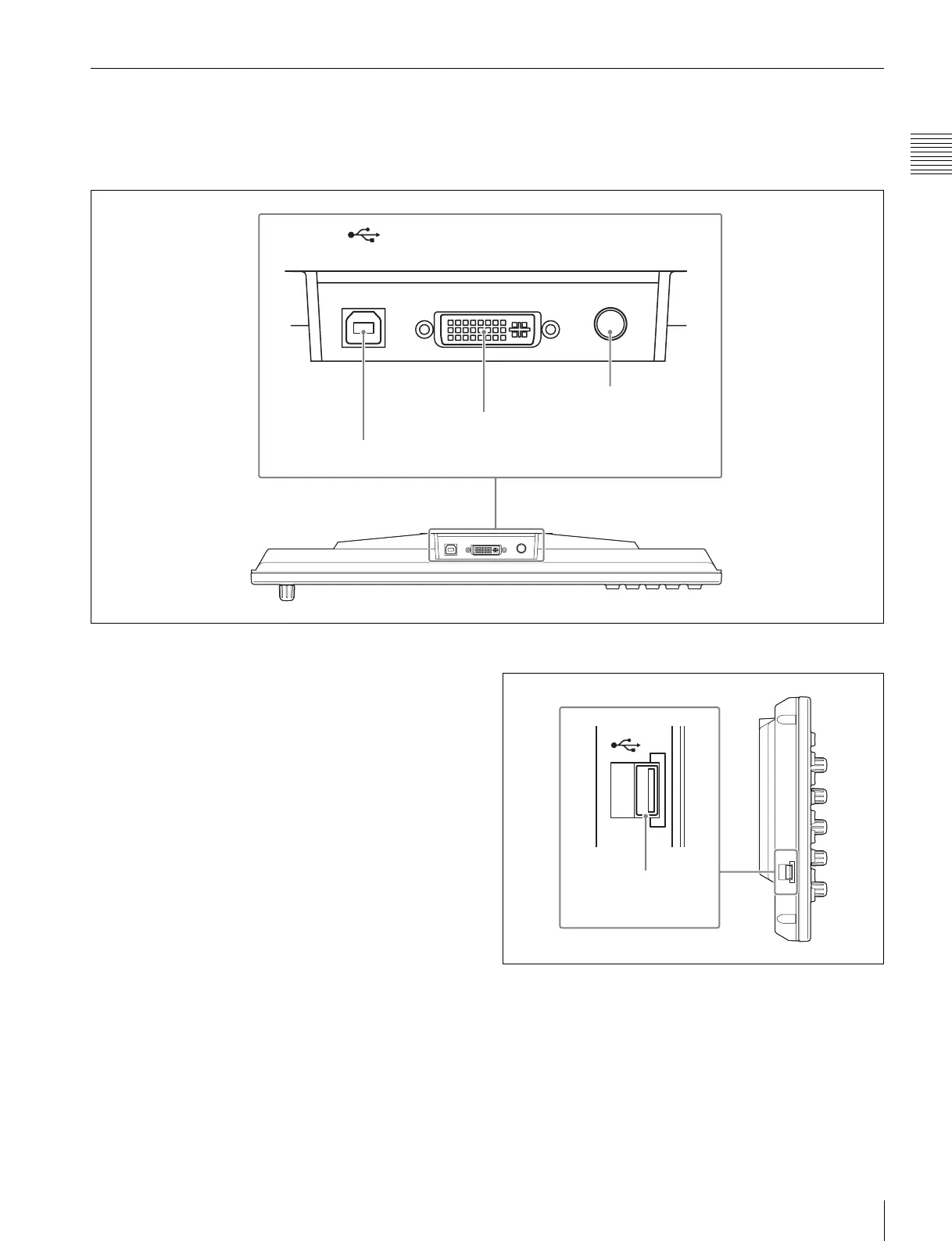

Bottom panel
a DEVICE connector (USB 2.0, USB Type-B)
Connect to the DEVICE 1 connector of the ICP-6520/
6530.
b DVI-D connector
Connect to the DVI-D output of the ICP-6520/6530.
c DC IN connector
Connect to the 12V DC connector of the supplied AC
adaptor.
Side panel
DEVICE connector (USB 2.0, USB Type-A)
In general, connect to a USB memory device, and input
and output files.
DEVICE
DVI-D
IN
12V
!
a DEVICE connector
b DVI-D connector
c DC IN connector
DEVICE connector
