Sony MXD-D4 - Exploded Views (Continued); MD Mechanism Deck Section 1 Exploded View

83

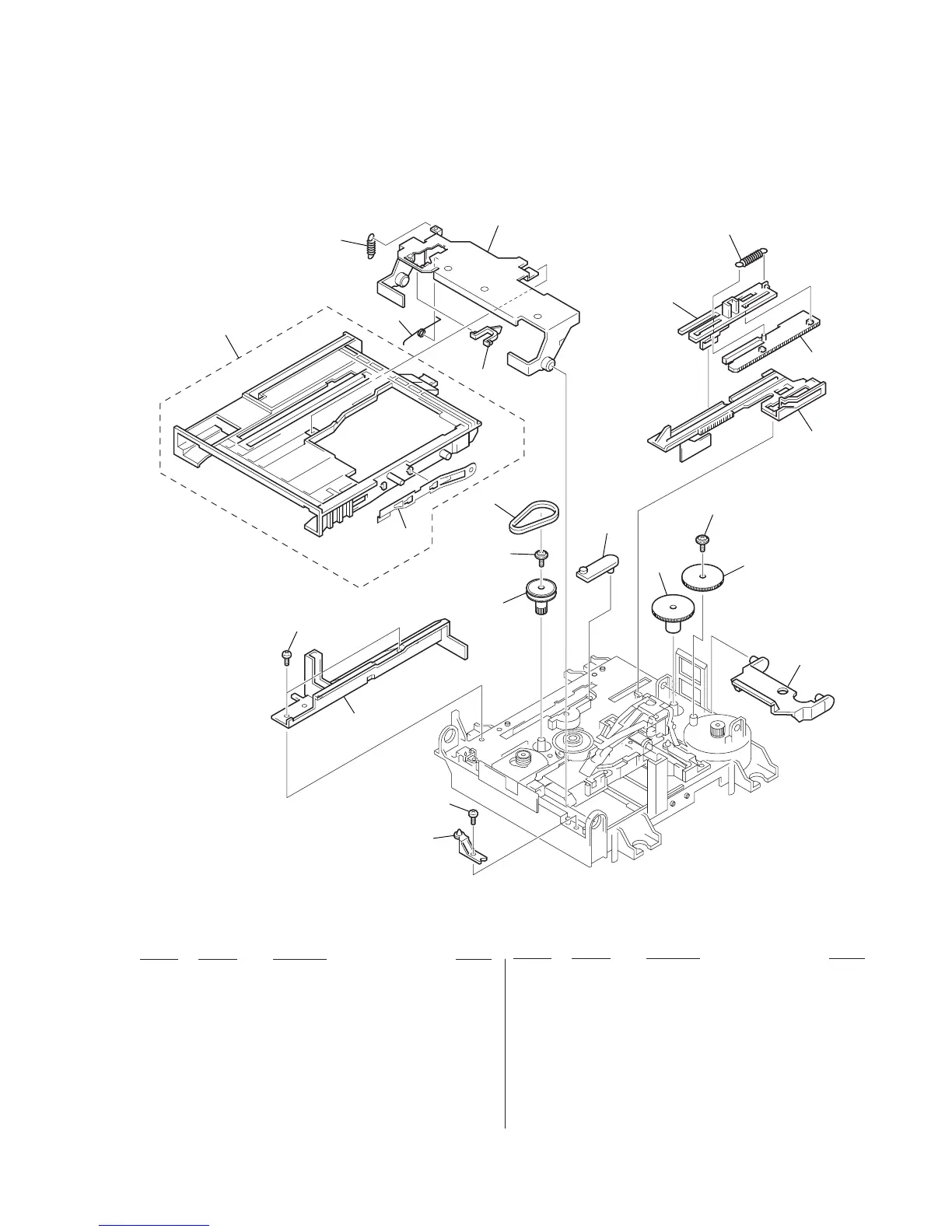

(4) MD MECHANISM DECK SECTION-1
(MDM-7X2A)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 301 4-996-267-01 BASE (BU-D)
302 4-908-618-21 SCREW (+BTP) (2X6)
303 4-227-007-01 GEAR (SB)
304 4-227-025-01 BELT (LOADING)
305 3-372-761-01 SCREW (M1.7), TAPPING
306 4-227-002-01 GEAR, PULLEY
307 4-226-999-01 LEVER (HEAD)
308 X-4952-665-1 SPRING (SHT) ASSY, LEAF
309 4-228-923-01 LOCK (HOLDER)
310 4-229-533-02 SPRING (STOPPER), TORSION
311 4-227-012-01 SPRING (HOLDER), TENSION
312 4-227-019-02 PLATE (HOLDER), RETAINER
313 4-227-013-01 SPRING (EJ), TENSION
314 4-226-995-01 SLIDER (EJ)
315 4-226-996-01 LIMITER (EJ)
316 4-226-997-01 SLIDER
317 4-226-998-01 LEVER (CHG)
318 4-227-006-01 GEAR (SA)
319 A-4672-973-A HOLDER ASSY
320 4-226-994-01 GUIDE (L)
304
305
306
302
301
307
305
320
302
311
319
312
310
309
314
313
315
316
318
303
317
308
