84
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
351 A-4725-430-A BD (MD) BOARD, COMPLETE
352 4-908-618-21 SCREW (+BTP) (2X6)
353 3-372-761-01 SCREW (M1.7), TAPPING
354 4-226-993-01 RACK
355 4-227-014-01 SPRING (RACK), COMPRESSION
356 4-226-992-01 BASE, SL
357 1-678-514-11 FLEXIBLE BOARD
0358 A-4672-976-A OPTICAL PICK-UP KMS-262A/J1N
359 4-988-560-01 SCREW (+P 1.7X6)
360 4-996-265-01 SHAFT, MAIN
361 4-226-989-01 CHASSIS
362 4-211-036-01 SCREW (1.7X2.5), +PWH
363 4-226-990-01 BASE (BU-A)
364 4-230-716-01 SPRING (SPDL), TORSION
365 4-227-004-01 GEAR (LC)
366 4-227-005-01 GEAR (LD)
367 4-227-008-01 GEAR (SC)
368 4-227-009-01 GEAR (SD)
HR901 1-500-670-11 HEAD, OVER WRIGHT
M101 A-4735-029-A MOTOR ASSY, SPINDLE (for MD)
M102 A-4672-900-A MOTOR ASSY, SLED (for MD)
M103 A-4672-975-A MOTOR ASSY, LOADING (for MD)
S102 1-771-957-11 SWITCH, PUSH (2 KEY)
(REFLECT RATE DETECT, PROTECT DETECT)

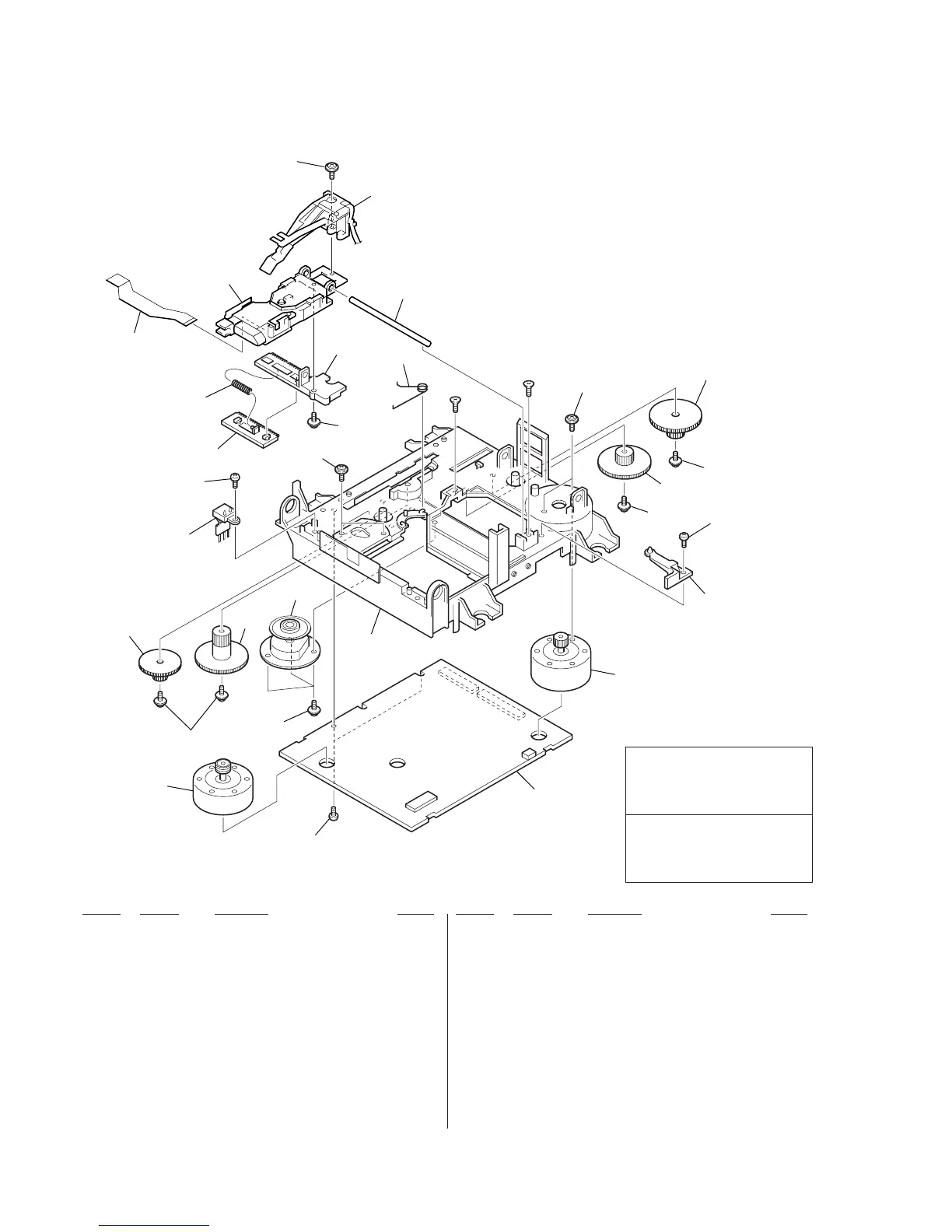

(5) MD MECHANISM DECK SECTION-2
(MDM-7X2A)
359
358
357
355
354
356
360
359
362
352
353
353
352
351
363
352
353
362
HR901
S102
M101
M103
M102
#1
#1
353
361
364
367
365
368
366
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
