Sony MZ-B10 - Case (Lower) Assy; Speaker Assy

7
MZ-B10
Note: Follow the disassembly procedure in the numerical order given.

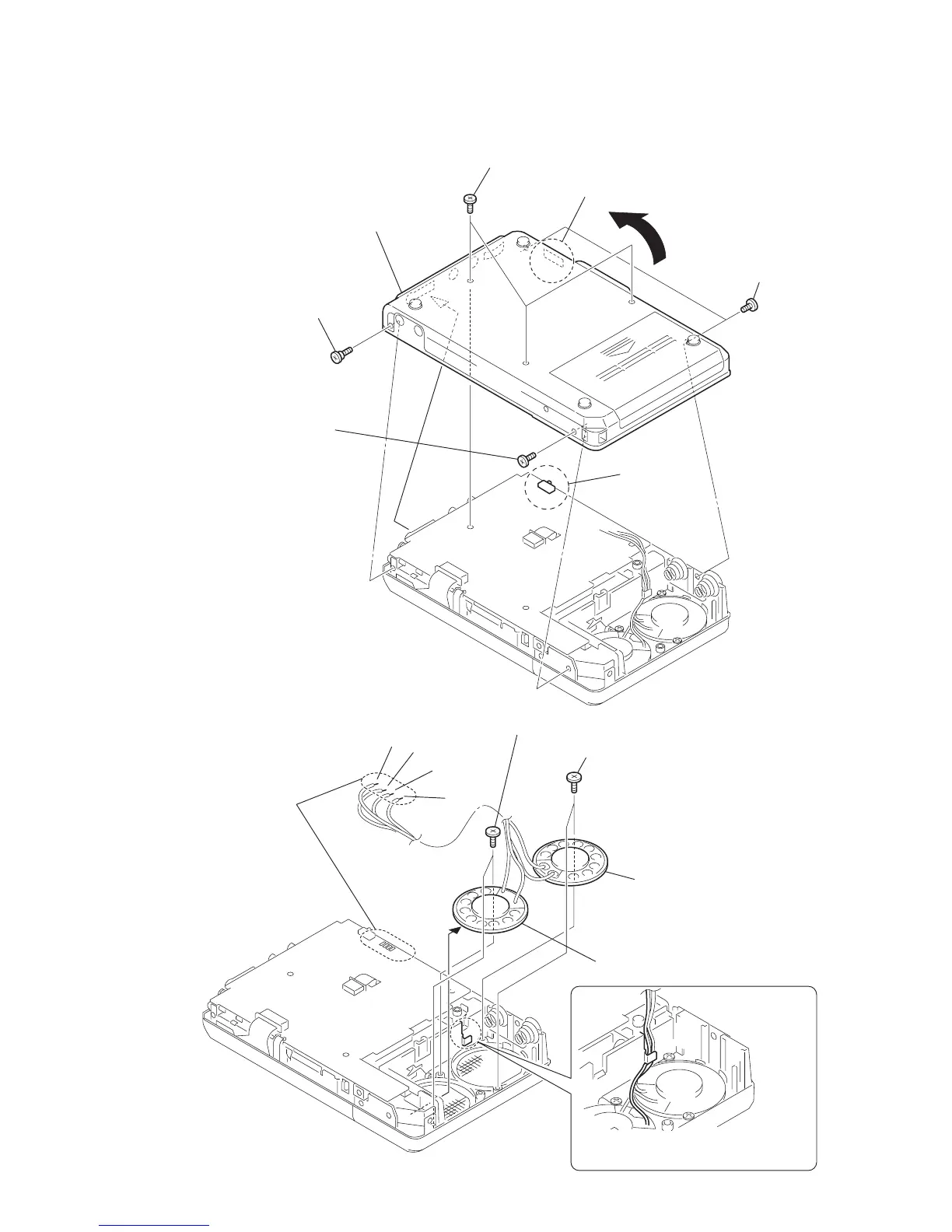

3-2. Case (Lower) Assy
3-3. Speaker Assy
4 two tapping screws (B 2.0)
2 two tapping screws (B 2.0)
blue
white
black
red
1 Remove the
four solderings
3 spk (A) assy
5 spk (B) assy
Note: On installation, lower case is made to
crawl on a speaker cable.
2 two screws
(M1.4)
1 three screws
(M1.4)
3 screw
(M1.4)
4 screw (step)
5 Remove the case (lower) in the
direction of the arrow.
Note: On installation, adjust the position of
both switch and knob (hold).
knob (hold)
switch
