14
MZ-B10

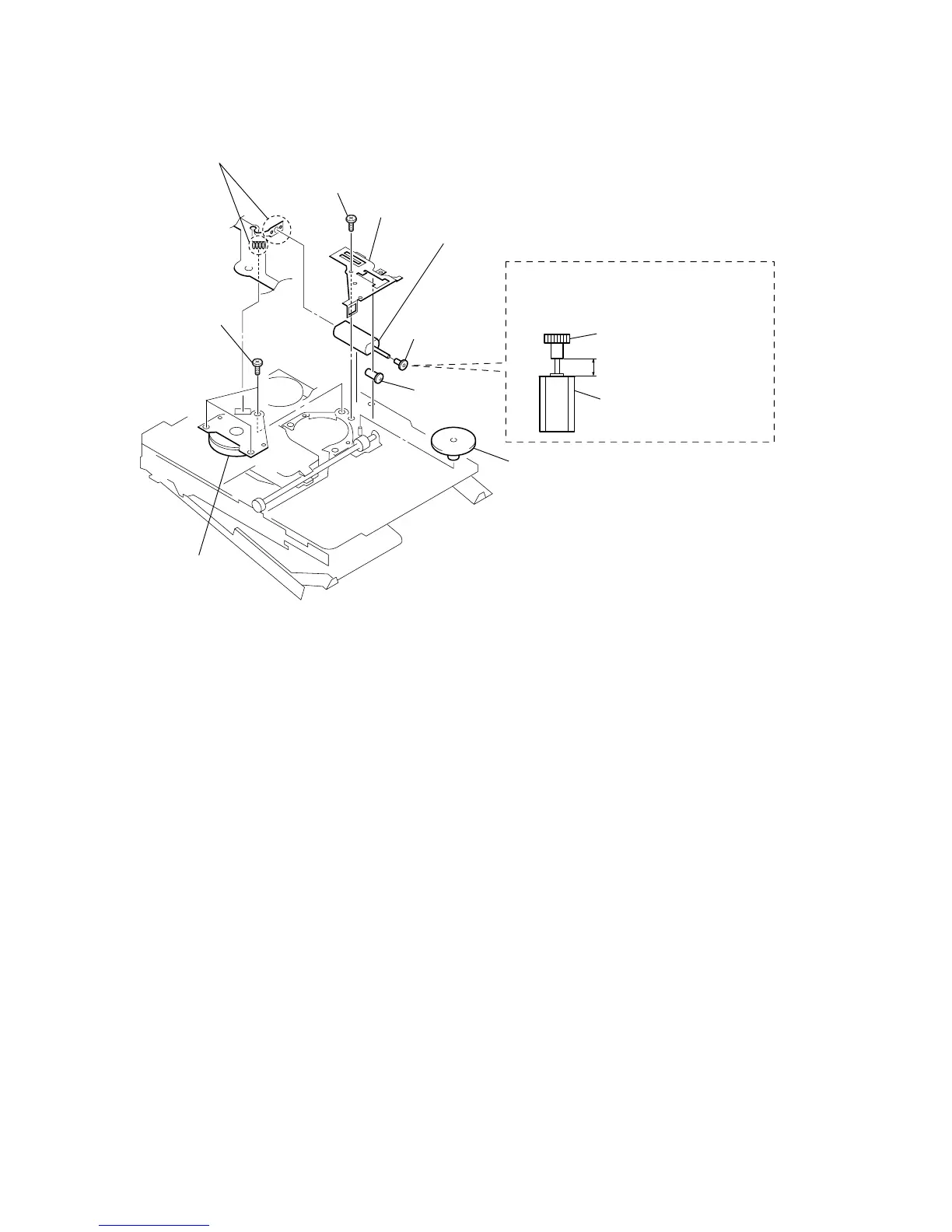

3-14. DC Motor (Over Write Head Up/Down) (M603), DC SSM18B Motor (Spindle) (M601)
9 DC SSM18B motor
(spindle) (M601)
8 three tapping screws
2 tapping screw
3 motor cover
6 gear (HA)
4 gear (HB)
5 gear (HC)
DC motor
(over write head up/down)
(M603)
3.15 mm
gear (HA)
Note: Press-fit the gear (HA) up to the position of
the DC motor (over write head up/down)
(M603) as shown below.
7 DC motor (over write head up/down)
(M603)
1 Remove six solders of the
motor flexible board.
