8
MZ-B10

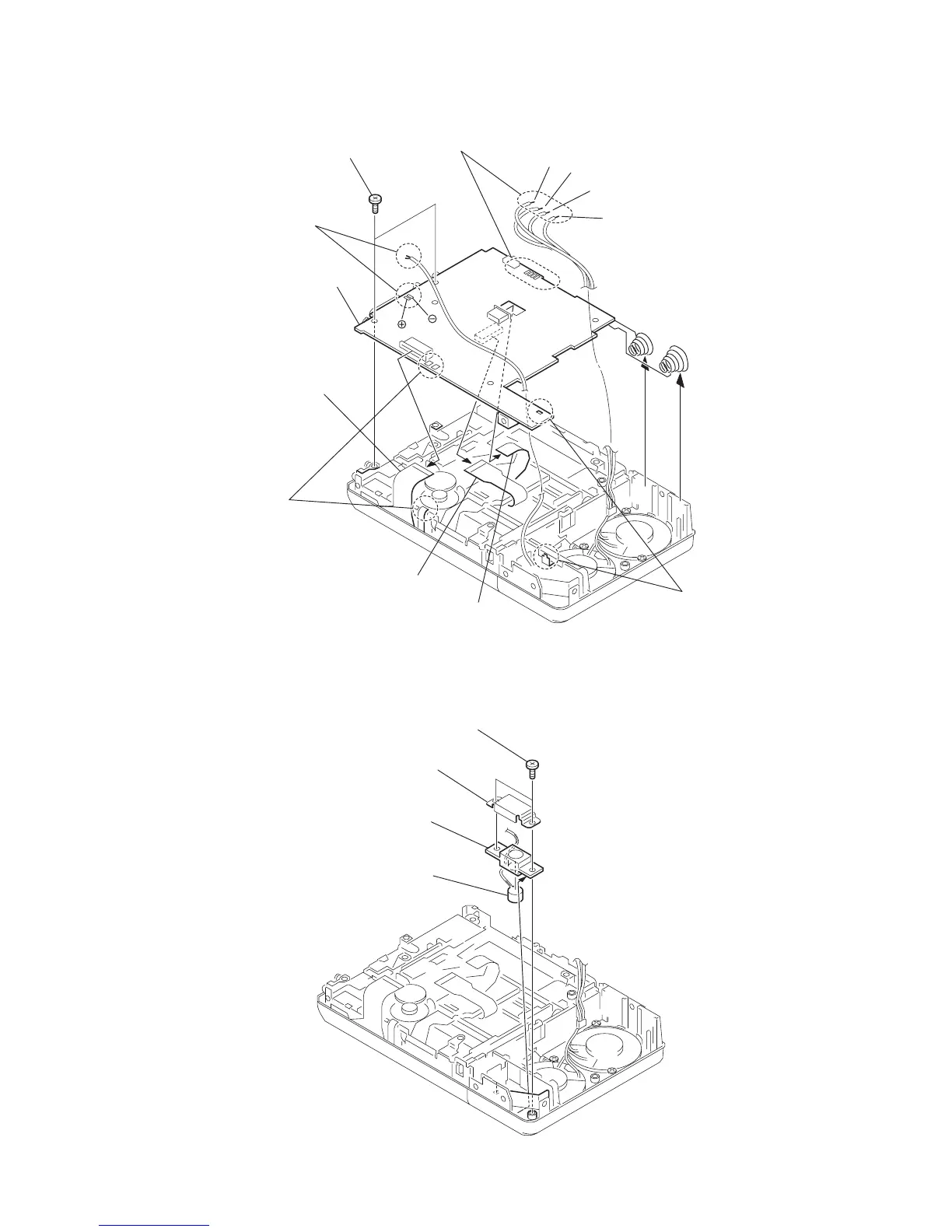

3-5. Electret Condenser Microphone (MIC901)
3-4. MAIN Board
7
two screws (M 1.4)
9
MAIN board
blue
white
black
red
1
Remove the
four solderings
2
Remove the
two solderings
4
Remove the
soldering
8
flexible board (optical pick-up)
(CN501)
6
flexible board (motor)
(CN701)
5
flexible board
(CN801)
3
Remove two solders of the
flexible board (over write head).
1
two tapping screws (M 1.7 x 3)
2
retainer plate (mic)
3
cushion (microphone)
4
electret condenser microphone (MIC901)
To Next Page
